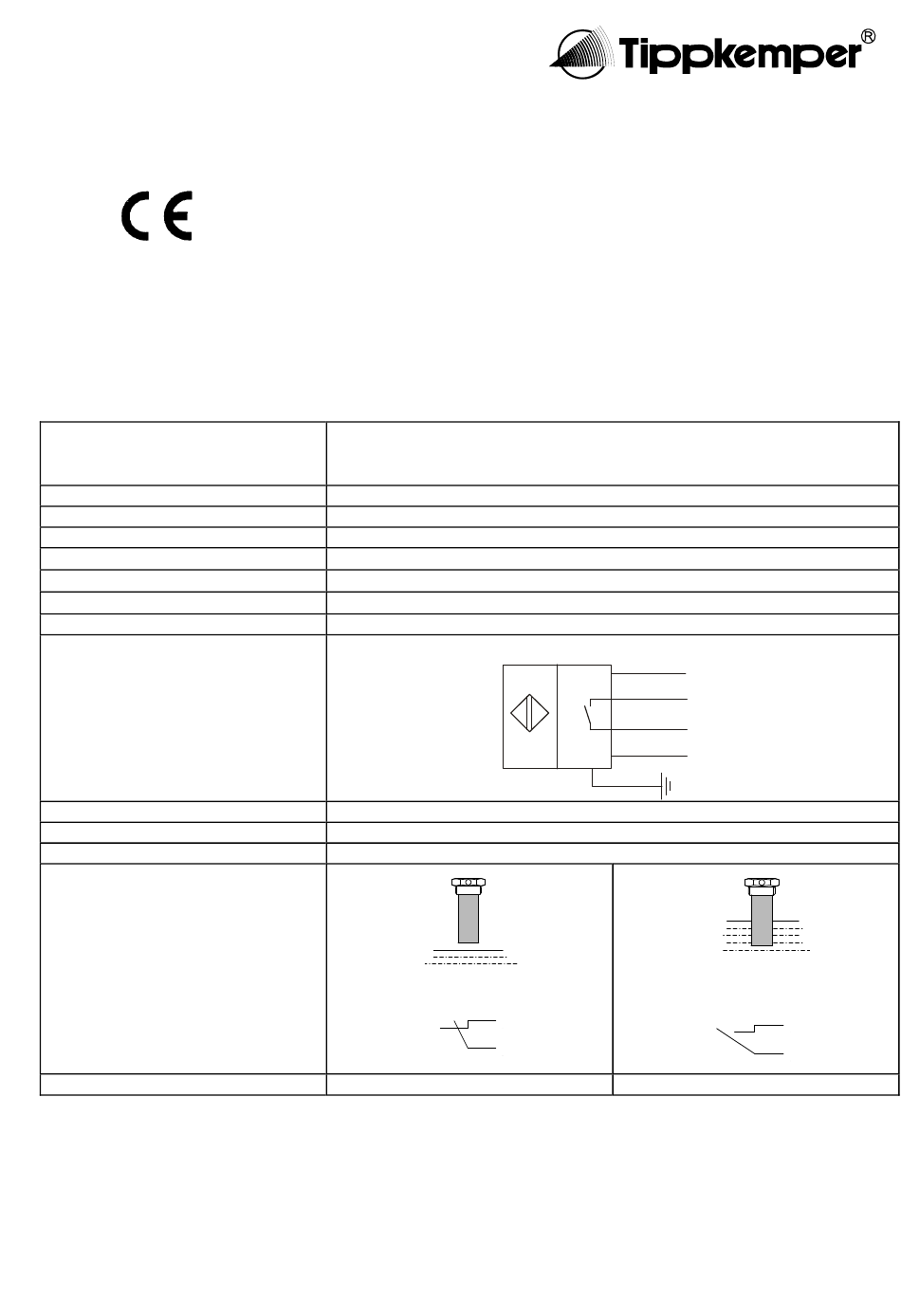

Tippkemper CNS-506D Operating Manual

Technical data sensor amplifier
Connectable probes
Operating voltage (U )
B
Nominal current (I )
0
Frequency of operating cycles f
Output voltage
Output current
Connecting cables
Pin arrangement
BN - brown
GN - green
YE - yellow
WH - white
Screen and enclosure - ground
Enclosure material
Permitted ambient temperature
Enclosure rating EN 60529
Output
LED-display

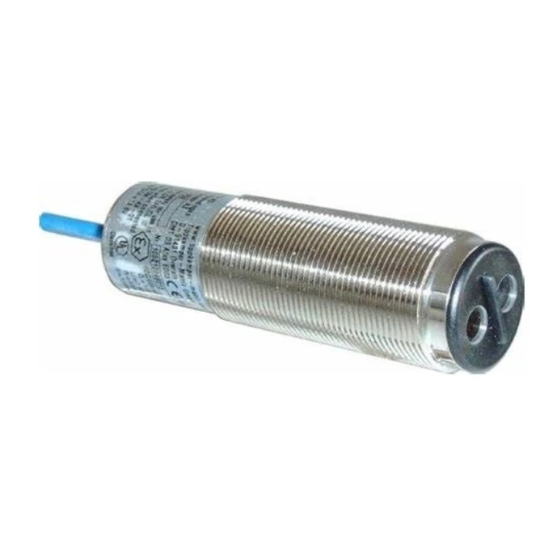

Capacitance Level Sensor
CNS-506D
Level control for:
•
waxes
•
granulates
•
paints
•
hot-melt adhesives
•
chemicals
Type CNS-506D
Type row: S...
15-30V/DC
30 mA
≤ 0.5 Hz
≤ 60V/DC
≤ 200 mA
4 X 0,25 mm² + screen / L = 5 m
Aluminium
+10°C... +50°C
IP 65
red LED on
BN
GN
YE
WH
SCREEN
C
NO
green LED on
L+
L-
C
NO
