KS-steering system Pro with KS-footrest
KS-steering system Pro with KS-footrest (code: 724210)

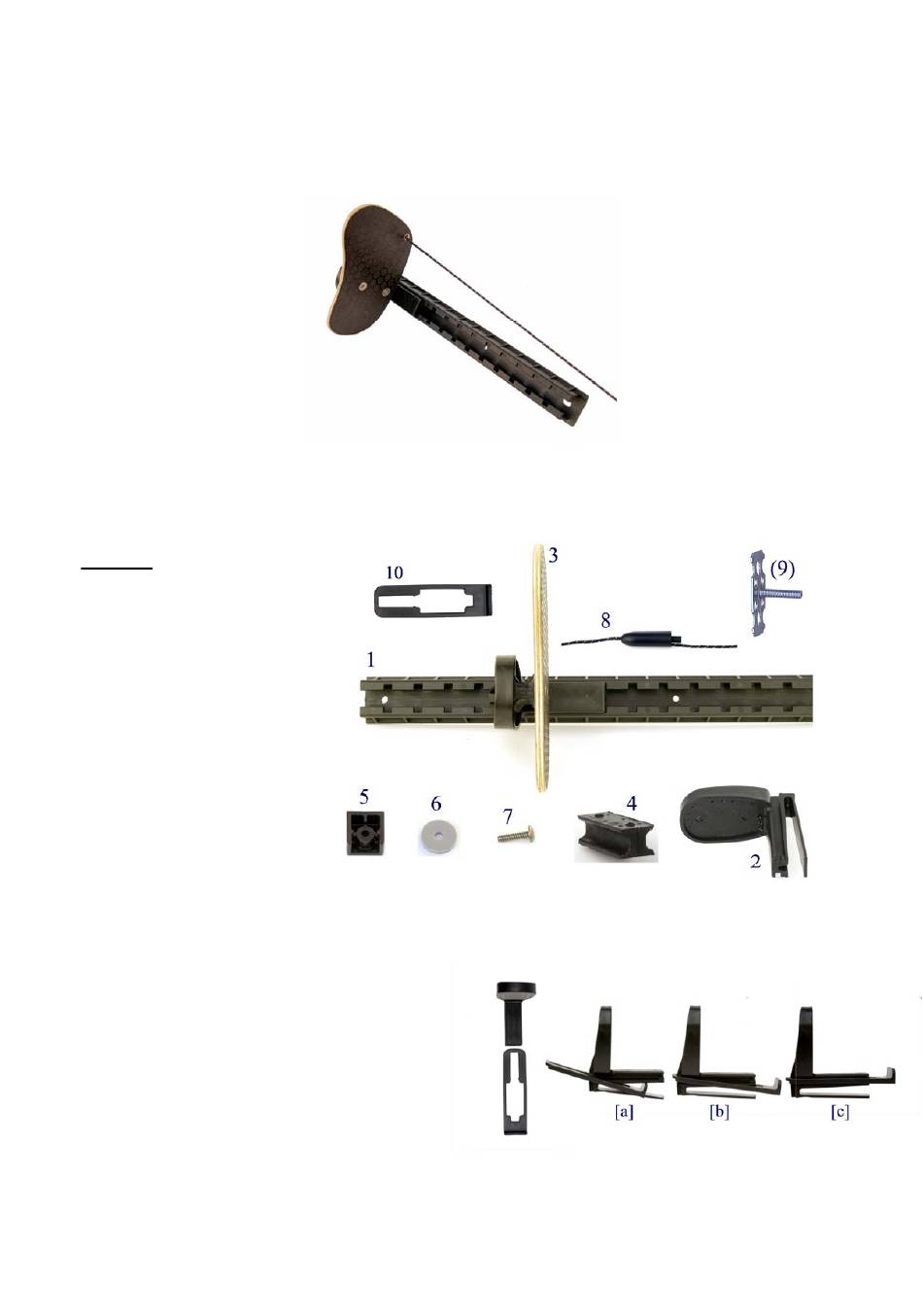

Part list:
1. Rail (2 pcs)
2. Plastic pedal (2 pcs)
3. Wooden steering pedal (2 pcs)
4. Rubber pivot Pro (2 pcs)
5. Rail end (4 pcs)
6. Foam washer (4 pcs)
7. Screw (4 pcs)
8. Fine adjustment piece(2 pcs)
9. Fastener for footrest (optional)
10. Pedal lock for footrest (2 pcs)
Assembling the pedal lock (part number 10) to the pedal (part number 2):
(a) Slide the hinge mechanism plate of the
pedal inside the pedal lock part. Push it
further, so that the pedal lock can turn
over the pedal hinge mechanism (like
in picture [a] )
(b) Pull the pedal lock backwards so that
the front end of the pedal lock will stay
on the track in the pedal. Pull it
backwards until the end of the inside hole in pedal lock faces the pedal front edge (like in
picture [b] )
(c) Then move the back of the pedal lock within same level with the front end and push it in the
same track where the front end already is. (like in picture [c] )
Instructions for assembling the
Advertisement
Table of Contents
Related Manuals for Kajak Sport KS-steering system Pro
Summary of Contents for Kajak Sport KS-steering system Pro
- Page 1 Instructions for assembling the KS-steering system Pro with KS-footrest KS-steering system Pro with KS-footrest (code: 724210) Part list: 1. Rail (2 pcs) 2. Plastic pedal (2 pcs) 3. Wooden steering pedal (2 pcs) 4. Rubber pivot Pro (2 pcs) 5. Rail end (4 pcs) 6.
- Page 2 Pedal lock use and function: (a) Pedal lock is in “open” position you are able to move pedal adapter part and adjust the distance of the footrest. (like in picture [a1] & [a2] (b) Pedal lock is in “locked” position. While pedal lock is closed you are not able to adjust the footrest which gives more security on paddling.
- Page 3 The function of the steering pedal with the rubber pivot: KS-steering system with KS-footrest gives you a superb support during the paddling which is the basis for effective and active paddling. The rubber pivot enables the correct bending of the KS- wooden footplate.
- Page 4 Bringing the pedals backwards: 1. Place your foot behind the pedal 2. Pull the pedal backwards as much as needed. The pedal in unlocked while pulling. 3. The pedal is locked automatically when the foot is taken off.
