Summary of Contents for Weinmann MANUVAC

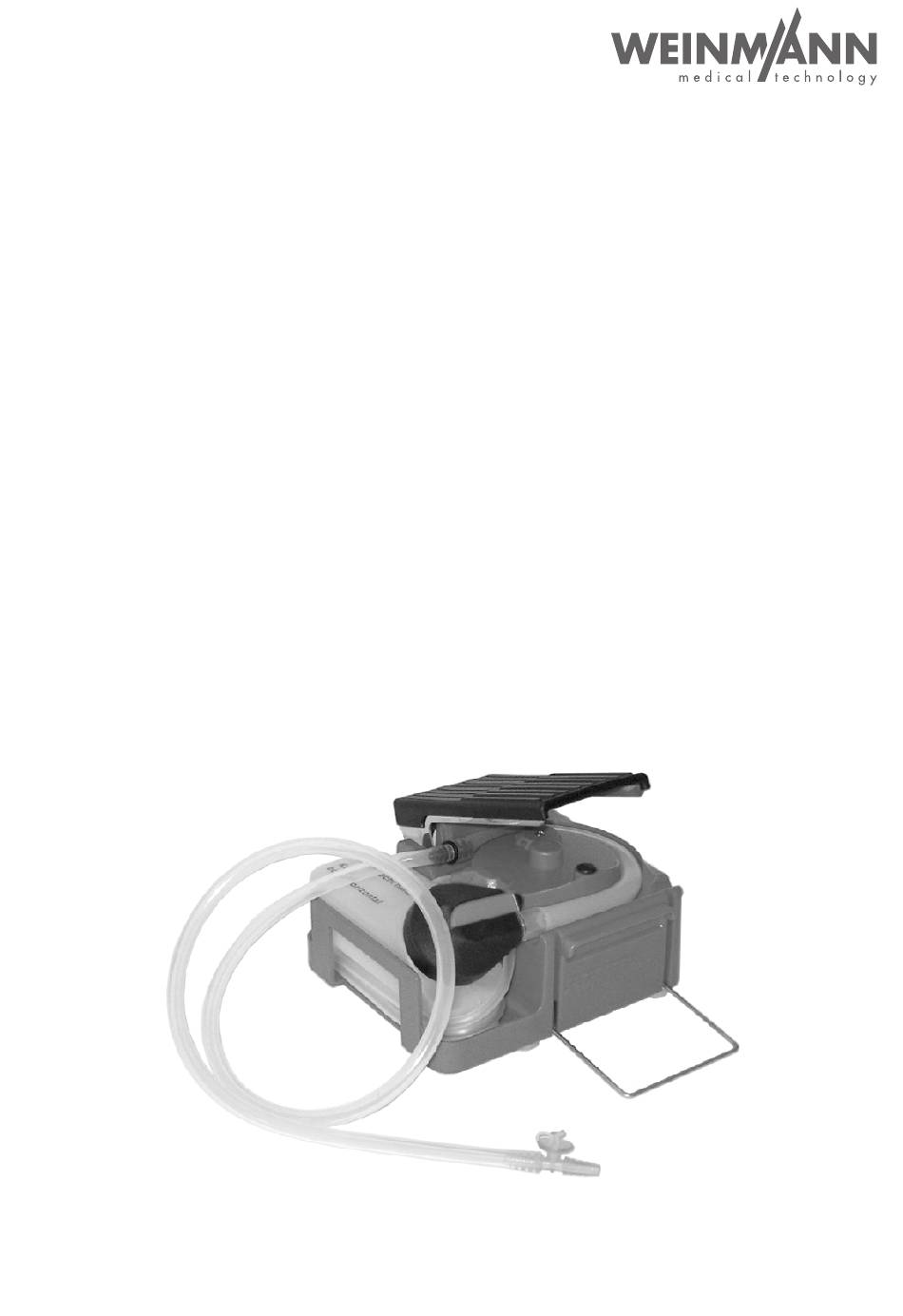

- Page 1 MANUVAC Suction Pump Description and instructions for use...
-
Page 2: Table Of Contents
Contents 1. Overview ......3 1.1 Special symbols on the device ... . 4 2. -
Page 3: Overview
1. Overview 10 Grip bar 9 Housing groove for suction hose 8 Discharge valve 7 Pedal 6 Suction valve 5 Holding clip for secretion bottle 4 Connecting hose 3 Angled hose connection 2 Secretion cap with overflow protection and vent flap 1 Secretion bottle 11 Suction pump 12 Retaining... -
Page 4: Special Symbols On The Device
1.1 Special symbols on the device Symbol Meaning MANUVAC device information plate Serial number of device Year of manufacture CE marking Overview... -
Page 5: Description
The MANUVAC aspirator is a vacuum pump, inde- pendent of an energy source, which can be operated manually or with the foot or knee. The MANUVAC aspirator is a vacuum device for use outdoors, used in medical technology, especially emergency medicine, to aspirate significant accumu- lations of blood, mucus, saliva etc. -
Page 6: Safety Instructions
Any use of the appliance is subject to detailed knowledge and consideration of these Operat- ing Instructions. • MANUVAC must be used for the intended use only (see "2.1 Intended use" on page 5). • Observe the section “5. Hygienic preparation”... - Page 7 • MANUVAC may only be used by trained staff in- structed in aspiration techniques. Incorrect use can cause serious bodily harm. • During the aspiration process, take particular care not to cause injuries to the patient’s mouth or throat, e.g.
-
Page 8: Use
4. Use The MANUVAC vacuum pump is supplied fully as- sembled and is quickly and easily put into use. 4.1 Putting into operation 1. Place the vacuum pump on a strong, steady base. The red vent flap must be closed. -
Page 9: Aspiration
(1st stage) with the adapter from the thick suc- tion hose (2nd stage). • To bridge a distance between the MANUVAC vacuum pump and the patient via the thick suc- tion hose (2nd stage), the secretion bottle can be removed from the clip. The connecting hose does not affect the suction capacity. - Page 10 • The red vent flap should always be open (Fig.8) during direct aspiration with the thick hose (2nd stage). The suction is built up by closing the vent duct with the index finger and can also be regu- lated by opening and closing this duct. •...
-
Page 11: After Aspiration
4.3 After aspiration 1. After completing the aspiration, empty the se- cretion bottle and rinse it, together with the se- cretion cap and the suction hoses with clear water on the spot. 2. Then replace the secretion cap so that the trian- gular mark points to the upper middle line of the secretion bottle, then fit the hoses together. -
Page 12: Hygienic Preparation
After every aspiration process, hygienic preparation of the MANUVAC aspiration pump and the accesso- ries used is essential. We recommend immediate cleaning with clear water (on the spot if possible). - Page 13 ® cial disinfectant solution (gigasept FF (new)) as fol- lows: 1. Remove the connecting hose with angled hose connection from the secretion cap and suspend it in a disinfectant solution. 2. Operate the pedal until the disinfectant solution emerges from the discharge valve. 3.
-
Page 14: Functional Check
6. Functional check To guarantee satisfactory operation of the MANUVAC vacuum pump, the function must be checked every time the pump is disinfected and sterilised. Procedure: • Ensure that the hose connections are tight. • Check that the hoses and rubber parts are in good condition. -
Page 15: Troubleshooting
If the fault cannot be remedied, it is advisable to con- tact the manufacturer WEINMANN Emergency or re- turn the set to the works for overhaul. Do not continue to use the vacuum pump since this could lead to serious damage. -
Page 16: Maintenance
8. Maintenance 8.1 Intervals The MANUVAC vacuum pump requires no mainte- nance other than observation of the cleaning and function instructions. However, the disk diaphragm should be examined every 2 years. Procedure: • Unscrew the four support feet and remove the base plate, so that the disk diaphragm can be seen. -
Page 17: Disposal
WEINMANN Emergency. Note: If you send in obviously contaminated parts, these will be disposed of by WEINMANN Emergency or by specialist staff expressly so authorized by WEINMANN Emergency at your expense. 8.3 Disposal Do not dispose of the unit with domestic waste. To dispose of the unit properly, please contact a li- censed, certified electronic scrap disposal merchant. -
Page 18: Product And Accessories
• Fr 06, Ø 2 mm • Fr 10, Ø 3 mm • Fr 12, Ø 4 mm 9.3 Spare parts Suction hose set for the MANUVAC WM 15116 Secretion bottle WM 10821 Secretion cap, complete WM 10822 Secretion cap... - Page 19 Hose, silicone, diam. 6/10 mm, length 1020 mm WM 10801 Hose, steramide, diam. 4/7 mm, length 740 5776 Hose, silicone, diam.10/15mm, length 280 mm 2201 Adapter, n. d.10 4627 Angled hose connection 2252 Secretion socket with fingertip control WM 2251 Adapter, n.
-
Page 20: Technical Data
10. Technical Data MANUVAC Appliance class 93/42/EEC Dimensions (WxHxD) in mm 205x105x175 Weight approx. 1.4 kg Suction volume 160 ml/stroke Max. negative pressure –700 mbar Volume of secretion bottle 370 ml Temperature range – Operation –18 °C to +50 °C –... -
Page 21: Warranty
11. Warranty WEINMANN Emergency gives the customer a limited manufacturer warranty on new original WEINMANN Emergency products and any replacement part fitted by WEINMANN Emergency in accordance with the warranty conditions applicable to the product in question and in accordance with the warranty periods from date of purchase as listed below. - Page 24 Manufacturer Center for Production, Logistics, Service WEINMANN Emergency WEINMANN Emergency Medical Technology GmbH + Co. KG Medical Technology GmbH + Co. KG Frohbösestraße 12 Siebenstücken 14 22525 Hamburg 24558 Henstedt-Ulzburg GERMANY GERMANY T: +49 40 88 18 96-120 E: customerservice@weinmann-emt.de...
