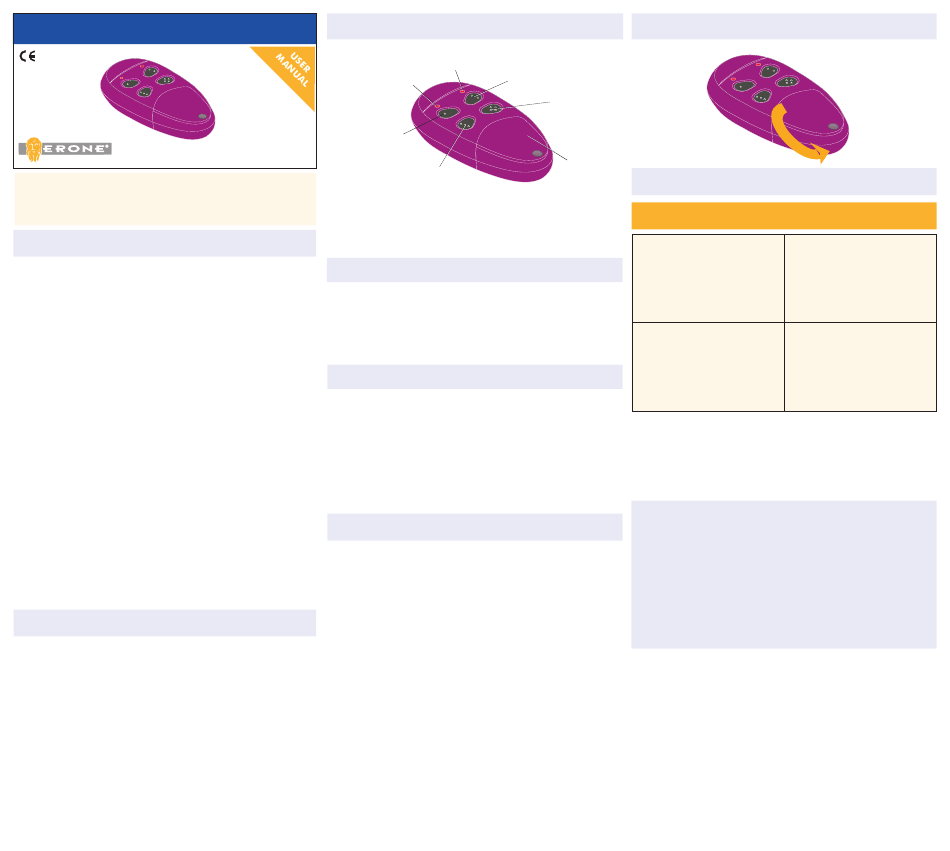

ERONE DS433
T H E S M A R T L I V I N G
Thank you for choosing a product Erone.You are
recommended to read carefully this manual before using
the product.
1 - DESCRIPTION
The radiocontrol ERONE DS433 has been designed for the
control of automatic closing systems and anti-burglar
systems. The operating frequency is among the European
harmonised frequencies. The receiver which makes the
activation, once received the transmitter code, has to be
connected during the installation to the device to control (
gate, garage door, rolling shutters, awnings, anti-burglar
appliances, lighting ). The transmitter security code is
obtained by means of a 9 ways three-state dip-switch
which allows up to 19683 code combinations. All the
receivers of the range Erone DS433 can store into the
EEPROM the code of many transmitters. Each transmitter (
or its different keys ) can be stored into different receivers
and hence can do more functions.
In order to use the unused keys of the transmitter it is
enough to connect the dedicated receiver to the
mechanism to drive ( i.e. electrolock of a pedestrian gate, a
buzzer, etc. ) and proceede to store the keys on its memory.
Hereby, CDVI Wireless Spa, declares that the radio
equipment type SETDS39433E2/E4 is in compliance with
directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
www.erone.com.
2 - TECHNICAL SPECIFICATIONS
Number of keys
:
Supply :
Battery duration:
from 12 to 24 months
Battery type:
Current consumption :
Operating frequency :
Security code combinations number:
Modulation:
E.r.p. :
Range in open space :
Operating temperature :
from -10 °C to +55 °C
Dimensions :
Weight :
3 - EXTERNAL CHARACTERISTICS
RED LED
BUTTON 1
CHANNEL A
SETDS39433-E2
SETDS39433-E4
4 - MODEL TYPES

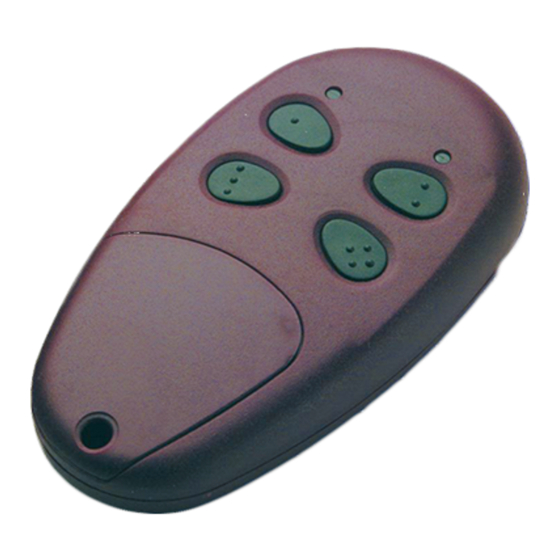

2 buttons transmitter : Cod. SETDS39433E2
4 buttons transmitter : Cod. SETDS39433E4
5 - CODING
Open the rotating door to access to the battery and the
dip-switches.The dip-position will give the security code.
Warning: Each transmitter is provided with the same code
set on the dip-switches; it highly advisable to change this
code by moving the dip-switches on the favourite position
( "+", "0" , "-").
6 - TRANSMITTER CODES MEMORISATION
The transmitter code has to be stored into the receiver
memory. The memorisation can be done by selflearning.
The instructions for this operation are reported on the
receiver installation manual. Your own installer will
perform this operation during the installation or will give
you the necessaries explications during the selling.
2 or 4
Don't forget that the still free buttons of your transmitter
12 Vdc
can be used for further wireless fuctions.
Ask your installer the best suitable receiver.
23A
25 mA
433.92 MHz
19683
AM/ASK
50 - 100 uW
from 100 to 200 m
83 x 48 x 16 mm
40 g
RED LED
BUTTON 2
CHANNEL B
BUTTON 4
CHANNEL D
BATTERY
BUTTON 3
DOOR
CHANNEL C
7 - BATTERY AND DIP-SWITCH ACCESS
8 - TROUBLESHOOTING
FAULT
The radio signal is not
verifiable
Replace the transmitter
The transmitter led
doesn't switch on
Check the power supply
The radio signal is not
of the receiver
verifiable
The transmitter led
Replace the transmitter
switches on
For further informations, please, visit the
internet site www.erone.com
GUARANTEE
The guarantee period of all Erone products is 24 months,
beginning from the manufacturer date. During this
period, if the product does not work correctly, due to a
defective component, the product will be repaired or
substituted at the discretion of the producer. The
guarantee does not cover the plastic container integrity.
After-sale service is supplied at the producer's factory.
Manufactured by CDVI Wireless Spa
Via Piave, 23 - 31020
San Pietro di Feletto (TV) - Italy
Tel.: +39/0438/450860 - Fax.: +39/0438/455628
E-Mail: info@erone.com
Web: www.erone.com
