Erone SATL2641E15 Use Manual

TX ERONE 15 CHANNELS
T H E S M A R T L I V I N G
Thank you for choosing this product .
You are recommended to read this manual carefully before
installing this product.

1 - INTRODUCTION

The transmitter ERONE SATL2641E15 is designed to drive
automatic gate systems, rolling shutters and allarm systems
thanks to its very high security coding system. (KeeLoq ®
Hopping code). The code sent by the transmitter changes at
every activation, avoiding any scanning and copying risk. A
special algorithm allows to keep synchronyzed transmitter
and receiver.

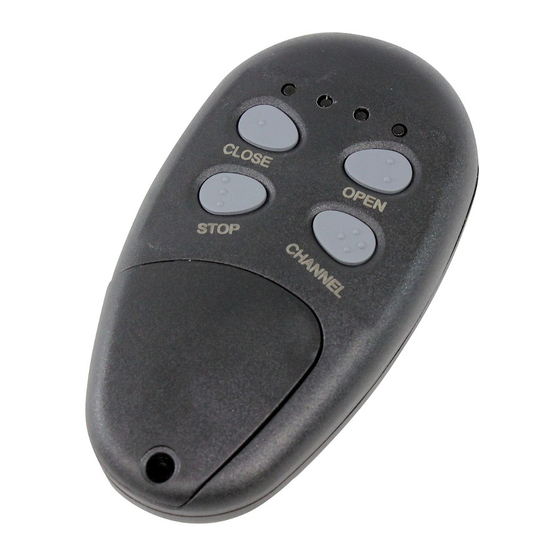

The device is equipped with 4 buttons : CLOSE, OPEN ,
STOP , CHANNEL, through which it is possible to transmit up
to 15 different commands.
The button CHANNEL selects the channel and the buttons
OPEN, CLOSE and STOP activate the radio transmission.
The security code is set-in-factory and it is composed by a
S/N, a manufacturer key and by a counter. The whole code
string is encrypted.
Each transmitter has got 5 different S/N, one for each
channel.

2 - TECHNICAL SPECIFICATIONS

Carrier frequency 433,92 MHz
Modulation AM/ASK
N° functions 15
N° Channels 5
E.r.p. 100 - 150 µW
Battery type L1028
Battery life 12 - 24 Months
Operating voltage 12 Vdc
Current consumption 25 mA
Code combinations 2exp64
Range in open space 100/200 m
Operating temperature -10°/+55°C
Dimensions (mm) 83 x 48 x 16 mm
Weight ( gr. ) 40

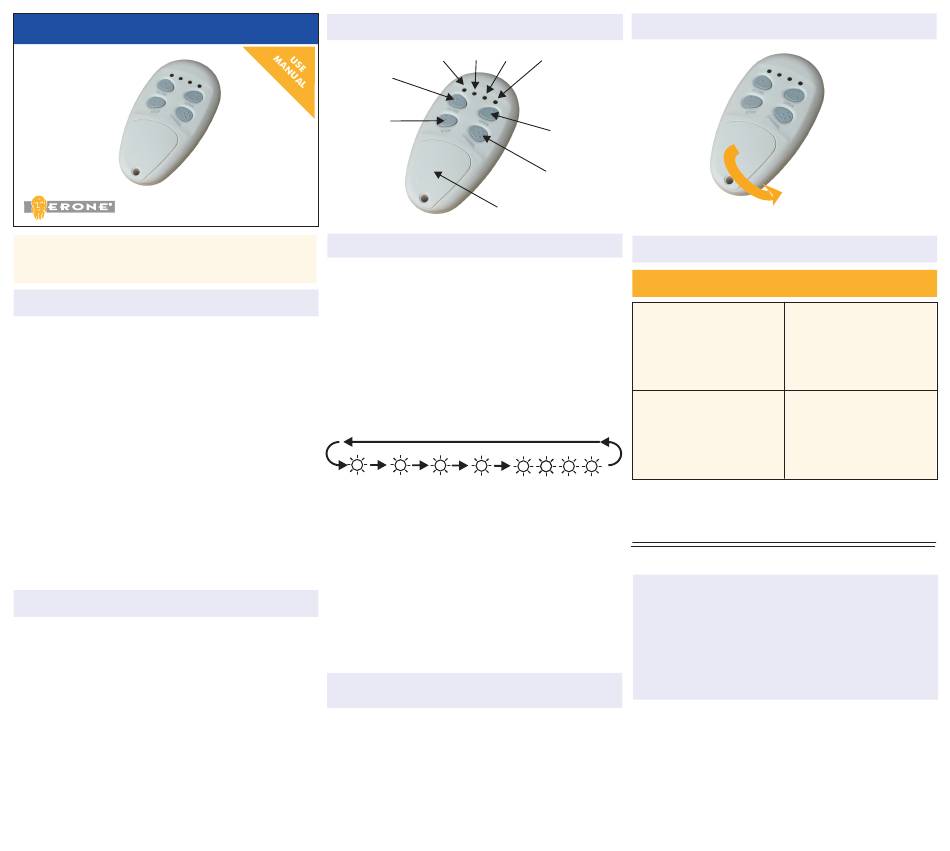

3 - PRODUCT LAYOUT

BUTTON
CLOSE
BUTTON
STOP
SATL2641E15

4 - OPERATE

If you push the buttons «Close», «Open» or Channel» the
transmitter will transmit the RF signal using the last channel
used. If you want to change the channel proceed as
follows:
A - Select the desired channel 1,2,3, 4 or 5 by pushing the
button CHANNEL. Each time you push the button the
channel changes and the corresponding led switches on.
The first led which switches on corresponds to the last used
channel.
The channel 5 is displayed with all the 4 led on.
L1
L1
1
2
B - Once selected the channel, push the button OPEN,
CLOSE or STOP to start the transmission.
During the transmission the led or the leds will blink.
After the channel selection if no button is pressed within 5
sec, the led will switch off.
At the end of the transmission the led will switch off.
An internal timer limits the duration of the transmission to
25 sec. A new transmission can be effected only after
releasing the button and pressing it again.
5 - MEMORIZING THE TRANSMITTER
ON THE RECEIVER
The transmitter has to be memorised onto the
corresponding receiver.
The receiver compatible must belong to the series :
ERONE SEL2641R433XX
The memorization can be carried out in self-learning.
The procedure to be followed for the memorization is
written in the receiver manual.
L1 L2 L3 L4
BUTTON
OPEN
BUTTON
CHANNEL
BATTERY
DOOR
L1 L1 L1+L2+L3+L4
3 4 5

6 - BATTERY ACCESS

Battery : L1028 / 12V

7 - TROUBLESHOOTING

PROBLEM
The receiver doesn't
activate
Replace the transmitter
The leds of the
transmitter don't switch on
The receiver doesn't
activate
Check the power supply
The leds of the
transmitter are
regularly on
For any further information visit the
site internet www.erone.com

WARRANTY

The guarantee period of all Erone products is 24 months,
beginning from the manufacturer date. During this period, if the
product does not work correctly, due to a defective component, the
product will be repaired or substituted at the discretion of the
producer. The guarantee does not cover the plastic enclosure
integrity. After-sale service is supplied at the producer's factory.
Manufactured by ELPRO INNOTEK S.p.A. - CDVI Group
Via Piave, 23 -
31020 S.Pietro di Feletto (TV)
ITALY
Tel: +39-0438-450860 - Fax: +39-0438-455628
e-mail: info@erone.com
web: www.erone.com
IS-TLE15ERUK Rev. 0 del 28/01/2011
SOLUTION
battery
of the receiver
