Summary of Contents for Firefly X

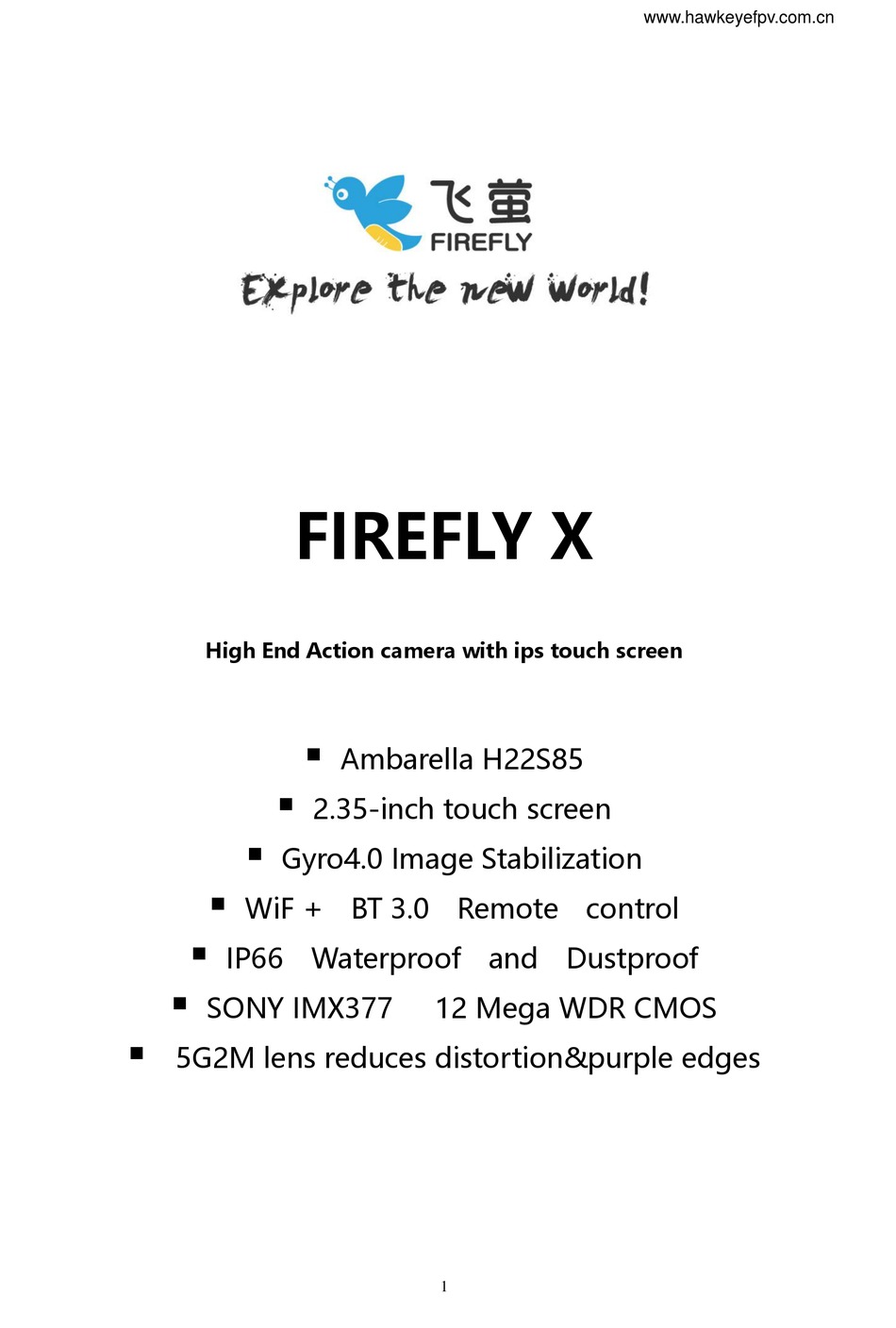

- Page 1 FIREFLY X High End Action camera with ips touch screen Ambarella H22S85 2.35-inch touch screen Gyro4.0 Image Stabilization WiF + BT 3.0 Remote control IP66 Waterproof and Dustproof SONY IMX377 12 Mega WDR CMOS ...
- Page 2 www.hawkeyefpv.com.cn Ver1 .3...
-
Page 3: Table Of Contents
www.hawkeyefpv.com.cn Contents Safety Guidelines： ......................4 Features ： ........................5 Button Functions ......................7 Video settings: ......................... 7 Photo settings: ......................11 System Setup settings: ....................12 Wi-Fi : ..........................16 Battery Charging: ......................16 Transferring Files: ......................16 External Microphone: ....................17... -
Page 4: Safety Guidelines
6.While charging , keep the product out of children’s reach. Power cable may casuse children accidental suffocation or electric shock. 7.Use orignal Firfly X’s batteries, to make sure the camera work/charge properly. 8.Keep the device in cool, dry and dust-free places. -
Page 5: Features
www.hawkeyefpv.com.cn Features ： 7.1/4 inch nut. 1.Microphone sound portal. 2.OK button. 8.Battery door. 9.Touch Screen. 3.LED. 4.Power button/Mode button. 5.Lens Cap 6.Port door. - Page 6 www.hawkeyefpv.com.cn Performance and Specifications: Photo resolution 16M/14M/12M/8M/5M/3M AV output format PAL/NTSC USB Port U3(Note:Low speed sd Kind of MicroSD card supported card will cause unstable) Maximum size of 128G MicroSD card supported Wi-Fi +BT 3.0 remote control LCD screen size 2.35 inch IPS 320*240 with Camera size 67.5×45.5×34.5 MM...
-
Page 7: Button Functions
www.hawkeyefpv.com.cn Optical Parameter- Diaphragm F/2.8 ，5G2M lens Wide angle version Angle Diagonal 150 degrees Working Voltage Electric Parameter Power supply 1.5A Button Functions Name Functions Descriptions Power/Mode Turn on/off Press once, camera ON; press for 3 seconds, Button camera; select camera OFF;... - Page 8 www.hawkeyefpv.com.cn the menu options to will jump to the last option quickly Click on the 6 icons to enter the corresponding mode mode Click on the recording icon to Click on the photo icon to taking a start/stop the recording. photo.
- Page 9 www.hawkeyefpv.com.cn Timelapse Video: Touch to enter time-laps mode. To adjust time-lapse please refer to “Timelapse Video“ menu. Playback: Touch to enter Playback mode. Auto DVR: Touch to enter Car mode. In Car mode, Auto DVR and Loop recording will be turned ON. Slow Motion:Touch to enter Slow motion mode.
- Page 10 www.hawkeyefpv.com.cn Loop record: Of/1min/2min/3min/5min. If cycle recording mode is selected, the video will be cut into setting-minute segments. The earliest files will be covered when the TF card is full. (This mode is suggested to be used in vehicle monitoring.) Video stamp: Off/Date/Time/Date&Time.
-
Page 11: Photo Settings
www.hawkeyefpv.com.cn Metering: Center/Multi/Sopt. Note: different meter ways will make the footage brightness different. Timelapse Video : 0.1Sec/0.2Sec/1Sec/2Sec/5Sec/10Sec/30Sec/60Sec. Note: this function will make videos look like fast forward.Timelapse Video option is optional only in slow motion mode. Auto Low light: Of/,On. When turn this function On, camera will drop the frame rates to increase the video’s brightness.When this function turn ON, will save power consumption.This option only appears when the Gyro 4.0 option is off and the ISO is greater than MAX100. -
Page 12: System Setup Settings
www.hawkeyefpv.com.cn Logo Watermark: Off/On. this option allows you to stamp the cool logo mark on the photo. Raw photo: Off / On,when turn on, it will save a raw photo. EV Value: -2.0,-1.7,-1.3,-1.0,-0.7,-0.3,0.0,+0.3,+0.7,+1.0,+1.3,+1.7,+2.0. ISO: Auto/ 100/ 200/ 400/ 800/ 1600/ 3200/ 6400. Sharpness: Strong/ Norma/ Soft. - Page 13 www.hawkeyefpv.com.cn Quick Capture : Off /On. ON: It will capture videos when power on. Grid Display : Off /On. On:It will display the grid on the screen. TV Mode : NTSC/PAL. PAL, frame rate will be 25/50/100/200; NTSC, frame rate will be 30/60/120/240.
- Page 14 Version. Check version number here and could update firmware here. How to update firmware: A. Use Firefly APP to update firmware. a. Delete all the files in MicroSD card , and then copy update file to MicroSD card( “Firefly_X_FWUPDATE_V5.bin”you could download it on our www.hawkeyefpv.com.cn...
- Page 15 www.hawkeyefpv.com.cn e. Once confirmed, camera will update automaticly. f. It will take 1 minutes to update. When update finish, it will power on. g. Delete firmware update files.
-
Page 16: Wi-Fi
WIFI QR code directly to connect. 4. Open the FIREFLY app on your smart phone/tablet. You will now be able to control the camera with your smart phone/tablet plus view, playback and share selected content. -
Page 17: External Microphone
External Microphone: Please buy our external microphone for FIREFLY X. When plug in the microphone, the camera will Beep and the microphone works. - Page 18 7.Can't record/Camera unstable/record and then stop: A.Make sure card speed is U3. B. Format MiroSD card(One FIREFLY) once. Suggest MicroSD cards: Sandisk Extreme U3，Sandisk Extreme Pro U3,Sandisk Extreme PLUS U3,Lexar 1000x U3 ，SONY SR-64X U3 8.Machine is heat. a. Set to Photo Mode when standby. b.take it out of the waterproof case.
- Page 19 www.hawkeyefpv.com.cn 10.How to use BT remote controller: please refer to Bluetooth pair. Note: When Camera power ON , it will keep searching BT remote controller for 20 seconds(If bluetooth auto start is turn ON), if you keep pressing controller’s key (about 5 times), they will be pared automaticly. 11.WiFi playback speed is slow.
- Page 20 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Please download APP from: Apple Store: Firefly Cam Google Play: Hawkeye Firefly iOS: Android:...
