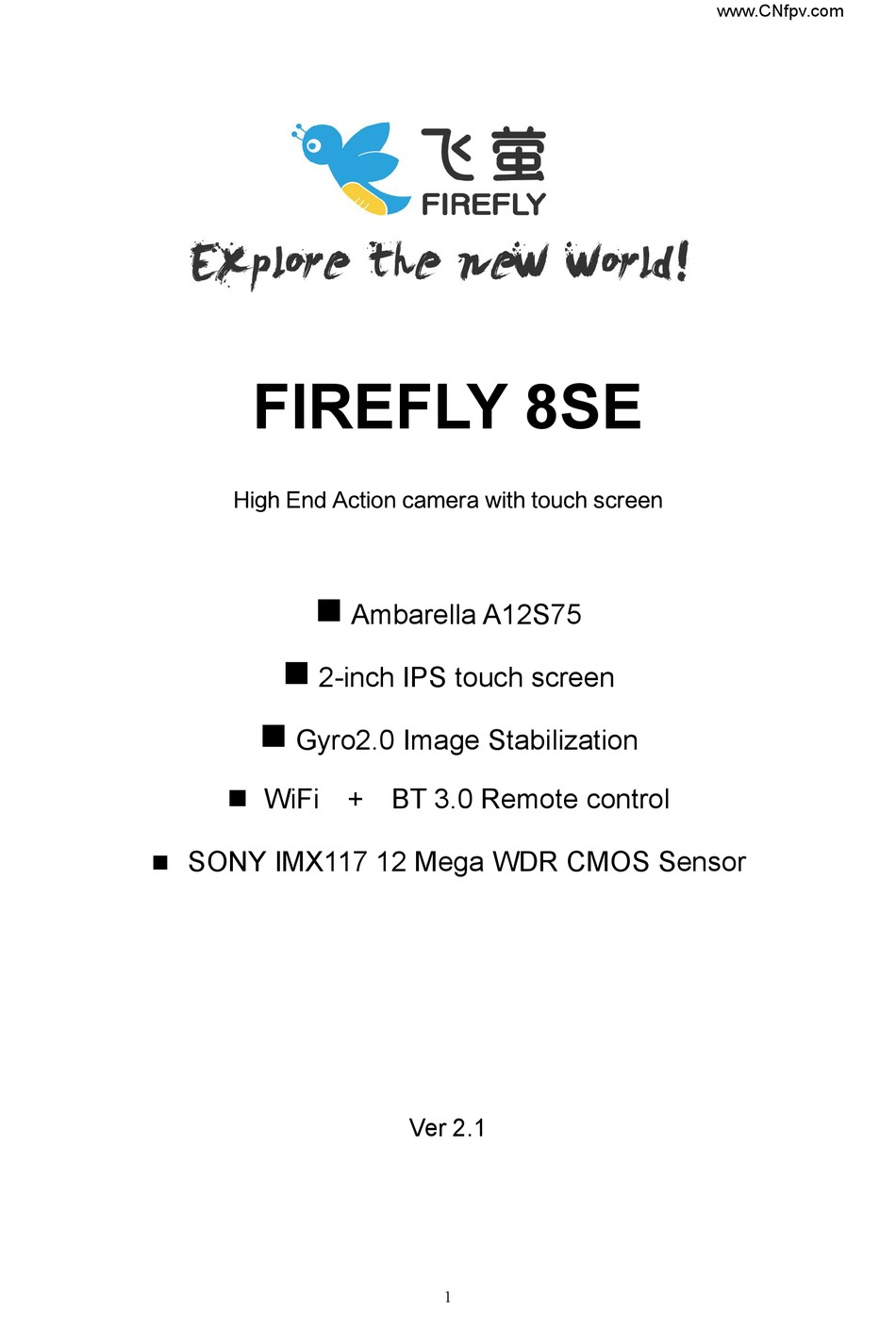

- Page 1 FIREFLY 8SE High End Action camera with touch screen Ambarella A12S75 2-inch IPS touch screen Gyro2.0 Image Stabilization WiFi + BT 3.0 Remote control SONY IMX117 12 Mega WDR CMOS Sensor Ver 2.1...
-
Page 2: Table Of Contents
www.CNfpv.com Contents Safety Guidelines：......................3 Features ：........................4 .............................4 Performance and Specifications:................... 5 Button Functions.......................6 Video settings:........................7 Photo settings:........................9 System Setup settings:....................10 BT Pair..........................11 How to update firmware:....................12 Wi-Fi :..........................13 Battery Charging:......................13 Transferring Files:......................13 External Microphone:.....................13 Instruction for accessories：..................14 Accessories installation instructions(Not in stander package):.......15... -
Page 3: Safety Guidelines
6.While charging , keep the product out of children’s reach. Power cable may casuse children accidental suffocation or electric shock. 7.Use orignal Firfly 8SE’s batteries, to make sure the camera work/charge properly. 8.Keep the device in cool, dry and dust-free places. -
Page 4: Features
www.CNfpv.com Features ： 10 11 12 1.UP button. 7.Battery door. 2.DOWN button. 8.Power button/Mode button. 3.OK button 9.Selfie Mirror. 4.Photo(Green)/Video(Blue) LED. 10.MicroSD card slot. 5.HD output 11.Playback button. 6.Mini USB. 12,Touch Screen... -
Page 5: Performance And Specifications
www.CNfpv.com Performance and Specifications: Photo resolution 16M/14M/12M/8.3M/5M/3M AV output format PAL/NTSC USB Port HD Output Kind of MicroSD card U3(Note:Low speed sd card will cause unstable) supported Maximum size of 128G MicroSD card supported Wi-Fi +BT 3.0 remote control LCD screen size 2 inch IPS 320*240 with TP Camera size 59×41×21 MM... -
Page 6: Button Functions
www.CNfpv.com Button Functions Name Functions Descriptions Power/Mode Turn on/off Press once, camera ON; press for 3 Button camera; select seconds, camera OFF; press to switch modes photo /video mode. OK Button start/stop Press 2 seconds in playback mode to delete recording current file Press 2 seconds to unlock. -
Page 7: Video Settings
www.CNfpv.com Video settings: In video preview mode, touch “setting icon” will enter menu: Touch to: Quick function menu Slide(L/R) to switch ： Video/Photo mode Playback Settings icon Touch to Quick mode switch Slide （ left and right ） to switch ： Video/Photo mode... - Page 8 www.CNfpv.com Settings: Touch to enter setting menu. Record: Touch to enter normal video mode. Video-lapse: Touch to enter time-laps mode. To adjust time-lapse please refer to “Timelapse Video“ menu. Playback: Touch to enter Playback mode. Car Mode: Touch to enter Car mode. In Car mode, Auto DVR and Loop recording will be turned ON.
-
Page 9: Photo Settings
www.CNfpv.com to download/playback videos. Video stamp: Off,Date,Time,Date/Time. this option allows you to stamp the date/time on the video. Logo Watermark: Off,On. this option allows you to stamp the cool logo mark on the video. Video Lapse : to start/stop time-lapse video at 1 / 3 / 5 /10 / 30 /60sec intervals. Note: this function will make videos look like fast forward. -
Page 10: System Setup Settings
www.CNfpv.com photo will be over exposure. Photo Stamp: Off, Date, Time, Date/Time. When turn this function ON, you could stamp the date time on videos. Logo Watermark: Off,On. this option allows you to stamp the cool logo mark on the photo. -
Page 11: Bt Pair
www.CNfpv.com power consumption will be saved. Image Rotate: On/Off, image will rate 180 degrees（Only available on some resolutions）. Distortion Correction: On/Off, image distortion will be corrected.（Only available on some resolutions）.(Note: Only turn it on for 170 degrees version) Auto shutdown: Off, 2Min,3Min,5Min,10Min. When there’s no operations, the machine will auto shutdown. -
Page 12: How To Update Firmware
Version. Check version number here and could update firmware here. How to update firmware: A. Use Firefly APP to update firmware. Please visit Our Youtube channel: Hawkeye Firefly Action Camera a.Delete all the files in MicroSD card , and then copy update file to MicroSD card( “FIREFLY_FWUPDATES.bin”... -
Page 13: Wi-Fi
Wi-Fi network named “FIREFLY_xxxx”, enter the password. Default password is “12345678”. 4. Open the FIREFLY app on your smart phone/tablet. You will now be able to control the camera with your smart phone/tablet plus view, playback and share selected content. -
Page 14: Instruction For Accessories
www.CNfpv.com Instruction for accessories：... -
Page 15: Accessories Installation Instructions(Not In Stander Package)
www.CNfpv.com Accessories installation instructions(Not in stander package):... - Page 16 www.CNfpv.com...
- Page 17 www.CNfpv.com Bluetooth remote controller: Selfie stick: External Microphone:...
- Page 18 5.Video and sounds are no sync: A.copy the video to computer. B. Change a player(Quicktime). 6.Can't record/Camera unstable/record and then stop: A.Make sure card speed is U3. B. Format MiroSD card(One FIREFLY) once. Suggest MicroSD cards: Sandisk Extreme U3，Sandisk Extreme Pro U3,Sandisk Extreme PLUS U3,Lexar 1000x U3 ，SONY SR-64X U3 7.Machine is heat.
- Page 19 www.CNfpv.com Camera power ON , it will keep searching BT remote controller for 20 seconds(If bluetooth auto start is turn ON), if you keep pressing controller’s key (about 5 times), they will be pared automaticly. 11.WiFi playback speed is slow. When you want to use WiFi to playback videos, we suggest to turn “Dual Files”...
- Page 20 Please download APP from: Apple Store: Firefly Cam Google Play: Hawkeye Firefly iOS: Android:...
- Page 21 www.CNfpv.com （ Dear Sir， please fill and print this paper if you want to send back to us your hawkeye product. ） Name: Product Name: Email address: Detail address: Phone number: What’s the problem: Hawkeye address: Name: Victor.Koon Company: HAWK-EYE Aerial Photography Tech Company Limited Tel: (86)134-243-36270 Addr:Room 15B,15 floor,Nanyuan Fengye Building, No.
- Page 22 www.CNfpv.com...
