Related Manuals for Firefly 6s
Summary of Contents for Firefly 6s

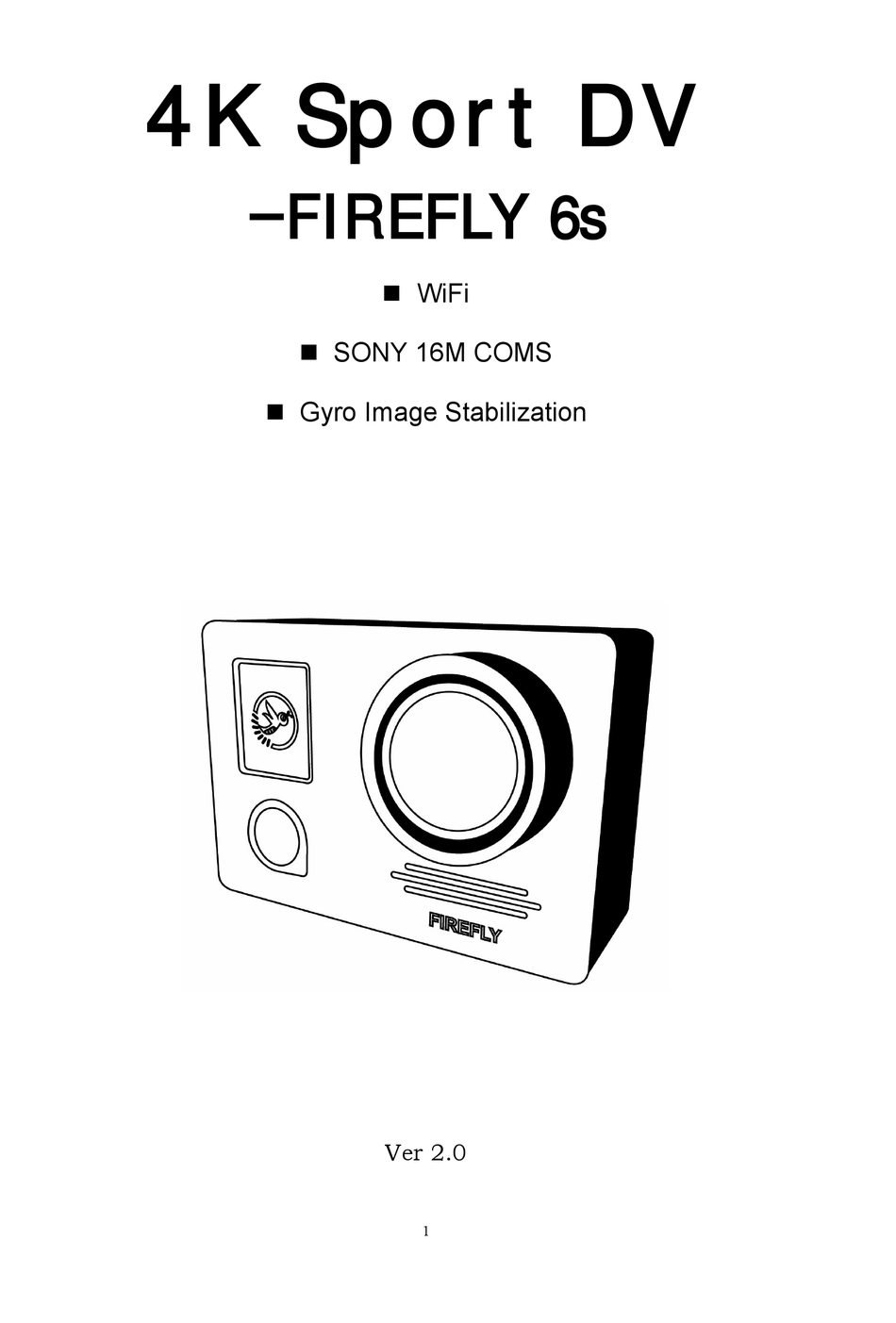

- Page 1 4K Sport DV -FIREFLY 6s WiFi SONY 16M COMS Gyro Image Stabilization Ver 2.0...
-
Page 2: Table Of Contents
Contents Features ：........................3 OLED Status Screen....................... 4 Button Functions......................6 Menu Description:......................6 Wi-Fi Remote:.........................10 Time update:........................10 Battery Charging:......................10 Transferring Files:......................10 Accessories installation instructions(Optional):............11... -
Page 3: Features
Features ： 1.OK Button 7. USB/AV Port 2.Camera Status LED 8. Down Button 3.OLED Status Screen 9. Up Button/ shortcut to WIFI 4.Power/Mode Button 10. TF Card Slot 5. Working/Charging Status Light 11. Battery Door 6. HDMI Port... -
Page 4: Oled Status Screen
OLED Status Screen 1.Modes: Video/Photo 2.Date 3.Resolution 4.Counter 5.WDR Status 6.FOV Level 7.Battery Status。 Note: Please use a C10 TF Card ( when the card speed is not match,it will show“ card speed low ”）, free up its data and format it in FAT32 before use. - Page 5 Performance and Specifications: Photo resolution AV output format PAL/NTSC USB Port HDMI Output Kind of TF card Class 10 supported Maximum size of TF card supported Wi-Fi Camera size 59×41×21 MM Weight Battery Capacity (Battery 1600mAH Specifications is removable) Battery life 1.5 hours Time to complete 2-3 hours...
-
Page 6: Button Functions
Button Functions Name Functions Descriptions Power/Mode Turn on/off Press once, camera on; press for 3 Button camera; select seconds, camera off/ press to select photo modes or video mode. OK Button start/stop recording UP Button move upwards Enter menu setting/move upwards / Press for 3 sec, WIFI ON DOWN Button Move downwards Enter menu setting/move downwards... - Page 7 TV output mode: PAL / NTSC Wi-Fi remote: the camera’s built-in Wi-Fi allows you to connect to the smart phone/tablet via the Firefly App. You can view the photos and videos taken by the camera on your smart phone/tablet; you can also use...
- Page 8 videos. (Note: too long distance between WIFI and camera might cause image loss.) USB Auto power-off: the power will be automatically turned off in 30 seconds after the USB power supply is cut. (This function is suggested to be used in aerial photographing.) Angle adjustment: 3 options: Large / Medium / Small.
- Page 9 System version: enter to see the system version of the camera.
-
Page 10: Wi-Fi Remote
Wi-Fi network named “FIREFLY_xxxx”, enter the password. Default password is “12345678”. 4. Open the FIREFLY app on your smart phone/tablet. You will now be able to control the camera with your smart phone/tablet plus view, playback and share selected content. -
Page 11: Accessories Installation Instructions(Optional)
Accessories installation instructions(Optional):...
