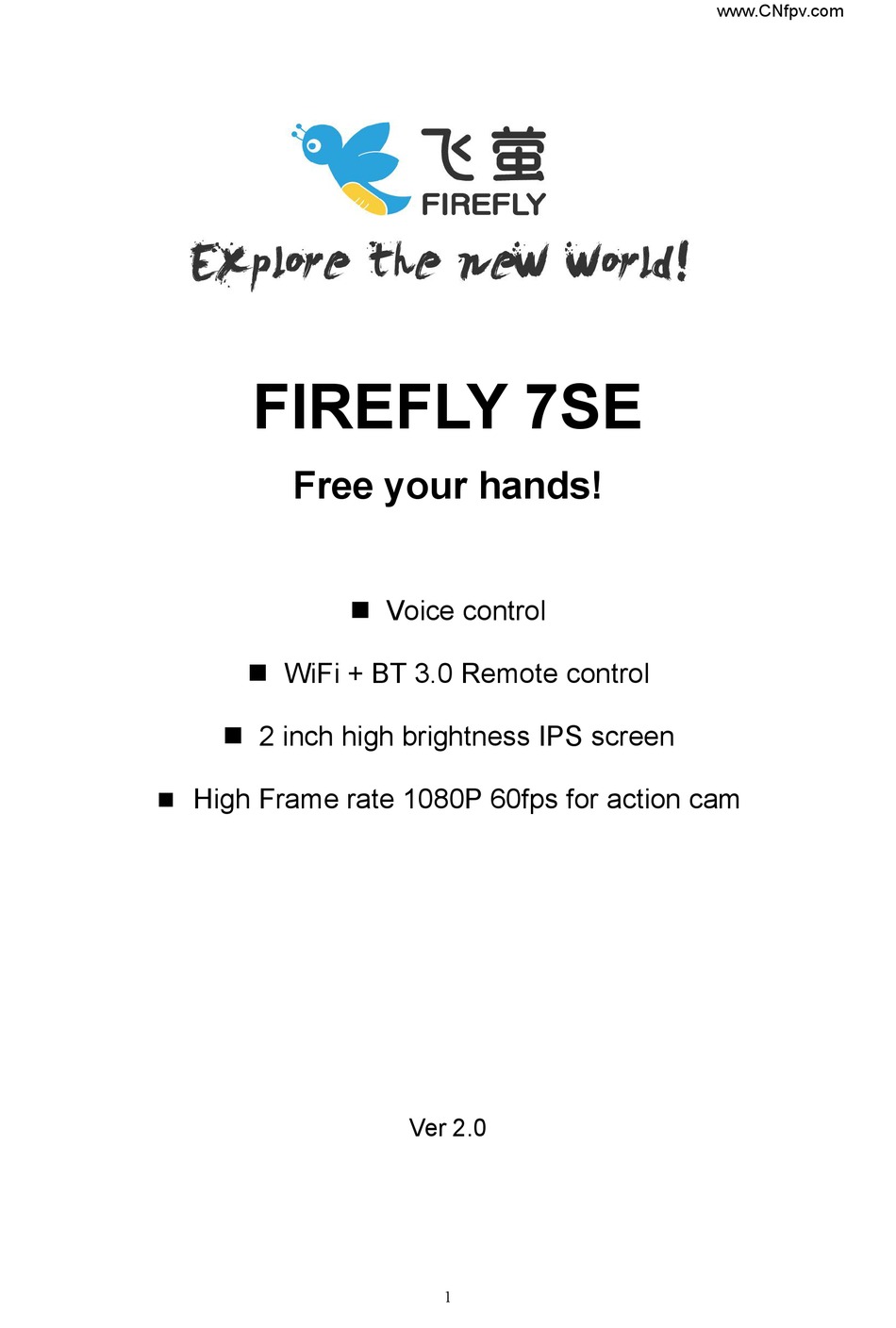

- Page 1 FIREFLY 7SE Free your hands! Voice control WiFi + BT 3.0 Remote control 2 inch high brightness IPS screen High Frame rate 1080P 60fps for action cam Ver 2.0...
-
Page 2: Table Of Contents
www.CNfpv.com Contents Safety Guidelines：......................3 Features ：........................4 .............................4 Performance and Specifications:................... 5 Button Functions.......................6 Video settings:........................6 Photo settings:........................7 System Setup settings:....................8 How to update firmware:....................9 Wi-Fi :..........................10 Battery Charging:......................10 Transferring Files:......................10 External Microphone:.....................10 Instruction for accessories：..................11 Accessories installation instructions(Not in stander package):.......12... -
Page 3: Safety Guidelines
6.While charging , keep the product out of children’s reach. Power cable may casuse children accidental suffocation or electric shock. 7.Use original Firefly’s batteries, to make sure the camera work/charge properly. 8.Keep the device in cool, dry and dust-free places. -
Page 4: Features
www.CNfpv.com Features ： 10 11 1.UP button. 7.Battery door. 2.DOWN button. 8.Power button/Mode button. 3.OK button 9.Selfie Mirror. 4.Photo(Green)/Video(Blue) LED. 10.MicroSD card slot. 5.HD output 11.Playback button. 6.Mini USB. -
Page 5: Performance And Specifications
www.CNfpv.com Performance and Specifications: Photo resolution 12M/8M/5M/3M/2M/1.2M/ AV output format PAL/NTSC USB Port HD Output Kind of MicroSD card supported Maximum size of MicroSD card supported Wi-Fi +BT 3.0 remote control LCD screen size 2 inch 320*240 Camera size 59×41×21 MM Weight Battery Capacity (Battery 1200mAH，3.85V... -
Page 6: Button Functions
www.CNfpv.com Button Functions Name Functions Descriptions Power/Mode Turn on/off Press once, camera ON; press for 3 Button camera; select seconds, camera OFF; press to switch modes photo /video mode. OK Button start/stop Press 2 seconds in playback mode to delete recording current file move upwards /Shortcut key for screen... -
Page 7: Photo Settings
www.CNfpv.com Metering:Multi,Center,Spot. Exposure: -2,-1,0,+1,+2. White Balance: Auto, Daylight,Cloudy, Fluoresc, Fluoresc.1, Fluoresc.2, Incandesc. ISO: Auto, ISO100, ISO200, ISO400, ISO800, ISO1600,ISO3200. Color: Natural, Vivid,Pale. Effect: Normal, Sepia,B&W, Negative. HDR: Off, On.available on 1080p 30fps. Contrast:-100 - +100. Saturation: -100 - +100 Sharpness:-100 - +100 Gamma:-100 - +100 Photo settings: Photo size:12M,8M,5M,3M,2M,1.2M,VGA（1M=1Mega pixels）. -
Page 8: System Setup Settings
www.CNfpv.com ISO: Auto, ISO100, ISO200, ISO400, ISO800, ISO1600,ISO3200. Contrast:-100 - +100. Saturation: -100 - +100 Sharpness:-100 - +100 Gamma:-100 - +100 System Setup settings: In setting menu, press playback key to enter system setup settings. Beep: On, Off. Car mode: On, Off. Voice control : On, Off, Explain:Voice commands are shown here: Start Video , Video Stop, Take a photo, Camera turn off. -
Page 9: How To Update Firmware
www.CNfpv.com HDMI output: 1080P, 720P. Flicker: 50HZ, 60HZ. LCD rotate: On, Off, the image will rotate 180 degrees when turn on. LCD power save: Off, 1min, 3min. Reset setup. Yes,No. Wifi: On, Off. Bluetooth: Connect, No. Format SD-Card: Yes,No SD-card info： The sd card information could be checked here. FW version: read the firmware version number. -
Page 10: Wi-Fi
Wi-Fi network named “FIREFLY_xxxx”, enter the password. Default password is “12345678”. 4. Open the FIREFLY app on your smart phone/tablet. You will now be able to control the camera with your smart phone/tablet plus view, playback and share selected content. -
Page 11: Instruction For Accessories
www.CNfpv.com Instruction for accessories：... -
Page 12: Accessories Installation Instructions(Not In Stander Package)
www.CNfpv.com Accessories installation instructions(Not in stander package):... - Page 13 www.CNfpv.com...
- Page 14 www.CNfpv.com Bluetooth remote controler: Selfie stick: External Microphone:...
- Page 15 www.CNfpv.com Trouble shooting: 1.First of all if the camera has any problems: set it to default settings first（refer to :System Setup settings ). 1.if the video quality is not satisfied or if the camra have any problems: try to set it to default settings first（refer to :System Setup settings ).
- Page 16 www.CNfpv.com interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
- Page 17 Please download APP from: Apple Store: Firefly Cam Google Play: Hawkeye Firefly iOS: Android:...
