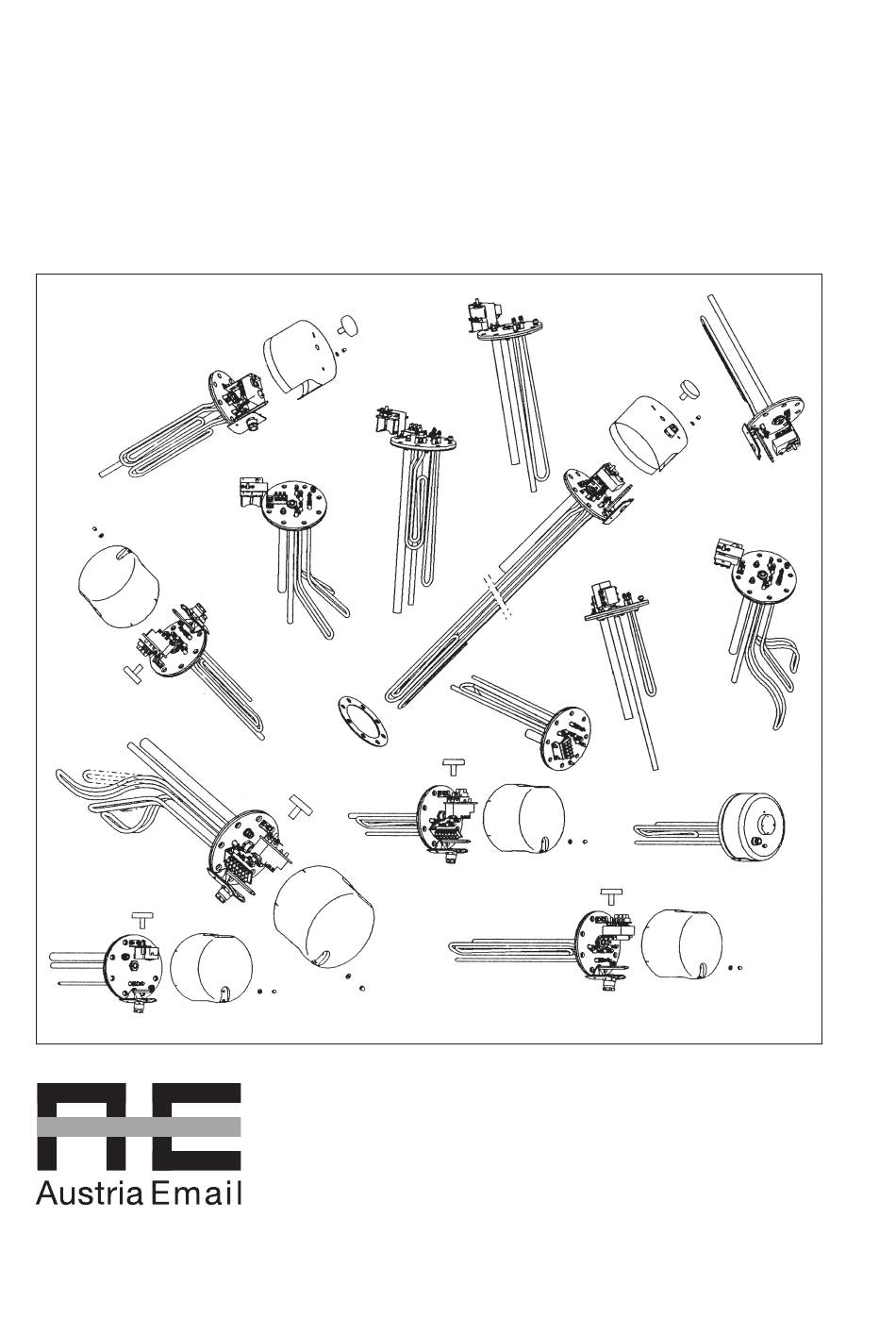

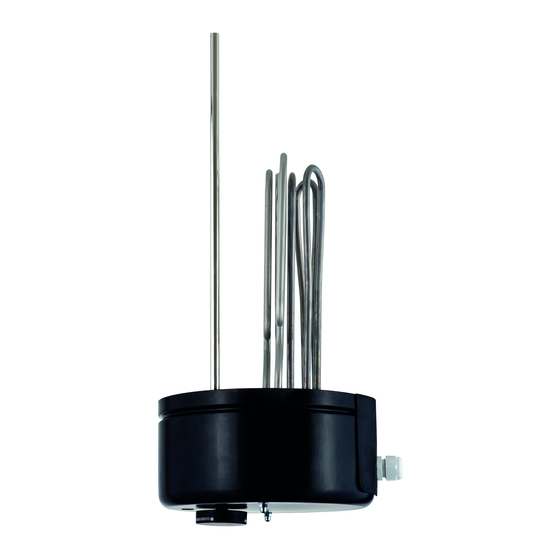

- Page 1 Operating and Mounting Instructions EBH-KDW EBH-TDW Please pass on to the user! Id.Nr.: 228557-15...
-
Page 2: Table Of Contents
Dear customer! The built-in electric heaters are manufactured in accordance with the applicable regulations. The installation and first commissioning must be performed by a licensed plumber and in accordance with these instructions only. You will find all important information for correct assembly and operation of the built-in heater in this small brochure. Ne- vertheless, let your concessionary demonstrate to you how to operate the device and explain its function after completed installation. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS General • This immersion heater can be used by children eight years old and older as well as by persons with reduced physical, sensory or mental capabilities or who lack experience and knowledge if they are supervised or if they have been trained with regard to the safe use of the immersion heater and understand the resulting risks. -
Page 4: Function
1. FUNCTION The electric built-in heaters are service and maintenance-free as the main heating unit for electrically heated hot water tanks. Only in the case of heavily calciferous water it may be necessary to free the heating units from boiler scale in certain intervals. -
Page 5: Information For Assembly And Installation
Should a device, at the point of delivery, clearly display a malfunction, damage or other defect, this must not be fitted, installed or used in the system. Subsequent complaints regarding devices with an obvious defect which have been connected and in- stalled are expressly excluded under the warranty and guarantee. -
Page 6: Assembly Of Built-In Heater
5.2 Assembly of Built-in Heater In addition to the legally approved regulations, the connecting requirements of the local power company and waterworks must be complied with. 1. Remove cover on tank. 2. Install heating flange “item 2” in boiler using sealing ring “item 3”. The sensor protection tube of the temperature control must be located above the tubular heating unit(s) when installed (see information for installation). -
Page 7: Water Connection Of Tank
5.4 Water Connection of Tank It is imperative that the mounting, connecting and operating instructions of the hot water tank (boiler) are complied with. Pressure-proof connection: Any warranty shall be rejected in the case that unsuitable or inoperative tank connector fittings are used as well as in the event of any exceedance of the specified operating pressure. -
Page 8: Circuit Diagrams
5.6 Circuit Diagrams EBH-KDW1 4,0kW 200 litres EBH-TDW1 4,0 kW 4 hrs. / 4,0 kW Heating elements 6 hrs. / 2,7 kW 3 x 1,35 kW / 230 V 8 hrs. / 2,0 kW 3 x 40 Ohm Circuit in factory configuration 4,0 kW / 3~400V Id.Nr.: 228557-15... - Page 9 EBH-KDW1 6,0kW 300 litres EBH-TDW1 6,0 kW 4 hrs. / 6,0 kW Heating elements 6 hrs. / 4,0 kW 3 x 2,0 kW / 400 V 8 hrs. / 3,0 kW 3 x 80 Ohm Circuit in factory configuration 6,0 kW / 3~400V Id.Nr.: 228557-15...
- Page 10 EBH-KDW1 8,0kW 400 litres EBH-TDW1 8,0 kW 4 hrs. / 8,0 kW Heating elements 6 hrs. / 5,0 kW 3 x 2,7 kW / 400 V 8 hrs. / 4,0 kW 3 x 60 Ohm Circuit in factory configuration 8,0 kW / 3~400V Id.Nr.: 228557-15...
- Page 11 EBH-KDW1 10,0kW 500 litres EBH-TDW1 10,0 kW 4 hrs. / 10,0 kW Heating elements 6 hrs. / 6,5 kW 3 x 3,3 kW / 400 V 8 hrs. / 5,0 kW 3 x 48 Ohm Circuit in factory configuration 10,0 kW / 3~400V Id.Nr.: 228557-15...
-
Page 12: First Commissioning
5.7 First Commissioning The tank must be filled with water before switching on the electricity. The expansion water created in the internal boiler during the heating process must drip from the safety valve in the case of a pressure-proof connection, and from the overflow mixing tap in the case of an unpressurised connection. The entire initial heating process is to be monitored, from cold water to reaching the set temperature. -
Page 13: Warranty, Guarantee And Product Liability
WARRANTY, GUARANTEE AND PRODUCT LIABILITY Warranty is made according to the legal provisions of the Republic of Austria and the EU. The prerequisite for honoring of warranty terms on the part of the manufacturer (hereinafter referred to as Manufacturer) is presentation of a paid invoice for the purchase of the appliance in question, whereby the identity of the appliance including model and fabrication number must be indicated on the invoice and presented by the claim applicant. - Page 14 A-8720 Knittelfeld Telefon: (03512) 700-0 Fax: (03512) 700-239 Internet: www.austria-email.at E-Mail: office@austria-email.at Austria Email in your area? For addresses and telephone numbers of our subsidiaries, visit our homepage at www.austria-email.at Print errors and changes of all kinds are reserved. Reproduction prohibited.
