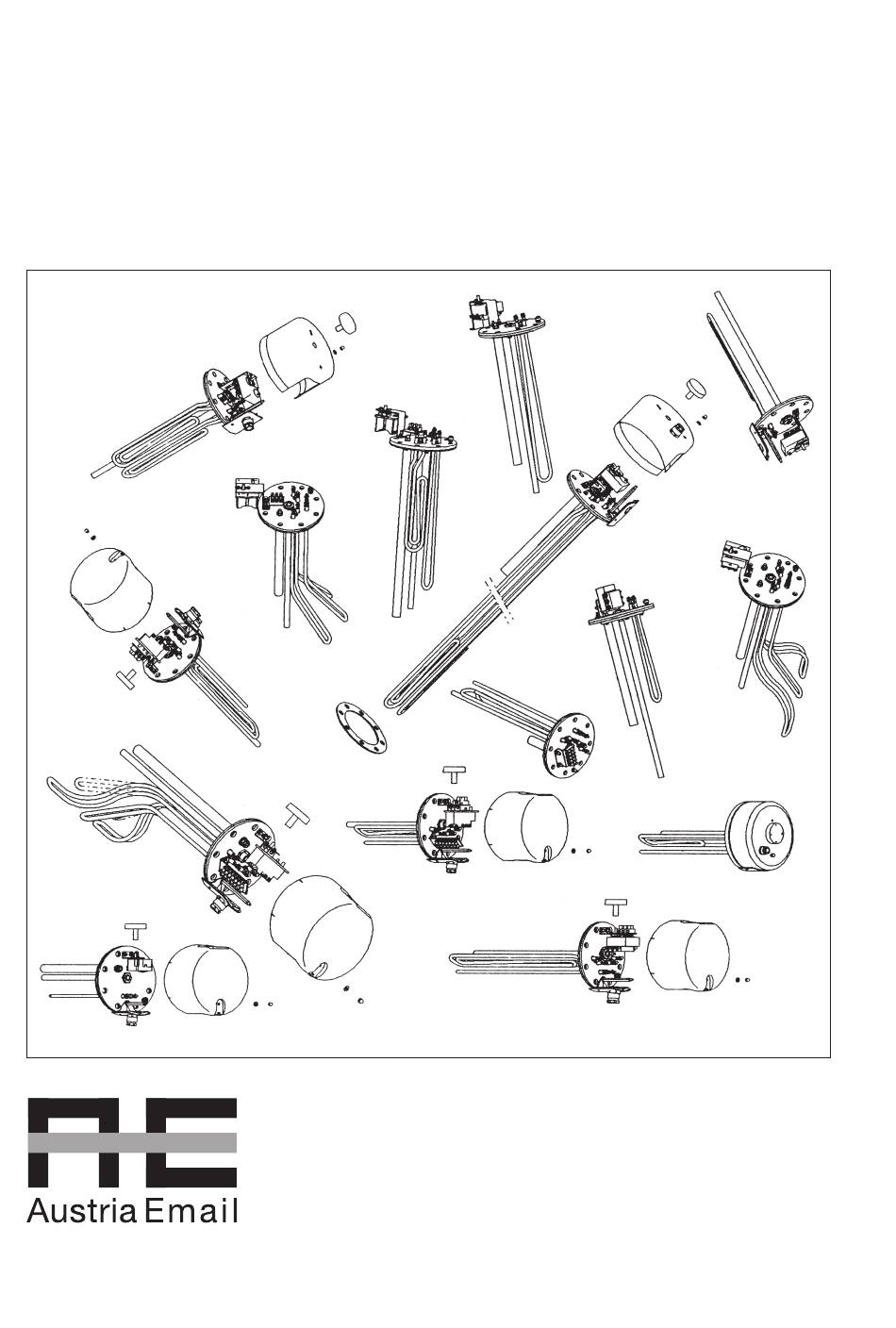

- Page 1 Operating and Mounting Instructions EBH-KDW EBH-TDW Please pass on to the user! Id.Nr.: 228557-10...
-
Page 2: Table Of Contents
Dear customer! The built-in electric heaters are manufactured in accordance with the applicable regulations. The installation and first commissioning must be performed by a licensed plumber and in accordance with these instruc- tions only. You will find all important information for correct assembly and operation of the built-in heater in this small brochure. Nevertheless, let your concessionary demonstrate to you how to operate the device and explain its function after comple- ted installation. -
Page 3: Function
1. Function The electric built-in heaters are service and maintenance-free as the main heating unit for electrically heated hot water tanks. Only in the case of heavily calciferous water it may be necessary to free the heating units from boiler scale in certain intervals. The desired temperature can be selected by the user on the control toggle. -
Page 4: Information For Assembly And Installation
5. Information for Assembly and Installation 5.1 General Information for Installation The heating unit and the sensor protection tube must be surrounded completely by sufficient water during operation. The thermally-induced flow of water must not be obstructed. The built-in heater is equipped with a safety temperature limiter, which stops any further heating of the device from a water temperature of max. -
Page 5: Assembly Of Built-In Heater
5.2 Assembly of Built-in Heater In addition to the legally approved regulations, the connecting requirements of the local power company and waterworks must be complied with. 1. Remove cover on tank. 2. Install heating flange “item 2” in boiler using sealing ring “item 3”. The sensor protection tube of the temperature control must be located above the tubular heating unit(s) when installed (see information for installation). -
Page 6: Water Connection Of Tank
5.4 Water Connection of Tank It is imperative that the mounting, connecting and operating instructions of the hot water tank (boiler) are complied with. Pressure-proof connection: Any warranty shall be rejected in the case that unsuitable or inoperative tank connector fittings are used as well as in the event of any exceedance of the specified operating pressure. -
Page 7: Circuit Diagrams
5.6 Circuit Diagrams EBH-KDW1 4,0kW 200 litres EBH-TDW1 4,0 kW 4 hrs. / 4,0 kW Heating elements 6 hrs. / 2,7 kW 3 x 1,35 kW / 230 V 8 hrs. / 2,0 kW 3 x 40 Ohm Circuit in factory configuration 4,0 kW / 3~400V Id.Nr.: 228557-10... - Page 8 EBH-KDW1 6,0kW 300 litres EBH-TDW1 6,0 kW 4 hrs. / 6,0 kW Heating elements 6 hrs. / 4,0 kW 3 x 2,0 kW / 400 V 8 hrs. / 3,0 kW 3 x 80 Ohm Circuit in factory configuration 6,0 kW / 3~400V Id.Nr.: 228557-10...
- Page 9 EBH-KDW1 8,0kW 400 litres EBH-TDW1 8,0 kW 4 hrs. / 8,0 kW Heating elements 6 hrs. / 5,0 kW 3 x 2,7 kW / 400 V 8 hrs. / 4,0 kW 3 x 60 Ohm Circuit in factory configuration 8,0 kW / 3~400V Id.Nr.: 228557-10...
- Page 10 EBH-KDW1 10,0kW 500 litres EBH-TDW1 10,0 kW 4 hrs. / 10,0 kW Heating elements 6 hrs. / 6,5 kW 3 x 3,3 kW / 400 V 8 hrs. / 5,0 kW 3 x 48 Ohm Circuit in factory configuration 10,0 kW / 3~400V Id.Nr.: 228557-10...
-
Page 11: First Commissioning
5.7 First Commissioning The tank must be filled with water before switching on the electricity. The expansion water created in the internal boiler during the heating process must drip from the safety valve in the case of a pressure-proof connection, and from the overflow mixing tap in the case of an unpressurised connection. Caution: the hot water drain pipe as well as parts of the safety fitting may become hot. -
Page 12: Warranty, Guarantee And Product Liability
The warranty is granted in accordance with the statutory provisions of the Republic of Austria, as well as of the EU. 1. Prerequisite for the provision of warranty services by Austria Email AG (hereinafter referred to as AE AG) shall be the presentation of the paid invoice for the purchase of the device for which the warranty service is claimed, whereby the identity of the device with regard to the model and the manufacturing number must be evident from the invoice and must be documented by the claimant. - Page 14 A-8720 Knittelfeld Telefon: (03512) 700-0 Fax: (03512) 700-239 Internet: www.austria-email.at E-Mail: office@austria-email.at Austria Email in your area? For addresses and telephone numbers of our subsidiaries, visit our homepage at www.austria-email.at Print errors and changes of all kinds are reserved. Reproduction prohibited.
