Summary of Contents for CDA CCA52

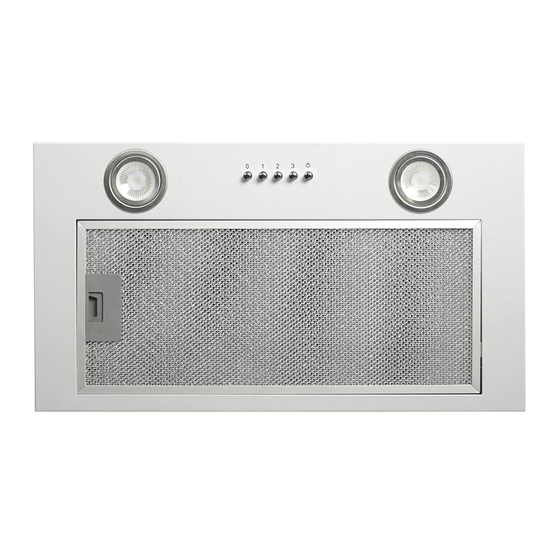

- Page 1 CCA52 & CCA72 Extractors Installation, use and maintenance www.cda.eu Cod:0103083595-00.04...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health. It also enables the constituent materials to be recovered, saving both energy and resources.
-
Page 4: Using Your Extractor
Using your Extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel B - Speed level buttons C - Light button Fig. -
Page 5: Care And Maintenance
Care and Maintenance IMPORTANT：DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a non-abrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. -
Page 6: Charcoal Filter
Charcoal filter In re-circulating mode, air is vented back into the kitchen through the opening in the cooker hood. This method is advised if you are not using your hob intensively. Re-circulated air requires the use of charcoal filters to remove odours. To ensure the best performance from your cooker hood, the charcoal filter should be replaced every 3-6 months, dependent on use. -
Page 7: Electrical Information
If your extractor is not working: 2. Check that the fuse in the spur has not blown. Contact CDA Customer Care A: Customer Care Department, The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY T: 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu... - Page 8 GUARANTEE You new product is guaranteed against defects in materials and/or workmanship. Any parts found to be defective will be repaired or replaced at our discretion. All repairs must be carried out by an authorised service engineer.
-
Page 9: Installation
Installation When the extractor is to be installed above an electric hob, the minimum distance between the hob and extractor must exceed 600mm (650mm is recommended). When the extractor is to be installed above a gas hob, the minimum distance between the hob and extractor must exceed 700mm (7500mm is recommended). - Page 10 Extractor dimensions. CCA52 CCA72 . g i INSTALLATION Mark out the dimensions of the cut-out based on your extractor. CCA52 CCA72 . g i...
- Page 11 INSTALLATION Remove the grease filter, unscrew Connect the exhaust pipe to the the 4 screws of the fixed panel and ducting adaptor and locate on the remove it. extractor as indicated. Place the extractor into the cabinet Secure the panel on with the 4 opening and secure it with screws.
- Page 12 Measured power consumption in standby mode Sound power level 49.1 (F) 49.1 (F) Hood 77 (A) 77 (A) Hood E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
