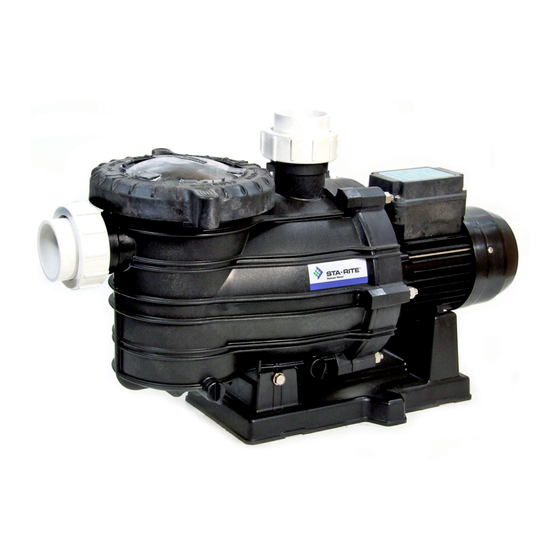

SILENTFLO
™
POOL PUMP
OWNER'S MANUAL
IMPORTANT
The pump must be supplied from a circuit protected by a residual current device (RCD)
with a maximum rated residual current of 30mA. Should the installer or owner be
unfamiliar with the correct installation or operation of this type of equipment you should
contact the distributor/manufacturer for the correct advice before proceeding with the
installation or operation of this product.
SILENTFLO™ Pool Pump Owner' s Manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pentair STA-RITE SILENTFLO SF550100
Summary of Contents for Pentair STA-RITE SILENTFLO SF550100
- Page 1 SILENTFLO ™ POOL PUMP OWNER’S MANUAL IMPORTANT The pump must be supplied from a circuit protected by a residual current device (RCD) with a maximum rated residual current of 30mA. Should the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product.
-
Page 2: Model Data
TABLE OF CONTENTS MODEL DATA Page Operating Conditions Model Data Water (Swim Pool) Temperature 5°C-40°C. Installation 4 - 6 Max. Ambient Temperature 55°C. Pressure Testing Pump Mount Motor Plumbing 9 - 11 TEFC, 2-Pole, Continuous Duty, IPX5, Internal Auto Reset Thermal Overload, Deep Groove Ball Type Piping Bearings with Double-Contact Lip Seal... -
Page 3: Installation
INSTALLATION INSTALLATION SilentFlo is electrically connected. Ensure that it is isolated from The pump operator or owner must be provided with this owner’ s manual. This must be read before operation, and followed during electrical supply during installation and any subsequent service operation. -
Page 4: Pressure Testing
INSTALLATION PRESSURE TESTING Incorrectly installed or tested equipment may fail, causing severe injury or property damage. Read the following instructions in this owner’ s Hazardous pressure! Do not run manual when installing and operating equipment. pump against closed discharge. Have a trained pool professional perform all Release all pressure on pressure tests. -
Page 5: Pump Mount
PUMP MOUNT PLUMBING Pump mount must: Piping 1. Be located away from corrosive or flammable chemicals. Have enough ventilation to maintain air tempertaure at less than the maximum ambient temperture rating. If this pump is installed in an enclosure/pump house, the enclosure must have Support all piping connected to the pump. - Page 6 PLUMBING PLUMBING 800mm Pump suctions are hazardous and can trap and drown or disembowel bathers. Do not use or operate pump, pool or spa if a suction outlet cover is missing, broken, or loose. Certified Anti-entrapment Certified Anti-entrapment Follow the guidelines below for a pump installation which minimises risk to users or Cover or Suction Fitting, Cover or Suction Fitting, pools and spas.
-
Page 7: Operation
ELECTRICAL OPERATION Electrical installation shall be in accordance with the national wiring rules (AS/NZS Before removing trap lid: 3000) taking into account its ratings (Class I, IPX5). The pump is supplied with a 1. SWITCH OFF POWER SUPPLY to pump and unplug from outlet before proceeding. standard Australian 10 amp plug and 2 metres of cord. -
Page 8: Service And Maintenance
When pump is not in use and there is a risk of frost, empty pump or motor. it completely through the drain plug. If shaft seal is worn or damaged consult your Pentair Water authorised service agent. Symptom Cause... -
Page 9: Parts Breakdown
Should problems persist, contact your nearest Pentair Water Service Agent. SILENTFLO ™ Pool Pump Owner’ s Manual SILENTFLO™ Pool Pump Owner’ s Manual... - Page 10 Please attach your sales invoice/docket here as proof of purchase should warranty service be PUMP FASTENERS KIT See Pump Fasteners Kit required. Please do not return warranty form to Pentair Australia - Retain for your records. FLAT WASHER 3/8" x 3/4"x 18G See Pump Fasteners Kit or Motor Fasteners Kit...
- Page 11 1-21 Monash Drive | Dandenong South, VIC 3175 | Australia | 1300 137 344 | pentairpool.com.au Information contained here-in remains the property of Pentair Australia Holdings Pty Ltd under Australian copyright law. Content may not be reproduced or transmitted without our prior written permission.
