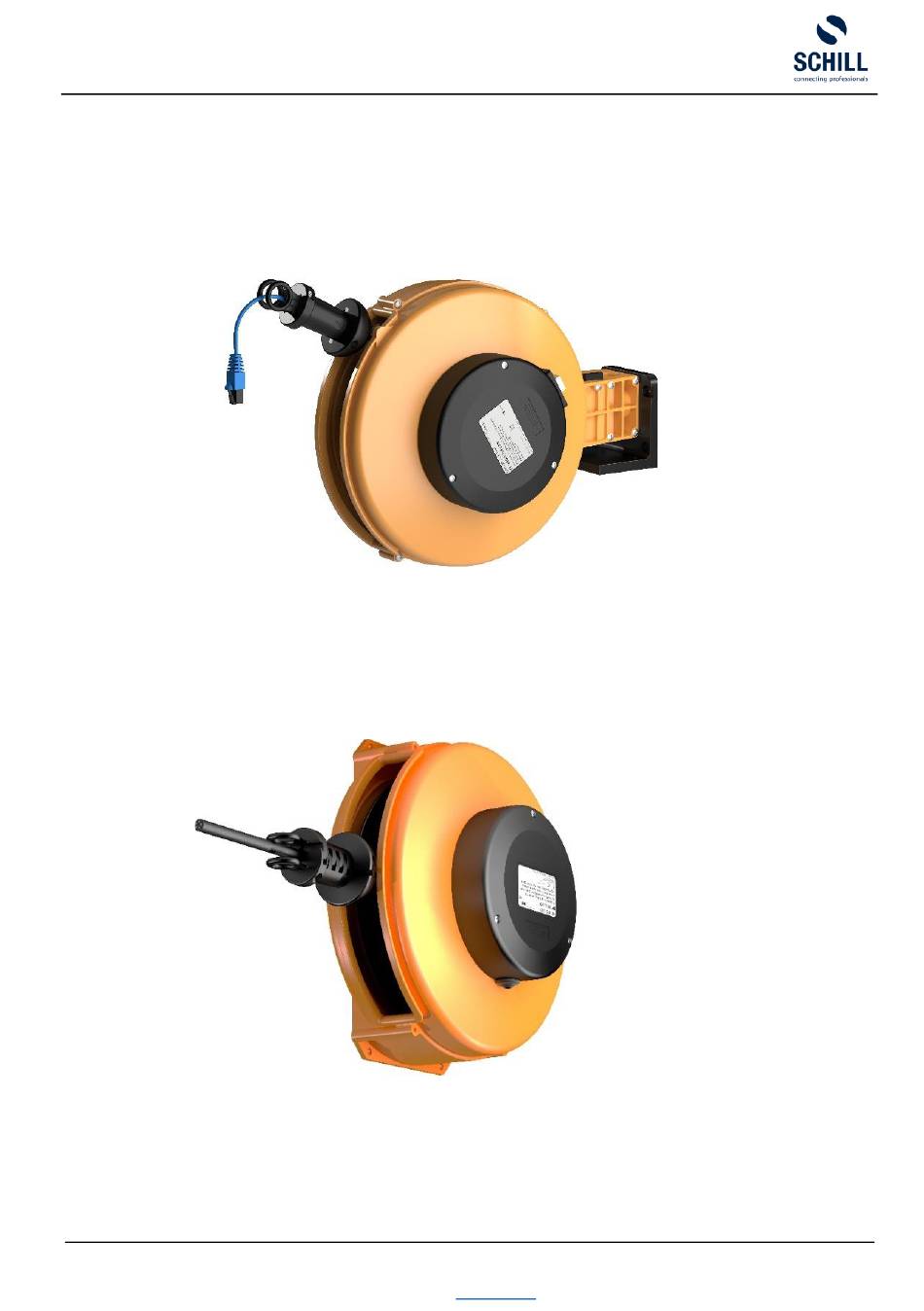

- Page 1 FT 260 / EFT265 LAN installation and operating instruction installation and operating instruction FT 260_EFT 265 LAN - A5 page 1 09.04.2021 Schill GmbH & Co. KG; Bruckstraße 44; 70734 Fellbach www.schill.de...
-
Page 2: Maintenance
FT 260 / EFT265 LAN installation and operating instruction INTRODUCTION All information necessary for a correct assembly to ensure trouble free operation of the cable reel are described in the present operating instructions. The warranty given by the manufacturer is only valid if these operating instructions are observed and adhered to. Terms and conditions are available upon request or at https://www.schill.de/en/footer/general-terms. -
Page 3: Locking Device
The tensioned spring will pull the cable back onto the reel. The locking device FT 260 can be disengaged by pulling the knurled grip out by approx. 1cm and turning it between 90° and 180°. This will disengage the locking device the cable is then constantly under tension. -
Page 4: Ready For Use
FT 260 / EFT265 LAN installation and operating instruction READY FOR USE Before commissioning, check whether the free end of the pull-out cable (RJ45) is correctly connected to a terminal. After connecting the patch cable to the RJ45 socket and establish the network connection, a test to prove the network functionality should be conducted. -
Page 5: Installation Height
FT 260 / EFT265 LAN installation and operating instruction • After the complete re-assembly undo the locking. Pull on the cable stopper, wind out the cable complete and slowly rewind it. • Before re-mounting at the operation area, please check for a correct performance. (see “READY TO USE”). -
Page 6: Fitting Instructions
FT 260 / EFT265 LAN installation and operating instruction FITTING INSTRUCTIONS Wall installation with universal holder DWB260 The cable reel can be rotated 150°. PLEASE NOTE The cable reel housing must be pushed onto the universal holder pin, then insert the slider into the intended position of the cable reel housing. -
Page 7: Tightening Torque
FT 260 / EFT265 LAN installation and operating instruction DIMENSIONS FT / FTE 260 EFT265 The dimensions, weights, lengths, coloures and traction are subject to modifications. We cannot rule out discrepancies and we reserve the right to make technical changes to the product without giving advance notice. - Page 8 FT 260 / EFT265 LAN installation and operating instruction CONTACT Administration Fellbach Manufacture Laichingen Schill GmbH & Co. KG Schill GmbH & Co. KG Bruck Straße 44 Hirschstr. 81 70734 Fellbach 89150 Laichingen Telefon: +49 (0)711 578807-0...
