automatic cable rewinder FT 038 e-mobility with integrated charging electronic
installation and operating instruction FT 038.XXXX.I1X
Seite 1
09.11.2022
installation
and operation instruction FT 038 e-mobility miL FT 038_XXXX
_I1X - A4
Schill GmbH & Co. KG; Bruckstraße 44; 70734 Fellbach
www.schill.de
Advertisement
Table of Contents
Related Manuals for Schill FT 038
Summary of Contents for Schill FT 038

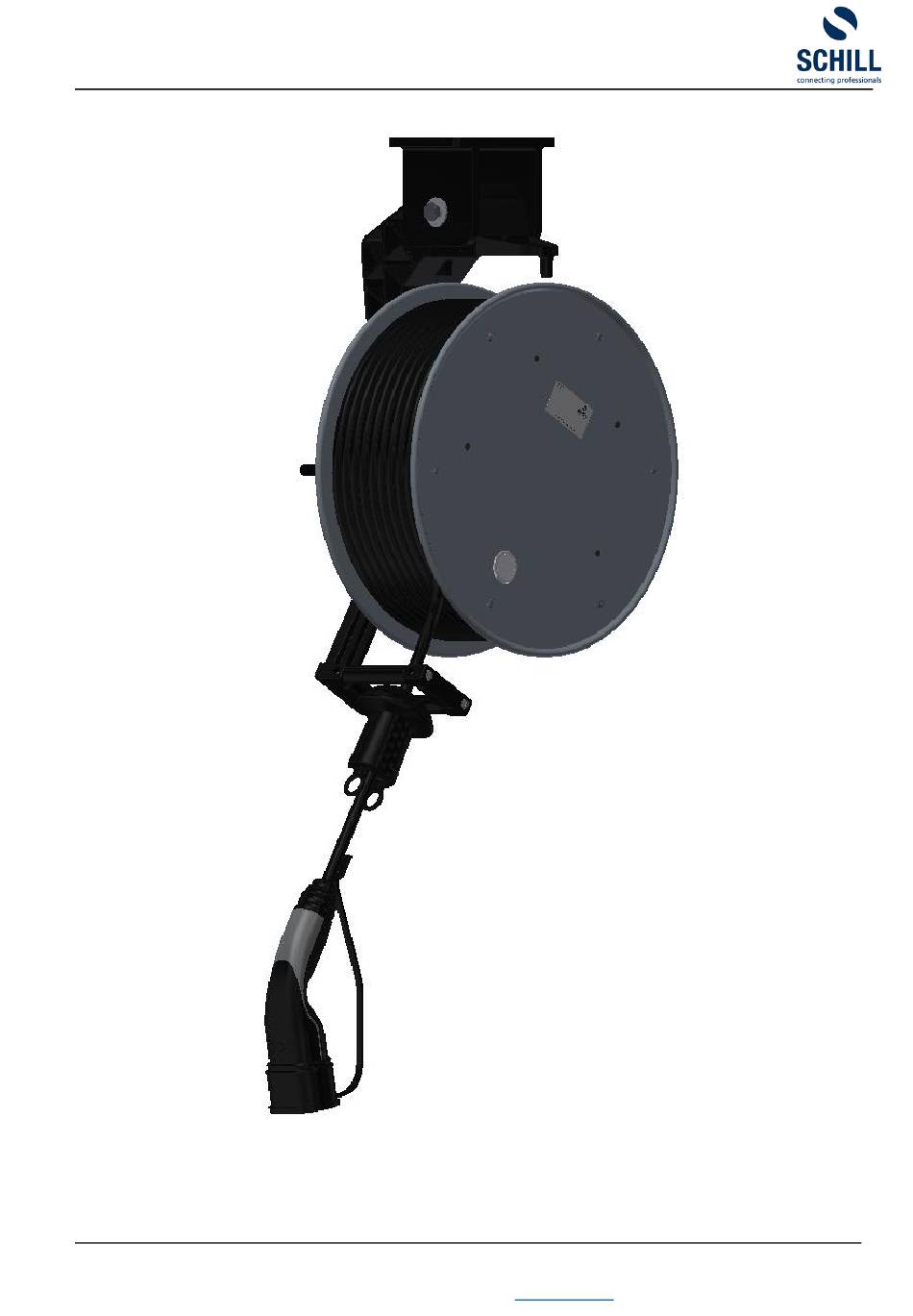

- Page 1 FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X Seite 1 09.11.2022 installation and operation instruction FT 038 e-mobility miL FT 038_XXXX _I1X - A4 Schill GmbH & Co. KG; Bruckstraße 44; 70734 Fellbach...
-
Page 2: Copyright
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X COPYRIGHT Any translation, transfer to third parties, reproduction or distribution is strictly prohibited without our prior consent. Major parts, components, and accessories as well as software configurations, controlling and measuring equipment of our devices are protected by copyright through patent applications, patents, and utility models both in Germany and abroad. -
Page 3: Table Of Contents
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X TABLE OF CONTENTS copyright table of contents introduction Installation / maintenance / repair general handling maintenance spiral spring spring load cable stopper roller guide... -
Page 4: Introduction
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X INTRODUCTION All information necessary for a correct assembly to ensure trouble free operation of the cable reel are described in the present operating instructions. The warranty given by the manufacturer is only valid if these operating instructions are observed and adhered to. -
Page 5: Maintenance
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X Incorrect use caused by torsional stress together with simultaneous expansion of cable should be avoided. MAINTENANCE The cable reel does not require any maintenance, The bearings are provided with grease so that relubrication is not necessary. -
Page 6: Cable Stopper
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X CABLE STOPPER The length of the available cable can be individually adjusted with the provided cable stopper. The reliable clamping adapts to various cable diameters between 6 and 16 mm. -
Page 7: Connecting
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X ATTENTION Do not release the cable when rewinding, the tension of the spring can accelerate the winding speed to such a degree that the swinging cable end could cause injury. -
Page 8: Extension Cable
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X To connect the reel to the mains/supply service a connection cable is mounted. As a standard a plug-in connector is not included in the scope of supply. -
Page 9: Protective Devices
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X PROTECTIVE DEVICES Fuse: The integrated charging electronic is fused with a 5x20 glass bulb fuse. This is located on the charge controller (see also "CHARGE CONTROLLER") in the core of the reel. To change the fuse, unscrew the cover from the reel. -
Page 10: Charge Controller
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X CHARGE CONTROLLER Component Description Microfuse 5x20 1A slow Charge current setting DIP 1 ON, DIP 2,3,4,5 OFF => 10 A DIP 2 ON, DIP 1,3,4,5 OFF =>... -
Page 11: Signaling Elements
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X SIGNALING ELEMENTS FT 038.XXXX.I1X Tint Description Missing power supply or micro fuse defective or missing release (see release contact) White permanent Operational GREEN permanent... -
Page 12: Ready For Use
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X READY FOR USE If necessary, the max. charging current must be set. Charging current setting: The maximum charging current that the charging station provides the vehicle is set with DIP switches 1 - 5. -
Page 13: Technical Data
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X TECHNICAL DATA The cable reels consist of a plastic drum core with coated steel discs and a steel bracket. Is corrosion resistant and has very good winding and running characteristics due to the ball-bearing axle. -
Page 14: Installation Height
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X delivery. Specification for plug-in devices can be found within the relevant standard DIN EN 60390 or respectively DIN VDE 0620. For other operating temperatures please contact us. - Page 15 FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X Mounting fixture WB 038 for wall installation Ceiling installation rotating DB 038 Mounting fixture WB 038 is included in Mounting fixture DB 038 and fastening...
-
Page 16: Tightening Torque
FT 038 e-mobility with integrated charging electronic installation and operating instruction FT 038.XXXX.I1X TIGHTENING TORQUE Gehäuseschrauben 0,8 Nm Cover screws Sicherungsschraube. M8 0,8 Nm Locking screw M8 Zugentlastung 0,8 Nm Strain relief Kabelstopper 0,8 Nm Cable stopper... -
Page 17: Dimension
FT 038 e-mobility with integrated charging electronic installation and operating instruction DIMENSION Seite 17 09.11.2022 installation and operation instruction FT 038 e-mobility miL FT 038_XXXX _I1X - A4 Schill GmbH & Co. KG; Bruckstraße 44; 70734 Fellbach... -
Page 18: Declaration Of Conformity
SPARE PART ORDER If you require spare parts, please contact our local distribution partner or give us a ring on 0049 711/ 578807-0 or send a mail at sales@schill.de. Please have the product number or the part number and the indication ready.
