Daewoo COMPACT PRO User Manual page 6

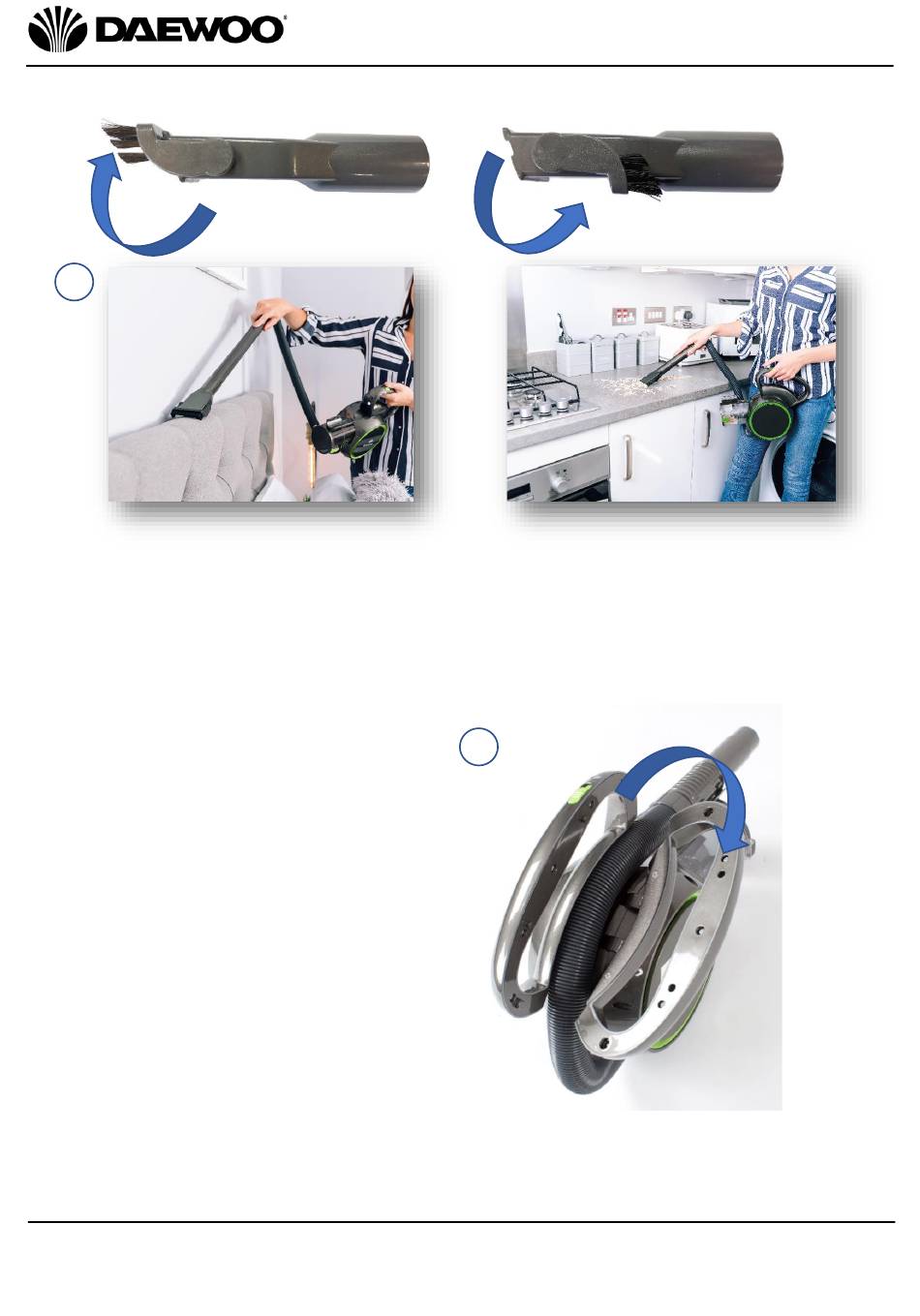

2. Rotate the brush up or down to use as a brush tool (a.) or a crevice tool (b.) as below:
2
Above: Rotate the brush forwards
on the tool as above to clean
upholstery, curtains, etc.
NB if desired insert the Extension
Tube (9) between the tool and Air
Intake (7) to give better reach.
3. Right: Pull the Handle (12) apart to
release the Air Intake/Hose (17).
Slide the hose slightly forward to
release it from its holder.
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
a.
Compact Pro 18.5V Cordless Handheld Vacuum
Above: Rotate the brush back on
the tool as above to clean spills,
carpet edges and other hard to
get at areas.
NB Release the Hose by pulling
the Handle (12) apart.
3
FLR00013
User Manual
b.
6
