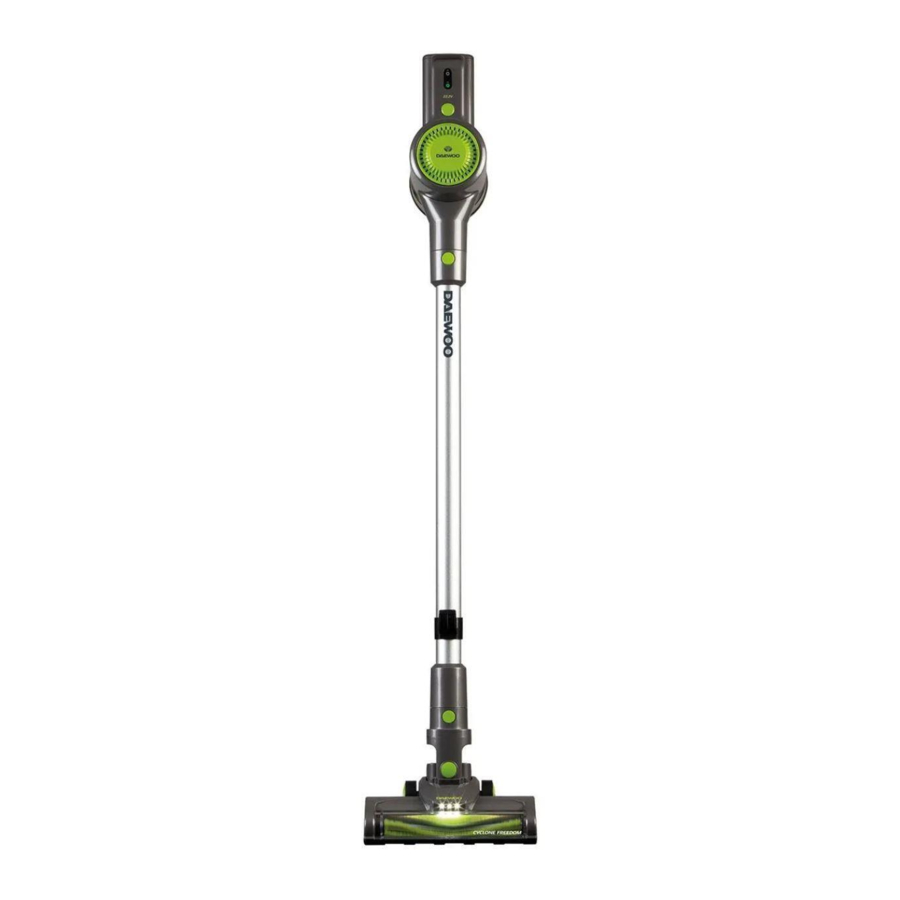

Daewoo FLR00010 - Cyclone Freedom 22.2V Cordless Vacuum Manual

Features

Explanation of Symbols

	This symbol provides useful additional information on the use of this product.
	This symbol indicates that the supply uses an alternating current mains supply.
	This symbol identifies voltage and the current rating for direct current.
	This designates a hazard with moderate risk, which may result in severe injury or damage to the product if not adhered to.

Description of Parts & Accesories

1. Air/Dust Inlet
2. Conical Hepa & Cyclonic Filters
3. Dust Release Catch
4. Dust Compartment
5. Charging/Battery Indicators
6. Charging Socket
7. Handle
8. On/Off/Power Button
9. Min/Max Power Indicator
10. Air Outlet Filter Door Release Button
11. Air Outlet Filter Door
12. Motor Housing
13. Motorise Floor Tool
14. Crevice & Upholstery Tool
15. Small Power Plug
16. Mains Charger
17. Aluminium Tube
18. Carpet Brush
19. Hard Floor Brush
20. Long Reach Crevice Tool
21. Wall Bracket (with Screws & Plugs)

Before the first time you use your device

Please read these operating instructions thoroughly and keep them in a safe place for future reference.
Remove all packing materials and discard responsibly.

Charging the internal Battery

Before use, please ensure that the internal rechargeable battery is fully charged as follows:

1. Insert the Small Power Plug (15) of the Mains Charger (16) into the Charging Socket (6).
2. Plug the Mains Charger (16) into the nearest mains socket.
3. The Charging/Battery Indicators (5) will light in the sequence as in a, b, c below to show the internal battery is charging.

4. Once the battery is fully charged (after approximately 5 hours), the Charging/Battery Indicators (5) will all light as in 'c' above showing that the internal battery is fully charged and the Mains Charger (16) can be removed.

Charging/Battery Indicators (5) will all light as in 'c' above showing that the none of the indicators are illuminated the internal battery will need recharging.

Attaching the Accessories

Ensure that the vacuum cleaner is not connected to the mains charger before use.

Fitting the Motorised Floor Tool

1. Push the Aluminium Tube (17) onto the Air/Dust Inlet (1) until it clicks home as shown below:

2. Push the Motorised Floor Tool (13) onto the other end of the Aluminium Tube (17) again until it clicks home.


Using Your Product

Using the The Motorised Floor Tool

1. Before using the Motorised Floor Tool (13) the first choose the appropriate brush type for the floor type being cleaned:
   Select the Carpet Brush (18) for vacuum cleaning carpets, rugs, etc.
   Select the Hard Floor Brush (19) for cleaning vinyl, laminate, tiled floors, etc.

2. To change the brush type, slide the brush retaining catch (a) right on the underside of the Motorised Floor Tool (13) as shown below.
   The Hard Floor Brush (19) is currently fitted in this example.

3. Lift out the Hard Floor Brush (19) from the Motorised Floor Tool (13) as shown in (b)

4. Whilst installing the Carpet Brush (18), ensure that the squared end (c.) of the brush is towards the retaining catch and is positioned as shown below.

5. Once in place, slide back the brush retaining catch and insert the Carpet Floor Brush (18) into the Motorised Floor Tool (13) as shown below(d.).

6. Finally, push the brush retaining clip left to hold the brush in place as shown arrowed left. The vacuum is now ready to clean carpeted floors.


Using Your Product

1. Grasp the vacuum cleaner firmly by the Handle (7) and press the On/Off/Power Button (8 – arrowed right) to power up the cleaner.

2. During use, press the On/Off/Power Button (8) to select between minimum or maximum suction power as follows:
   1. The First press of the On/Off/Power Button (8) - the power level will be at minimum, the Min/Max Power Indicator (9 - arrowed left) will illuminate green.

   2. A second press of the On/Off/Power Button (8) will select the maximum power setting, the Min/Max Power Indicator (9 - arrowed left) will illuminate red.

   3. A third press of the On/Off/Power Button (8) will switch the vacuum off.
3. Place your foot gently on the Motorised Floor Tool (13) and pull the cleaner back by the Handle (7) and start vacuum cleaning.

4. If the Aluminium Tube (17) is not required, the Motorised Floor Tool (13) can be attached directly as shown below for cleaning hard to get at areas such as stairs, car seats, etc.


Using the Crevice & Upholstery Tool

1. Attach the Crevice Tool & Upholstery Tool (14) onto the Aluminium Tube (17) to clean carpet edges and hard to get at areas:
   Slide the brush back on the tool to reveal the crevice tool to clean carpet edges, etc. Alternatively use the Long Reach Crevice Tool (20).

   Pull the brush down on the Crevice Tool & Upholstery Tool (14) to clean curtains, upholstery, etc.

2. If the Aluminium Tube (17) is not required, attach the Crevice Tool & Upholstery Tool (14) directly to the cleaner, this useful for cleaning soft furnishings, car seats, stairs, etc.:


Emptying and Cleaning Your Product

Always disconnect the cleaner from the mains charger before cleaning.

1. Once the Dust compartment (4) fills to the level shown arrowed left, it will need emptying and the filters cleaned.


DO NOT continue to use your vacuum cleaner above the Maximum Fill level shown arrowed above as permanent damage may occur to the appliance.

2. To empty the cleaner, hold the Dust Compartment (4) over a dust bin and press the Dust Release Catch (3) (arrowed right) and the base of the dust compartment will swing open and allow the collected dust to fall out into the dust bin.

3. After emptying the Dust Compartment (4), insert the top of the Crevice and Upholstery Tool (14) or the Long Reach Crevice Tool (20) into the base of the filter assembly as shown left and rotate anticlockwise to remove the Conical Hepa & Cyclonic Filters (2)

4. Twist the Conical Hepa filter clockwise in the and the direction of the 'UNLOCK' symbol as shown circled below and remove it from the Cyclonic filter.

5. Wash the Conical Hepa and Cyclonic Filters (2) in warm running water until clean. Allow the filters to dry thoroughly for 24 hours before reuse.


Replacing the Filters in Your Device

6. Replace the Conical Hepa Filter (2) inside the Cyclonic Filter, rotate the filter anticlockwise towards the 'LOCK' position as shown circled left.

7. Replace Conical Hepa & Cyclonic Filters (2) into the vacuum rotating clockwise as shown.


Cleaning and Replacing the Outlet Filter

8. Press the Air Outlet Filter Door Release Button (10) to open the Air Outlet Filter Door (11). Remove the air outlet filter and wash in warm running water until clean. Allow the filter to dry thoroughly for 24 hours before reuse.
   Replace the filter and push the Air Outlet Filter Door (11) closed.


Care and Use of your Unit

• Always disconnect the cleaner from the mains charger before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or abrasive cleaners.
• Do not submerge the cleaner or its charger in water or any other liquids.
• Empty the Dust Compartment (4) as soon as it has reached maximum capacity (see above).*
• Wash the Conical Hepa, Cyclonic Filters (2) and the Air Outlet Filter (11) regularly – see table below.
• Allow the filters to thoroughly dry out for 24 hours before reassembly and reuse.

*DO NOT continue to use your vacuum cleaner once the Dust Compartment (4) is full as permanent damage may occur to the appliance.

Recommended filter cleaning intervals

Filter Type	Recommended cleaning period
Conical Hepa Filter	Shake out debris when you empty the dust Rinse under warm water once a month container Allow to dry thoroughly for 24 hours before reuse.
Cyclonic Filter	Shake out debris once a month Rinse under warm water once a month. Allow to dry thoroughly for 24 hours before reuse.
Air Outlet Filter	Shake out debris once a month Remove the sponge filter from around the Hepa filter and rinse under warm water once every 3-6 Allow to dry thoroughly for 24 hours before reuse. months

Ensure the filters are cleaned periodically according to the table above, failure to clean the filters regularly will severely impair the performance and permanent damage may occur to the appliance.

Fitting the Wall Bracket for Storage of your Unit

Fit the Wall Bracket (21) to the wall using supplied Wall Plugs and Screws (or alternative appropriate fixings for the wall) as follows:

Be careful whilst drilling the holes, care must be taken not to damage concealed cables and pipes in the wall. If in doubt obtain the services of a qualified tradesman to fit the wall bracket.

1. Choose a suitable position to mount your vacuum cleaner on the wall.
2. Measure 1 metre above the floor and mark the wall with a pencil as shown above.
3. Hold the Wall Bracket level on the wall in line with the 1 metre mark made and mark the position of the two screw holes through the Wall Bracket using a pencil as shown.

4. Remove the Wall Bracket and using the marks, drill holes in the wall using a suitable 6mm masonry drill bit (not supplied).

5. After drilling the holes, push the two supplied Wall Plugs into the holes as shown

6. Screw the Wall Bracket to the wall using the supplied screws:

7. Hang your Vacuum cleaner on the Wall Bracket as shown below:
   Close up showing how the vacuum cleaner mounts onto the Wall Bracket


Technical Specification

Model Number	FLR00010
Mains Charger	Input: AC 100-240V ~ 50/60Hz Output: 27V DC 500mA
Rated Power	150W
Battery	22.2V 2200mAh Li-Ion (6 cells)
Unpacked Weight (approx.)	2.2 Kgs
Dimensions (approx.)	210mm (l) x 128mm (w) x 290mm (h)
Vacuum (max)	8-11kpa
Noise Level (approx.)	72dB
Dust Compartment Capacity	0.8L

Customer Support

Should you require any product information, replacement parts or accessories, please contact out customer care team at help@daewooelectricals.com or call 0161 831 7879.

Troubleshooting Guide

IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE

When using electrical appliances, basic safety precautions should always be followed.

Only use the product as described in this user manual. Any other use is considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury incurred through improper or incorrect use.

• Read and familiarise yourself with all operating instructions before using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years when it is energised or cooling down.
• DO NOT immerse the appliance or its cord in water or any other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected to the mains supply.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed qualified personnel. Improper repairs may place user at serious risk.
• DO NOT operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to
• ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard
• DO NOT allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains supply and allow to cool.
• This appliance is intended for household use only and should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this appliance other than those supplied or recommended by supplier.
• DO NOT use this appliance for anything other than its intended use.
• DO NOT push objects into any openings as damage to the appliance and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT pull or carry the Vacuum Cleaner by the electrical cord, use the handle provided.
• Ensure fingers and other objects are never placed in any part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and anything else that may reduce airflow.
• Avoid directing the appliance towards naked flames as the air discharged may extinguish gas fires or pilot lights and may disturb ashes in open fires.
• DO NOT Vacuum water or any other liquids with this vacuum.
• DO NOT Vacuum hot ashes or lit cigarettes, etc.
• Never use the appliance without the filter in place.
• Do not use the Vacuum with no Dust Tank attached.
• DO NOT vacuum any large or broken objects such as glass.
• DO NOT vacuum anything that is burning or smoking such as cigarettes, matches or hot ashes.

Manchester M3 1JS
