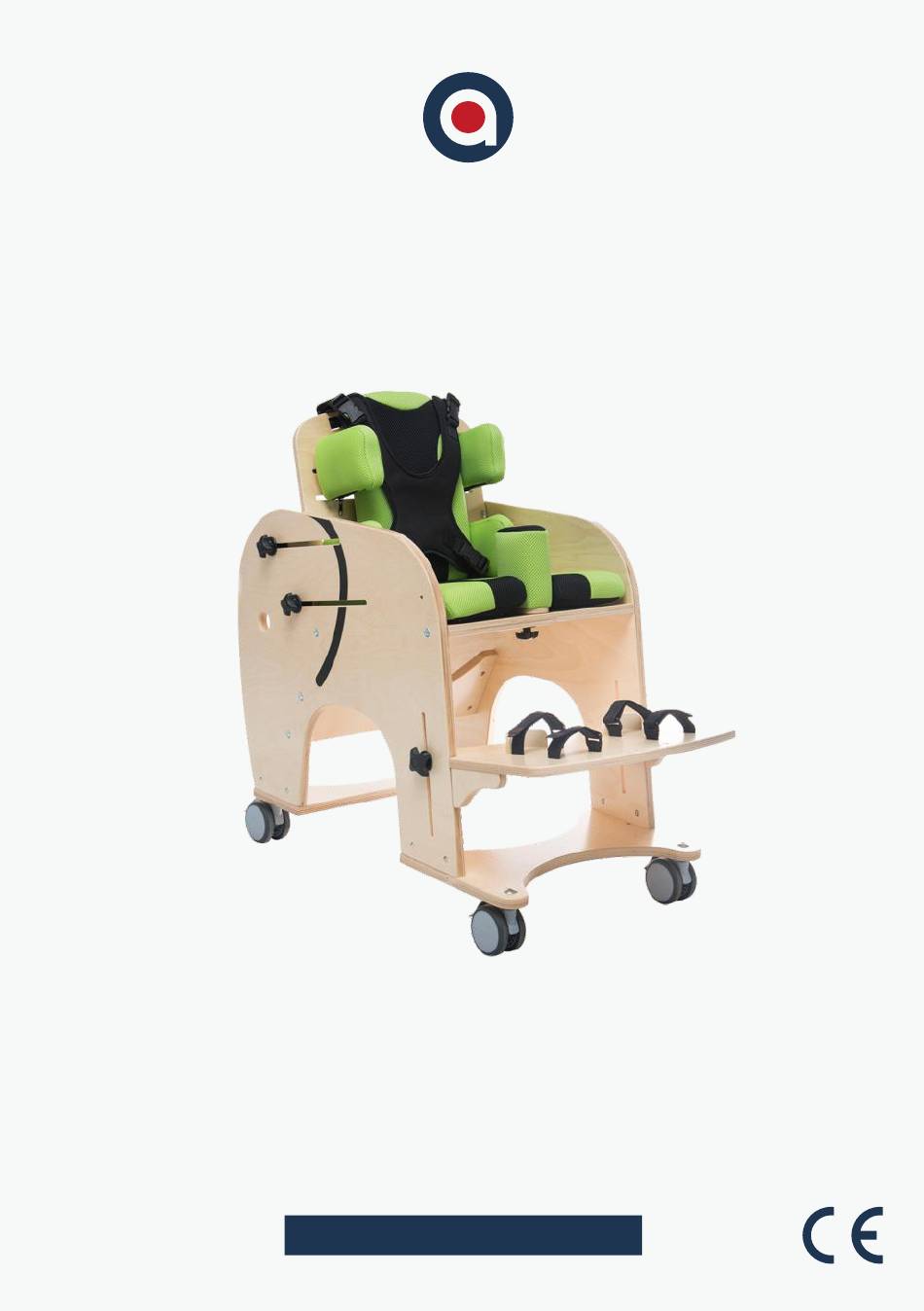

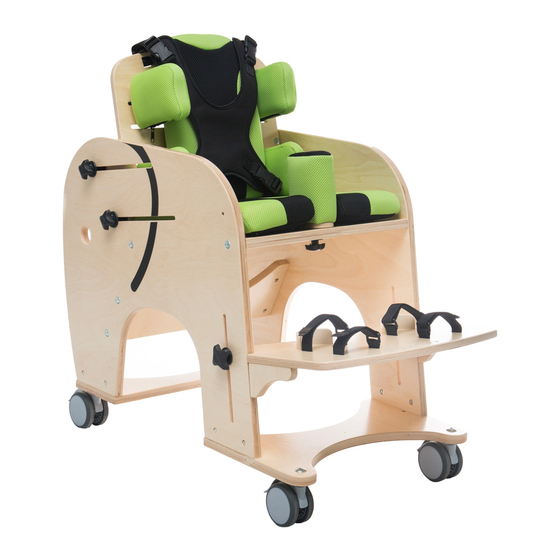

  • Page 1 POSITIONING CHAIR J U M B O ™ USER MANUAL...
  • Page 2 Akces-Med employee or at specialized medical store! AKCES-MED. Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning. Product marked with the CE sign is Class I medical device, of...

  • Page 3: Table Of Contents

    JUMBO™ CONTENTS 1. The purpose of user manual....................5 2. Indications and contrindications for use................5 3. General characteristics of chair...................6 3.1 Standard equipment....................6 3.2 Additional equipment....................7 4. Size table..........................9 5. Description how to use chair....................10 6. Additional equipment......................12 6.1 Head stabilizing belt....................12 6.2 H harness........................14...
  • Page 4 JUMBO™ INTRODUCTION Positioning chair JUMBO™ is used for initial upright standing of children in the sitting position. It is made of ecologic wood and therefore it is eco-friendly. Despite its simplicity, it perfectly fulfils its function. It is safe for spastic as well as flaccid children with decreased muscle tone.

  • Page 5: The Purpose Of User Manual

    JUMBO™ 1. THE PURPOSE OF USER MANUAL The instruction manual contains basic information necessary to properly prepare the chair before use, use the chair, maintain and clean the chair. This user manual should be kept in an easily accessible place. The manual is intended for people who look after disabled users, as well as for doctors and physiotherapists handling the chair.

  • Page 6: General Characteristics Of Chair

    JUMBO™ 3. GENERAL CHARACTERISTICS OF CHAIR 3.1. Standard equipment 1. Frame with castors and brakes 2. Seat cushion 3. Backrest cushion 4. Independently adjustable chest supports 5. Independently adjustable pelvic supports 6. Hold&Pull vest 7. Abduction block 8. Foot rest with feet stabilizing belts www.akces-med.com...

  • Page 7: Additional Equipment

    JUMBO™ 3.2. Additional equipment Safety Stabilization SLK_101 Abduction- SLK_002 Belt for moving the adduction thight belts patients AM-P SLK_003 Soft cover for tray SLK_104 Adjustable headrest SLK_114 H Harness SLK_102 Head supporting belt SLK_123 Extended headrest SLK_340 Hexagon Pro™ BodyMap...
  • Page 8 JUMBO™ SLK_015/016/020 TANGO Wheel with brake www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 9: Size Table

    JUMBO™ 4. SIZE TABLE Unit Size 1 Symbol Size 2 Size 3 Measurement [cm] 110 - 180 Indicative user height* 70 - 130 100 - 150 [cm] Seat width [cm] Seat depth 13-31 19-38 29-54 Distance from pommel to back rest...

  • Page 10: Description How To Use Chair

    JUMBO™ 5. DESRIPTION HOW TO USE CHAIR A. The adjustment of abduction block - The possibility of front-back adjustment. Abduction block prevents from falling out from the chair. B. The adjustment of backrest tilt angle - backrest tilt angle depends on the type on dysfunction C.
  • Page 11 JUMBO™ E. The adjustment of chest pelottes - The possibility of side adjustment. It is also possible to adjust pelottes at any tilt angle. The adjustment of pelottes should be done according to the measurements of patient's chest. F. The adjustment of pelvic pelottes - The possibility of side adjustment.

  • Page 12: Additional Equipment

    JUMBO™ 6. ADDITIONAL EQUIPMENT Head supporting belt SLK_102 First, fit elements No. 1 and 3 to the user. To do this, cut them to the correct length. After cutting the strips to the appropriate length, connect the strip No. 3 with the connector No.
  • Page 13 JUMBO™ Then connect the two ends of the strip with the strip No. 2 in such a way that the indicated Velcro strip No. 2 is facing inwards. Then we fasten the strap on the headrest. www.akces-med.com +48 17 864 04 77...

  • Page 14: H Harness

    JUMBO™ H Harness SLK_114 Please look at point I so as to find out how to assembly vest (page 13). Initially, patient should not adjust vest tightly. Once vest is put on, it should be fastened with the aid of belts with plastic straps.
  • Page 15 JUMBO™ In order to adjust the width of the headrest, loosen the indicated screws with an Allen key (photo 16), set the headrest in the desired position, tighten the screws firmly. Make sure the headrest is locked in place. 6.4.

  • Page 16: Tray

    JUMBO™ 6.5. Soft cover for tray SLK_003 Please follow these steps so as to mount soft cover for tray: Adhere 5 adhesive Velcro tapes; ź Put soft cover in a way that its edges cover tray edges. ź Tray for manual therapy...

  • Page 17: Points Harness

    JUMBO™ 6 points safety vest SLK_125 Please follow these steps so as to mount 6 points vest: STEP 1. Put vest on the patient and then zip up both zipper and clamp situated at the front of the vest (fig.22-25); Adjust vest with the aid of Velcro tapes situated at the back of the vest (fig.

  • Page 18: Self-Leveling Tray

    JUMBO™ Self-leveling tray SLK_448 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 19: The Use Of Chair

    JUMBO™ 7. THE USE OF CHAIR JUMBO™ chair has to be used with compliance to guidelines included in this user manual. Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using JUMBO™...

  • Page 20: How To Use Chair

    JUMBO™ 7.2. How to use chair 1. Before use it is necessary to: · Unfold the device; · Place the device on even ground; · Make sure that all parts are serviceable, correctly mounted and stable; · Block brakes; ·...

  • Page 21: Sitting Position

    JUMBO™ 7.3. How to use chair The first use of the positioning chair JUMBO™ usually takes place at a rehabilitation, neurology, neurosurgery or orthopedics center. It is especially important to correctly adjust each element of the chair to the user regarding their condition and taking into account existing contractures and deformations.

  • Page 22: How To Use Vest

    JUMBO™ 7.4. How to use vest The vest provides posture support for wheelchair users as well as patients sitting in positioning chairs or other rehabilitation seats. When properly used, the vest allows the patient to adopt the correct sitting position for a longer period of time.
  • Page 23 JUMBO™ Instructions for the proper use of the vest: 1) Make sure that the patient is sitting in the best possible position: in the middle of the seat, · deeply in the seat in such a way that the patient's lumbar spine rests against ·...
  • Page 24 JUMBO™ 4) It should be remembered that any change of the inclination angle of the backrest, seat, foot support or tilt-in-space function might affect the effectiveness of the belts and supports! 5) Special attention should be paid to the use of stabilization elements or side supports.

  • Page 25: Safety Rules

    JUMBO™ 8. SAFETY RULES JUMBO™ chair has to be used in compliance with guidelines in this user manual. duct as well as patient before using JUMBO™ chair. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of chair and its size. It is also essential to familiarize with the guidelines described in user manual before using the device.
  • Page 26 JUMBO™ 2. It is forbidden to use chair for different purposes that it is intended to. 3. It is forbidden to use chair when it is damaged or any part is missing. 4. It is forbidden to leave the patient unattended.

  • Page 27: Terms Of Warranty

    Serious incidents involving this device should be reported both to manufacturer and to the competent authority in your country. 9. TERMS OF WARRANTY Akces-MED Sp. z. o. o sells products free from manufacturing defects or faults. § Manufacturer gives the purchaser 24-month guarantee from the date of purchase. All §...

  • Page 28: Maintenance And Cleaning

    JUMBO™ 10. MAINTENANCE AND CLEANING The positioning chair JUMBO™, which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The chair should be kept in a clean, dry and ventilated room. Maintenance and cleaning must be done at least once a month.
  • Page 29 In case of any damage, please contact the authorized retailer, where the chair was purchased, or the Akces-MED sp. z o. o. Customer Service Department. www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 30 JUMBO™ TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Before each use. General condition of Check: In case of any damage or defects, discontinue the use of the product and the product.
  • Page 31 JUMBO™ Frequency What should be checked? What should be done? Remarks Once a month. Wheel axles, quick connec- Check: Clean the wheels when dirty. tors (if applicable). if the wheels are rolling and if they are not In case of any damage or defects, ź...

  • Page 32: Labelling

    JUMBO™ 11. LABELLING 10.1. Symbole 11.1 SYMBOLS Declaration that the product Do not bleach meets the essential requirements Dry vertically Catalog number Serial number Prohibition of use without fastened safety belts Please read the manual instructions before Prohibition to leave the patient without...
  • Page 36 MANUFACTURER MANUFACTURER Akces-MED Sp. z o.o. Akces-MED Sp. z o.o. Jasionka 955B Jasionka 955B 36-002 Jasionka 36-002 Jasionka tel. (17) 864 04 70 tel. (17) 864 04 70 e-mail: export@akces-med.com e-mail: export@akces-med.com BDO: 000031619 BDO: 000031619 Authorised Dealer Authorised Dealer Date of issue: 09.12.2019...
