Akces-Med JOY 1 User Manual
  1. Manuals
  2. Brands
  3. Akces-Med Manuals
  4. Indoor Furnishing
  5. JOY 1
  6. User manual

Akces-Med JOY 1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
T A B L E
J O Y ™
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JOY 1 and is the answer not in the manual?

Questions and answers

Related Manuals for Akces-Med JOY 1

Summary of Contents for Akces-Med JOY 1

  • Page 1 T A B L E J O Y ™ USER MANUAL...
  • Page 2 Akces-Med Ltd. employee or at specialized medical store! Akces-Med Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning. Medical product first class according to the Regulation 93/42/EWG of European Parliament and Council regarding medical products.

  • Page 3: Table Of Contents

    5.6 Adjusting the tilt angle of the table............... 6. Assembly accessories....................6.1 Assembly of the table top adjustment kit............7. Safety rules........................8. Terms of warranty......................9. Labelling........................9.1 Symbols........................9.2 Sample data plate....................www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 4 If you have any questions or remarks, do not hesitate to contact with us: Medical adviser: mobile +48 516 183 883 Akces-MED Ltd.: ph. +48 17 864 04 70 e-mail: export@akces-med.com Thank you for purchasing our product! Before using the product, user is obliged to familiarize himself/herself with user manual.

  • Page 5: Purpose Of The User Manual

    JOY™ table becomes much easier. The large surface of the table top makes it possible have all the necessary items within the reach of the user. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 6: General Construction Of The Table

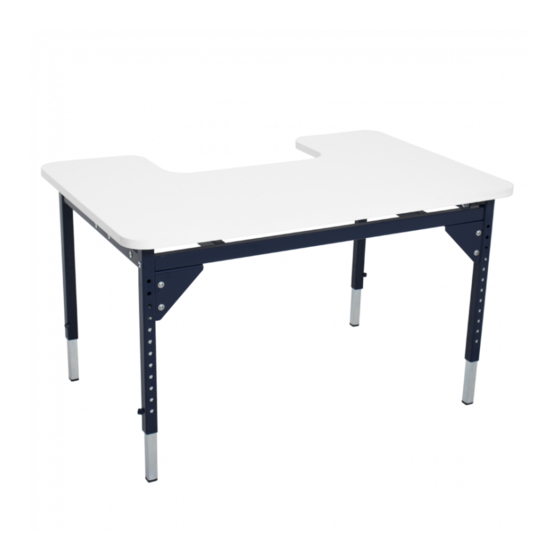

    3. GENERAL CONSTRUCTION OF THE TABLE 3.1 STANDARD EQUIPMENT Wide board Frame with adjustable height 3.2 VERSIONS JOY 1 CUT-OUT BOARD JOY 2 PLAIN BOARD JOY 3 TILT CUT-OUT BOARD JOY 4 TILT PLAIN BOARD 3.3 ACCESSORIES TABLE TOP TILT ADJUSTMENT FUNCTION SET www.akces-med.com...
  • Page 7 ™ 4. TABLE SIZE Measurements Symbol Dimension Unit JOY 1 JOY 2 JOY 3 JOY 4 [cm] width [cm] depth [cm] height 45 - 73 45 - 73 45 - 73 45 - 73 [cm] no applicable no applicable cut-out width...

  • Page 8: How To Use The Table

    Info icon – appears in the manual when you need to use the tools indicated in the assembly description. Warning icon – appears in the manual when you need to take special precautions. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 9: List Of Items

    5 - Right bracket 3 - Upper frame 6 - Table leg BOARD 1 - Cut-out board (for version JOY 1, JOY 3) 2 - Plain board (for version JOY 2, JOY 4) www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 10 20 - Cap of nut M6 15 - Socket screw with collar M6x12 21 - Conical screw M6x30 16 - Nut with collar M6 22 - Adjusting the tilting angle of the board www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 11: Assembly Of The Table

    ™ 5.2 ASSEMBLY OF THE TABLE hex key 6 hex key 4 spanner key 10 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 12 ™ www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 13 ™ 5.3 TABLE WITH THE TOP WITHOUT TILTING hex key 4 spanner key 10 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 14 ™ 5.4 TABLE WITH THE TOP WITH TILTING www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 15: Adjusting The Height Of The Table

    Press the button and move the table leg to the desired height. Tighten the screws. Before using the table, make sure that the legs of the table are at the same height and the screws are tightened. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 16: Adjusting The Tilt Angle Of The Table

    ™ 5.6 ADJUSTING THE TILT ANGLE OF THE TABLE Loosen the table top adjustment handles on the both sides of the table. Set the desired angle of the table top. Tighten the handles. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 17: Assembly Accessories

    15 - Socket screw with collar M6x12 16 - Nut with collar M6 21 - Conical screw M6x30 22 - Adjusting the tilting angle of the board hex key 4 Remove the table top locking plates. spanner key 10 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 18 ™ www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 19: Safety Rules

    The manufacturer takes full responsibility for the proper functioning of the table only when the user strictly follows the user manual. In case of any damages, it is essential to contact the person who sold you the product. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 20: Terms Of Warranty

    All defects revealed during warranty period will be repaired free of charge. All defects which appear after warranty period can be repaired only when the user will pay for < If product is damaged, please contact our dealer or Akces-MED Ltd. customer service < (ph. 17/864 04 77, e-mail: export@akces-med.com).
  • Page 24 MANUFACTURER Akces-MED Ltd. Jasionka 955B 36-002 Jasionka tel. +48 17 864 04 70 e-mail: export@akces-med.com BDO: 000031619 Authorised Dealer Date of issue: 14.09.2018 The last update: 11.09.2020 ©S ławomir W roński 2 020...
