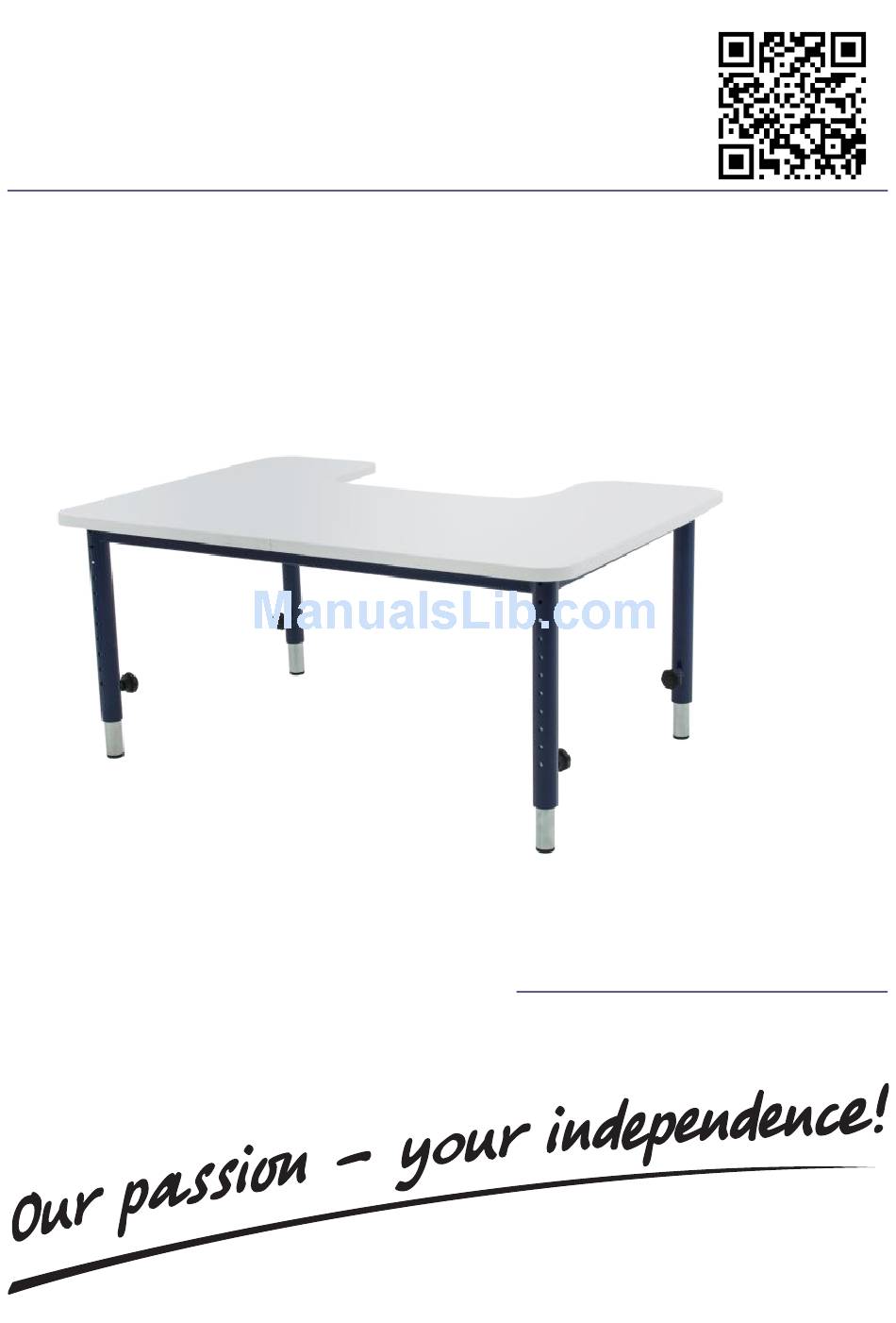

- Page 1 ™ TABLE USER MANUAL...
- Page 2 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store! CAUTION! AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Purpose of the manual .......................5 General construction of the table ..................6 Size table ..........................7 Assembly of the board......................8 Description of table adjustment ..................11 Safety rules ..........................13 www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com... - Page 4 INTRODUCTION Joy™ table is unique accessory to our Kidoo chair but not only. It can be used along with other chairs, school chairs or office chairs. All of this because of the height adjustment. Wide tabletop provides a lot of possibilities – this is a place to play, learn, to have a meals or to use a computer.
-
Page 5: Purpose Of The Manual
This manual contains basic information necessary for proper use of the JOY ™ table, preparating it for work, and also how to properly maintain and clean it. This manual should be stored in an easily accessible location. It is for designed for people who have direct care over people with disabilities and for physicians and physiotherapists using the equipment. -
Page 6: General Construction Of The Table
GENERAL CONSTRUCTION OF THE TABLE 2.1 Standard equipment: 1. Wide board 2. Frame with adjustable height Versions: JOY_001 JOY_002 JOY_003 JOY_004 www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com... -
Page 7: Size Table
SIZE TABLE Symbol Unit Dimension [cm] [cm] [cm] [cm] 40-70 Weight [kg] 11,2 [kg] Maximum user weight Note: Measurement tolerance range is +/- 1 cm / ½ in www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com... -
Page 8: Assembly Of The Board
5. Uderlay/washer 6.4 (x4) 6. M6 nut (x6) 7. Screw with Hexagon head - M6x 40 (x2) 8. Washer/underlay - PA 6.4 (x4) 9. Cap of nut M6 (x2) 10. Frame (x1) 11. Board (x1) www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com... - Page 9 Repeat this step on the other side. fig.1 fig.2 fig.3 -Then adjust the angle of inclination (el. 1) to the frame (fig.3) with screws (el. 4) (fig. 4). Repeat this step on the other side. fig.4 fig.5 www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...
- Page 10 (el. 4) (fig. 4). Repeat this step on the other side. fig.8 fig.7 fig.6 - Next adjust the angle of inclination to the board using the screws (el.3) (fig. 9,10). fig.9 fig.10 www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...
-
Page 11: Description Of Table Adjustment
- The final step is tightened tightly all of the knobs. fig.13 CAUTION! Before use it is necessary to make sure that all knobs for adjustments are stable and locked! www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com... - Page 12 - twist the handles, -adjust the correct angle of the board - next tighten the handles. fig.14 fig.15 JOY™ Table can be used with positioning chairs as well as with school chairs. fig.16 www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...
-
Page 13: Safety Rules
It is forbidden to make any changes concerning table’s structure due to the fact that it is dangerous and it results in loosing warranty. CAUTION! This device can be only used inside the buildings. www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com... - Page 16 PRODUCENT PRZEDMIOTÓW ORTOPEDYCZNYCH Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 70 www.akces-med.com e-mail: produkcja@akces-med.com Autoryzowany Przedstawiciel Data wydania: 25.08.2016 Data ostatniej aktualizacji: 24.04.2017...
