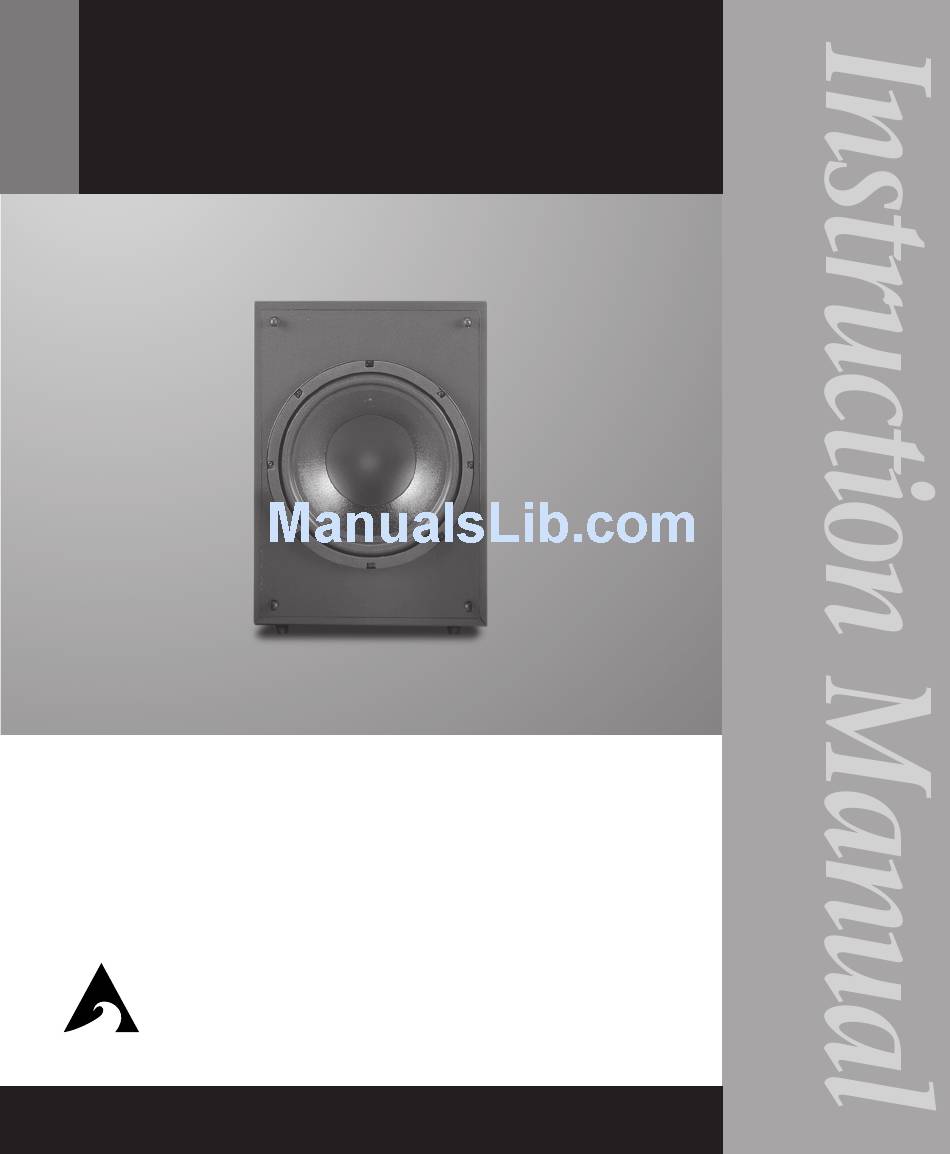

- Page 1 Model T70 PBM High Performance Powered Subwoofer Atlantic Technology ® N N O V A T I V E O M E H E A T E R 343 Vanderbilt Avenue Norwood, MA 02062 (781) 762-6300 www.atlantictechnology.com...
- Page 2 This sophisticated crossover’s steep upper end roll-off slope of 24 dB per octave allows for exceptional integration with most any brand or type of satellite speaker on the market. In particular, the 24dB/octave design makes the T70 PBM ideal for use with compact, bass restricted satellite speakers.
- Page 3 Important Note: If you are using a surround receiver/processor that includes its own filtered subwoofer output we recommend that you set the crossover control on the T70 PBM to 150Hz. Two line inputs, two line thruputs The thruputs allow daisy chaining of multiple subwoofers, or can act as a return path back to the processor.
-
Page 4: Connecting Your Subwoofer
Please consult your audio/video dealer for more specific information. High-level Output If desired, you can run a high level signal into the T70 PBM and directly out to the left and right front speakers. This method is primarily intended for systems without a built-in crossover or a dedicated subwoofer output. - Page 5 Optional Second Sub Woofer Receiver/Amplifier/Processor Pre Out Main In Pre Out Main In Pre Amp Internal External Pre Out Pre Out Main In Main In Atlantic Technology ® RIGHT INPUT INPUT Single Sub Woofer RIGHT RIGHT LEFT L/MONO OUTPUT INPUT L/MONO...
- Page 6 Model T70 PBM Example 3: Preamp Line Out/Low Level In for Y-adapters 2 Subwoofers Note that the L/MONO input is used on both sub- woofers. Instead of Y-adapters, you may also use the outputs to con- nect back to the...
-
Page 7: Power Connection
The T70 PBM is totally automatic in its operation. The automatic on/off circuitry will only activate the subwoofer in the presence of an audio signal from your audio/video system. After 7-12 minutes with no signal detected from the rest of the system, the amplifier will shut itself off and go into standby mode. -
Page 8: Placement And Operation
Model T70 PBM Placement and Operation Generally speaking, the best location for your new Subwoofer will be in the front of the room, in or close to a corner (Figure 2). Every room has its own unique sound characteristics, and flexibility in the exact placement of the subwoofer is always desirable. - Page 9 Using the Crossover Control When used with the complete T70 system, the T70 PBM crossover control should be set at two-thirds of its range as stated above. The goal is to optimize the performance of the system by ensuring that the subwoofer and satellites produce a cohesive and well integrated sound “picture.”...
- Page 10 Management option, which lets you set the front and rear speakers in a limited bandwidth (Small) or full range (Large) mode. All Atlantic Technology speakers are designed to be used in the Small setting with such a controller. However, when using high level connections, the Large setting should be used.
- Page 11 Model T70 PBM Specifications Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or designs at any time without notice. Dolby Digital, AC-3, Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation. DTS is a registered trademark of DTS Technology.
-
Page 12: For Future Reference
Model T70 PBM For Future Reference Record your speaker serial number and date of purchase here: Model Number The serial number is found on the back of the speaker near the connecting terminals. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous...
