Summary of Contents for Hitecsa ACHA 201

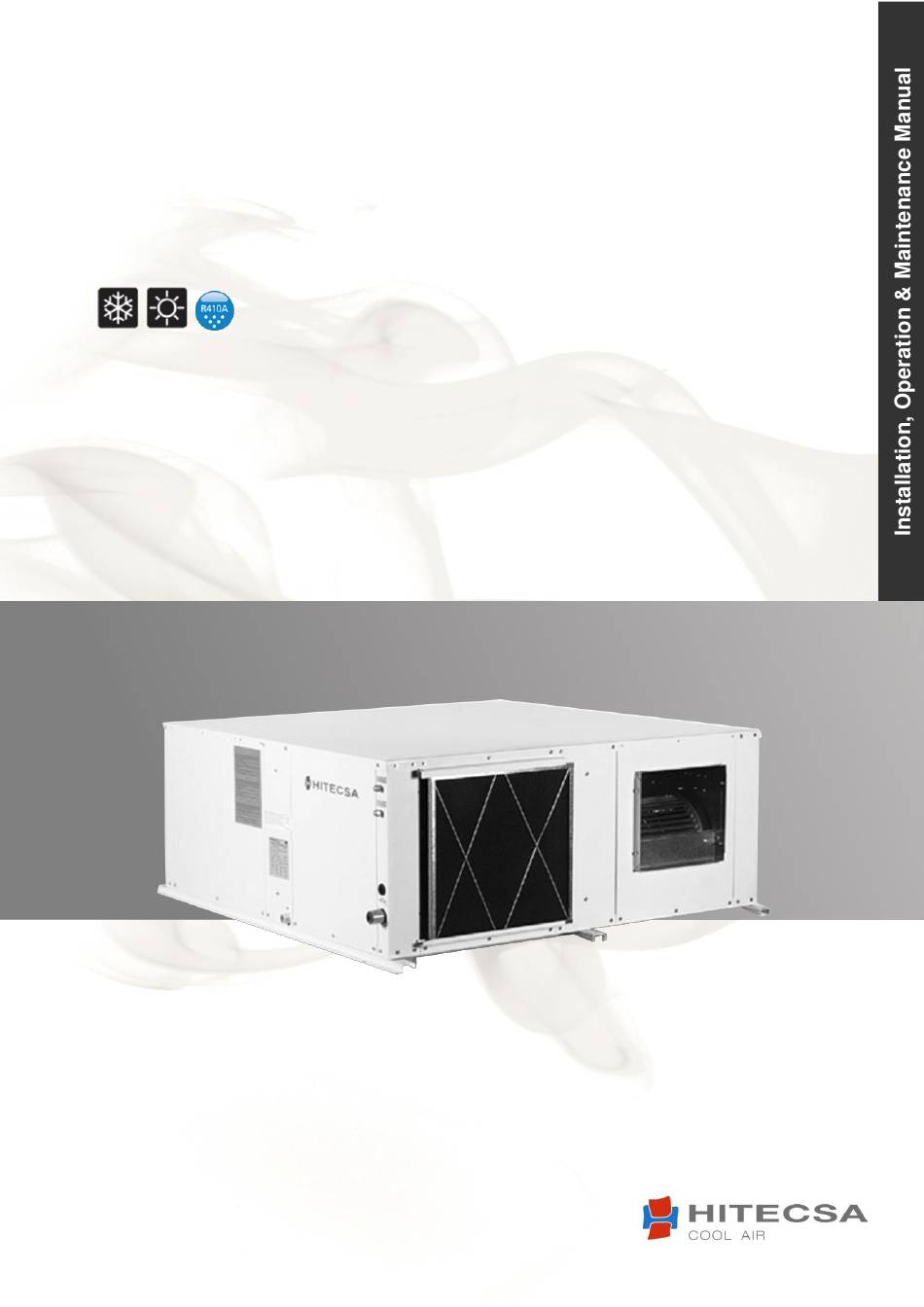

- Page 1 ACHA │ ACHBA Cooling only Heat pump PACKAGED HORIZONTAL COMPACT AIR - AIR Models: 201 │ 251 │ 351│ 371 │ 401 │ 501 │ 701 │ 721 │ 751│ 801 │ 1001│ 1201 Cooling Capacities: from 5,6 kW to 33,5 kW Heating Capacities: from 6,1 kW to 37,2 kW IOM ACHA-ACHBA_201a1201_208000_180901_EN...
- Page 2 Thank you for trusting the Hitecsa Products. Our company has been offering the market an extended range of specialized units for air conditioning and cooling installations for over 35 years. Our approach is based on efficiency, adaptability, usability and practical solutions.
-
Page 3: Table Of Contents
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR ACHA │ ACHBA INDEX INTRODUCTION ........................ 5 CONTENTS ........................5 REGULATIONS AND CERTIFICATIONS ................6 SAFETY PRECAUTIONS ...................... 6 TECHNICAL SPECIFICATIONS ..................... 8 TRANSPORT & RECEPTION ..................... 10 INSPECTION AT RECEPTION .................... 10 RIGGING .......................... - Page 4 ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR ACHA │ ACHBA OPERATION ........................20 BEFORE START UP ......................20 START UP ........................20 INDOOR FAN TRANSMISSION ADJUSTMENT..............21 OPERATING LIMITS ......................22 TH TUNE CONTROL ......................22 Screen ........................22 Start / Stop .......................
-
Page 5: Introduction
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INTRODUCTION CONTENTS Purpose of this Manual This manual and any other instructive document attached as refrigeration lines design, electrical diagrams, etc. have been written to allow a correct installation, commissioning and maintenance of the unit. Therefore it is essential to read the instructions with due attention. -
Page 6: Regulations And Certifications
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INTRODUCTION CONTENTS Periodic Inspections and Maintenance Carry out periodic inspections to detect possible damaged or broken pieces. If they are not repaired it could cause damage to people or stuff. Before executing any maintenance operation, cut off the unit power supply. -
Page 7: Safety Precautions
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR SAFETY PRECAUTIONS DANGER Do not touch or adjust the safety elements inside of any unit of the system. In repairs use only original spare parts and install them properly in the same position where old parts were placed. ... -
Page 8: Technical Specifications
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR TECHNICAL SPECIFICATIONS ACHA / ACHBA CAPACITIES Cooling capacity (1) 11,6 12,4 14,1 EER coefficient Heat capacity (2) 12,0 13,8 16,4 COP coefficient REFRIGERANT Type R-410A GWP(4) 2088 Load (5) COMPRESSOR Type Rotational Scroll 230.1 /... - Page 9 ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR TECHNICAL SPECIFICATIONS ACHA / ACHBA 1001 1201 CAPACITIES Cooling capacity (1) 17,2 18,5 20,8 21,9 28,4 33,5 EER coefficient 18,9 20,4 21,9 24,6 29,8 37,2 Heat capacity (2) COP coefficient REFRIGERANT Type R-410A GWP (4)
-
Page 10: Transport & Reception
Verify the correct voltage of the nameplate and make sure it is in accordance with local power supply. In case of any flaw or anomaly detected, please contact HITECSA. RIGGING Before moving the unit, make sure that all panels are well fixed. -
Page 11: Installation
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION WEIGHT DISTRIBUTION MODELS TOTAL 1001 1201 IOM ACHA-ACHBA_201a1201_208000_180901_EN... -
Page 12: Dimensions
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION DIMENSIONS Model 201 LEGEND 1. Compressor 2. Outdoor heat exchanger 3. Indoor heat exchanger 4. Electrical panel 5. Indoor turbine 6. Motor indoor turbine 7. Motor outdoor turbine 8. Outdoor turbine 9. -
Page 13: Model 351
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION DIMENSIONS Model 351 LEGEND Compressor Outdoor heat exchanger Indoor heat exchanger Electrical panel Indoor turbine Motor indoor turbine Motor outdoor turbine Outdoor turbine Air filter Indoor drainage Ø 3/4” External pressure intakes Main switch Electrical supply input Outdoor drainage Ø... -
Page 14: Modelos 701 - 801
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION DIMENSIONS Modelos 701 – 801 LEGEND Electrical panel Indoor heat exchanger Motor outdoor turbine Outdoor turbine Air filter Indoor turbine Motor indoor turbine Batería exterior Compressor 10. Indoor drainage Ø 3/4” 11. -
Page 15: Model 1001
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION DIMENSIONS Model 1001 LEGEND Outdoor drainage Ø 3/4” Electrical supply input Main switch Air filter Outdoor turbine Motor outdoor turbine Indoor heat exchanger Indoor turbine Motor indoor turbine Compressor Outdoor heat exchanger External pressure intake Electrical panel Indoor drainage Ø... -
Page 16: Service Area
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION SERVICE AREA Make sure to respect the following measurements for the correct operation of the unit. Fig. 3 WATER DRAIN The indoor drain unit (of condensate water) has 3/4” MPT connection. ... -
Page 17: Electrical Installation
Unit power supply should be within 10% of volts indicated on the unit nameplate. Damage caused by the start-up of the unit in an incorrect voltage line is not covered by Hitecsa’s warranty. When making electrical connections always use the unit wiring diagram. -
Page 18: Electrical Specifications
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION ELECTRICAL SPECIFICATIONS ACHA - ACHBA Voltage (50H 230.1 230.1 230.1/400.3+N 400.3+N 400.3+N 400.3+N Total power input (1) 14,6 20,4 12,1 15,3 15,4 14,6 Total current input (1) Total power input (2) 15,9 18,5 12,8... -
Page 19: Electrical Connections Diagram
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR INSTALLATION ELECTRICAL CONNECTIONS DIAGRAM Legend: Main power supply: 2 wires (single-phase 230V/1/50Hz) 4 wires (three-phase+neutral 400V/3+N/50Hz) Without neutral option: 3 wires (three-phase 400V/3/50hz) Ground Thermic magnetic circuit breakers curve D + differential Main switch TH Tune control. -
Page 20: Operation
The power supply of the unit must be as indicated on the serial plate. Damage caused by the start-up of the unit in an incorrect voltage line is not covered by Hitecsa’s warranty. The unit must not be supplied with any other voltage than that indicated on the serial plate. The power supply to the unit must be within 10% of the voltage indicated on the serial plate. -
Page 21: Indoor Fan Transmission Adjustment
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION INDOOR FAN TRANSMISSION ADJUSTMENT Adjust transmission in such a way that the indoor motor consumption comes to its normal value. If consumption is below nominal value it means that unit air flow is too low. Change fan speed: Motor Motor pulley... -
Page 22: Operating Limits
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION OPERATING LIMITS OUTDOOR AIR TEMPERATURE INDOOR AIR TEMPERATURE Dry temp. Wet temp. Dry temp. Wet temp. COOLING CYCLE ºC ºC ºC ºC Standard conditions Minimum conditions Maximum conditions HEAT CYCLE ºC ºC ºC... -
Page 23: System Modes
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION TH TUNE CONTROL System Modes Press the (Mode) button to toggle between the available operating modes. System modes available: – Cooling The display will show the icon – Heating The display will show the icon . -
Page 24: Alarms
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION TH TUNE CONTROL Time schedule Keep pressed the CLOCK button for, at least, 3 seconds until “CLOCK” is displayed. (Make sure thermostat time is correct by selecting “Time band”). In general, to move through the different displays, turn the central button and select by pressing it. -
Page 25: Diagnosis Alarms In Control
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION TH TUNE CONTROL DIAGNOSIS ALARMS IN CONTROL TH TUNE - Description of the Alarm Codes CODE DESCRIPTION ALb1 Probe alarm B1 disconnected (Outdoor temperature) ALb2 Probe alarm B2 disconnected (Supply temperature) ALb3 Probe alarm B3 disconnected (Discharge temperature comp. -
Page 26: Pgd1 Or Mini Pgd Thermostat
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 or Mini PGD THERMOSTAT Optional controller in standard models and as standard in models with accessories: Free Cooling, etc. There are two different versions of the software depending on the models: HIT005 version models with complements/ optionals, which require that the pGD1 controller comes as standard. -
Page 27: Time Schedule
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 or Mini PGD THERMOSTAT Time Schedule Important: In case of having a TH-TUNE thermostat, you will previously have to deactivate it in order to make any modification on the pGD1 safely. - Page 28 ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 or Mini PGD THERMOSTAT – Time schedule Schedule only change of Setpoint: Similar to ON-OFF type, but in this case the unit is not stopped. The change of setpoint depends on the time slots and days selected.
-
Page 29: Time Schedule (Hitsaa01)
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 or Mini PGD THERMOSTAT – Time schedule Example: From Monday to Thursday the num1 program activates, which starts up the machine at 6:30 and stops it at 11:00, starts again from 11:30 to 13:30 and from 15:00 to 19:00. Out of these hours the machine will start if the established limits are exceeded (in cooling mode from above, under in heating mode) Forced: In the display of the type of start-up press the key “Prg”... - Page 30 ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 o Mini PGD THERMOSTAT - Time schedule Time schedule Time schedule with pGD controller will only be possible when Th TUNE is not active. If you have connected pGD/Mini pGD and also Th Tune thermostat, time schedule will be made through this device.
-
Page 31: Local Network
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 o Mini PGD THERMOSTAT Local Network It is possible to have only one terminal to act over different machines connected forming a LOCAL NETWORK (LAN). Addressing of the units in the NETWORK: Connect the pGD terminal to the board that you want to address, disconnected from any network, pLan, Modbus, etc. -
Page 32: Alarms
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 or Mini PGD THERMOSTAT Information represented in the selected unit: Unit: 01 Represents the number of the unit which is connected the terminal to. 12:00 Shows the actual time (only if the clock card has been installed, this configuration is optional) Indicates the mode and the operation of the unit, cold and heat... - Page 33 ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR OPERATION pGD1 or Mini PGD THERMOSTAT Alarm Messages Description: pGD1 as standard (HIT005) ALARM MESSAGES pGD1 (as standard: HIT005) Message / Description Type Thermic compressor 1 Alarm Thermico compressor 2 Alarm Thermico fan C1 and/or High Pressure C1 Alarm Thermico fan C2 and/or High Pressure C2...
-
Page 34: Maintenance
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR MAINTENANCE WARNING! Before performing any service or maintenance of the unit, it is mandatory to disconnect and lock the system main switch to prevent anyone other than the technician from connecting the unit and causing personal injury. -
Page 35: Refrigerant Charge
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR MAINTENANCE REFRIGERANT CHARGE WARNING! Never use oxygen to pressurize system or purge lines for leak test. Oxygen reacts violently with oil, which can cause an explosion resulting in damage, personal injury or death. ... -
Page 36: Appendix: Safety Data R-410A
ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR APPENDIX: SAFETY DATA R-410A Refrigerant Data Safety Data: R-410A Toxicity Liquid spatters can cause freeze burns. It is impossible skin absorption could result dangerous. It can be slightly irritating. Liquid has a degrease effect. Defrost with water the affected Contact with Skin zones. - Page 37 ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR APPENDIX: SAFETY DATA R-410A Refrigerant Data Safety Data: R-410A Do not inhale concentrated vapors. Their concentration in the atmosphere should not exceed the minimum preset values and should be maintained General Precautions below the professional threshold.
- Page 38 ACHA / ACHBA PACKAGED COMPACT HORIZONTAL AIR - AIR IOM ACHA-ACHBA_201a1201_208000_180901_EN All rights reserved to make modifications to this catalogue without prior notice notice.
