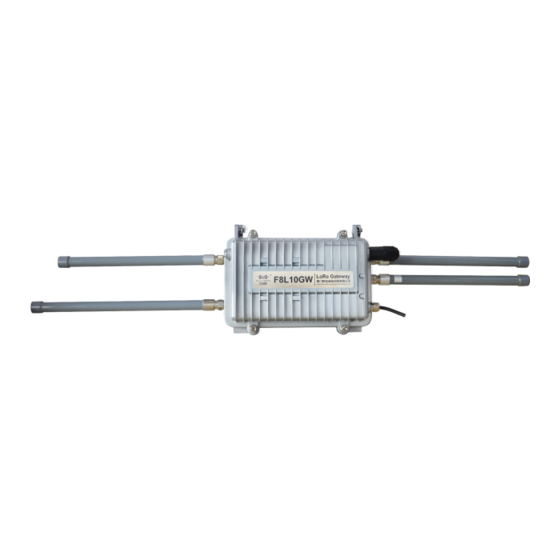

F8L10GW-L Outdoor LoRa
Gateway User Manual
F8L10GW-L Outdoor LoRa Gateway
This manual is suitable for following:
Version
Product:F8L10GW-L
User Manual
Model
F8L10GW-L-433
Frequency:410-441MHz
F8L10GW-L-470
Frequency:470-510MHz
F8L10GW-L-868
Frequency:850-950MHz
V1.0.0
Remark
Hotline: 400-8838 -199
Phone number:+86-592-6300320
Fax:+86-592-5912735
Website:en.four-faith.com
Address:Floor 11,A06 building, No.370,
Chengyi Street,Jimei District, Xiamen,
China.
Encryption
level
Total 32 page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F8L10GW-L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Four-Faith F8L10GW-L

Summary of Contents for Four-Faith F8L10GW-L

  • Page 1 Version Encryption F8L10GW-L Outdoor LoRa level Gateway User Manual V1.0.0 Product:F8L10GW-L Total 32 page F8L10GW-L Outdoor LoRa Gateway User Manual This manual is suitable for following: Model Remark F8L10GW-L-433 Frequency:410-441MHz F8L10GW-L-470 Frequency:470-510MHz F8L10GW-L-868 Frequency:850-950MHz Hotline: 400-8838 -199 Phone number:+86-592-6300320 Fax:+86-592-5912735 Website:en.four-faith.com...
  • Page 2 F8L10GW-L Outdoor LoRa Gateway User Manual Files Revised Record Data Version Description Author 2020.03.19 V1.0.0 Original version 2020.03.19 V2.0.0 Amend some parts, and add GPS part 2 / 32 Add：Floor 11,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China. http：//en.four-faith.com Hotline：400-8838-199 Fax：(+86)0592-5912735...
  • Page 3 All contents in the files are protected by copyright law, and all copyrights are reserved by Xiamen Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
  • Page 4 F8L10GW-L Outdoor LoRa Gateway User Manual Pole mounting Wall mounting Note：Please check device received , as different model may have difference for accessories and interface. 4 / 32 Add：Floor 11,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China. http：//en.four-faith.com Hotline：400-8838-199 Fax：(+86)0592-5912735...

  • Page 5: Table Of Contents

    F8L10GW-L Outdoor LoRa Gateway User Manual Contents Chapter 1 Introduction........................6 1.1 Overview..........................6 1.2 Product Feature........................6 1.3 Product Parameter......................6 Chapter 2 Installation........................8 2.1 Description..........................8 2.2 Package List.......................... 8 2.2.1. Package for wall mounting..................8 2.2.2. Package for pole mounting..................8 2.3 Installation Size........................

  • Page 6: Chapter 1 Introduction

    F8L10GW-L Outdoor LoRa Gateway User Manual Chapter 1 Introduction 1.1 Overview F8L10GW-L is outdoor IoT wireless communication gateway, which uses public wireless network to provide long distance data communication for users, meanwhile it can support LoRa wireless data transmission, and support WIFI wireless configuration and upgrade.
  • Page 7 F8L10GW-L Outdoor LoRa Gateway User Manual  IP Protection:IP65  Wireless management: WiFi wireless management and upgrade  Power supply: AC220, POE power(optional), DC 9~36V(optional)  Power Consumption: <7W  Electrical Performance Parameter Technical Standard Standard power input 100~240VAC Standard voltage output...

  • Page 8: Chapter 2 Installation

    F8L10GW-L Outdoor LoRa Gateway User Manual Chapter 2 Installation 2.1 Description It must to be installed correctly to reach F8L10GW-L designed features. It needs to be guided by engineer which is approved by our company to install this device usually. Note ：...

  • Page 9: Installation Size

    F8L10GW-L Outdoor LoRa Gateway User Manual 2.3 Installation Size F8L10GW-L Size 2.3.1 SIM/UIM Card 1.Power off device 2.Unscrew M6 screws, check Image 2.3.1 3.Insert SIM card like Image 2.3.2, please take care of SIM/UIM direction when install it. 4. It will auto pop up if push SIM/UIM when uninstall SIM/UIM.
  • Page 10 F8L10GW-L Outdoor LoRa Gateway User Manual Image 2.3.1 Image2.3.2 10 / 32 Add：Floor 11,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China. http：//en.four-faith.com Hotline：400-8838-199 Fax：(+86)0592-5912735...

  • Page 11: Wall-Mounted Installation

    F8L10GW-L Outdoor LoRa Gateway User Manual 2.3.2 Wall-mounted Installation 1. Drill 3 holes of ø14mm diameter, 60 mm depth according to the position of the bracket.  Requirement： 1、the wall should be flat; 2、must be in an open area 3、make sure no shield within 5 meters 2.Fixing the swell screws in the bracket.

  • Page 12: Pole-Mounted Installation

    F8L10GW-L Outdoor LoRa Gateway User Manual 2.4 Pole-mounted Installation 1. Select the suitable pole with ø70~90mm diameter.  Requirement: 1、must be in an open area 2、make sure no shield within 5 meters 2. Put the clamp into the pole, fix the clamp in the pole with screws.

  • Page 13: Antenna Installation

    F8L10GW-L Outdoor LoRa Gateway User Manual 2.5 Antenna Installation After F8L10GW is installed on the wall or pole, then install all fiberglass omnidirectional antennas (4G/WIFI/LoRa), make sure all antennas are tightened to get best signal. 2.6 LED Indicators The F8L10GW provides the following led indicators: including PWR, Sys, Online, SIM, LoRa, WAN, WIFI, Signal Strength.
  • Page 14 F8L10GW-L Outdoor LoRa Gateway User Manual Yellow light flash System work properly System Status Yellow light off System work improperly Blue light on WIFI on WIFI WIFI Status Blue light off WIFI off Green light on LoRa connect normal Green light off...

  • Page 15: Chapter 3 Configuration

    F8L10GW-L Outdoor LoRa Gateway User Manual Chapter 3 Configuration This chapter explains how to access to Web GUI of F8L10GW to complete device configuration. 3.1 Connect with the F8L10GW  Before configuration, you can connect the base station with a PC by WIFI or network cable Connect the base station by WIFI (based on WIN10 operator system);...
  • Page 16 F8L10GW-L Outdoor LoRa Gateway User Manual Connect the base station by network cable(based on WIN10 operator system)  16 / 32 Add：Floor 11,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China. http：//en.four-faith.com Hotline：400-8838-199 Fax：(+86)0592-5912735...

  • Page 17: Access To Configuration

    F8L10GW-L Outdoor LoRa Gateway User Manual 3.2 Access to configuration pages Four-Faith LoRaWAN base station provides web configuration management. You can access to the configuration pages follow these steps: 1.Open browser (such as google, IE or others) 2.Input “192.168.1.1” in the search bar, and then it will enter into the configuration login page when connect F8L10GW correctly.

  • Page 18: Basic Setup

    3.3.1.1 Basic Setup  WAN Setup There are 6 WAN connection types, include: Disable, Static IP, Automatic Configuration - DHCP, DHCP-4G, PPPOE and 3G/UMTS/4G/LTE. And F8L10GW-L provides wired ethernet (only support LAN port) and dhcp-4G(default) connection types. Wired ethernet connection type There have two configuration modes when you connect F8L10GW by network cable.
  • Page 19 F8L10GW-L Outdoor LoRa Gateway User Manual WAN IP Address Public IP address Subnet Mask Subnet mask parameter Gateway Gateway parameter Static DNS1 Static domain name server 1 Static DNS2 Static domain name server 2 Static DNS3 Static domain name server 3 Mode 2: Automatic Configuration –...
  • Page 20 F8L10GW-L Outdoor LoRa Gateway User Manual User Name Sim card account assigned by operator Password Sim card account assigned by operator APN number assigned by operator Turn on fixed WAN IP address function. And then fill in the WAN IP address...
  • Page 21 F8L10GW-L Outdoor LoRa Gateway User Manual Response the primary detection server IP address of F8L10GW when detect data Primary Detection packets online. This configuration item takes Server IP effect when “Keep Online Detection” set “Ping” or “Router” mode Response the backup detection server IP...

  • Page 22: Wireless Setting

    F8L10GW-L Outdoor LoRa Gateway User Manual 3.3.2 Wireless Setting For F8L10GW-l ,the wifi function are mainly used to configure the web settings and firmware upgrade 3.3.2.1 Basic setting Enable：enable WIFI。 Disable：disable WIFI。 Wireless mode：AP、Client mode、Ad-hoc、relay、Bridge work mode Wireless network mode：...
  • Page 23 F8L10GW-L Outdoor LoRa Gateway User Manual Mixed：This mode is contrary to the green mode, but will reduce the throughput. Wireless Network Name(SSID):The SSID is the network name shared among all devices in a wireless network. The SSID must be identical for all devices in the wireless network.

  • Page 24: Lora Application

    F8L10GW-L Outdoor LoRa Gateway User Manual 3.3.3 LoRa Application Users can config the parameters according to the specific applications Enable Lora ：Enable or disable lora function Work Mode: 2 kinds, TRNS、PRO,if using PRO mode, pls refer to the API user manual Through Address：lora Transmission node number of the target device, the operating mode to the...
  • Page 25 F8L10GW-L Outdoor LoRa Gateway User Manual and customized application protocal TCP(DTU)： Data transmit with TCP protocol , work as a DTU which has application protocol and customized application protocal Pure TCP ：Data transmit with standard TCP protocol TCP Server：Data transmit with standard TCP protocol, router is the server.

  • Page 26: Management

    F8L10GW-L Outdoor LoRa Gateway User Manual 3.3.4 Management 3.3.4.1 Management The Management screen allows you to change the Router's settings. The new password must not exceed 32 characters in length and must not include any spaces. Enter the new password a second time to confirm it.
  • Page 27 F8L10GW-L Outdoor LoRa Gateway User Manual Completely Enable info site：Enable or disable the login system information page Info site password protection：Enable or disable the password protection feature of the system information page Remote Access ：This feature allows you to manage the Router from a remote location, via the Internet.

  • Page 28: Factory Defaults

    3.3.4.3 Firmware Update Firmware Update ： update the new firmware to the F8L10GW.New firmware will be released on en.four-faith.com ,you can download it for free. Note：you can backup the F8L10GW settings before you factory the gateway in case of losing all the configuration.and pls don’t restart or pressing the reset button on the gateway in the process of upgrading 3.3.4.4 Backup...
  • Page 29 F8L10GW-L Outdoor LoRa Gateway User Manual Backup Settings ：You may backup your current configuration in case you need to reset the gateway back to its factory default settings.Click the Backup button to backup your current configuration. Restore Settings ：Click the Browse... button to browse for a configuration file that is currently saved on your PC.Click the Restore button to overwrite all current configurations...

  • Page 30: Appendix

    F8L10GW-L Outdoor LoRa Gateway User Manual Appendix The following steps describe how to setup Windows XP Hyper Terminal. 1. Press “Start” ”Programs” ”Accessories” ”Communications” ”Hyper Terminal” 2、Input connection name, choose “OK” 3. Choose the correct COM port which connects to modem, choose “OK”...
  • Page 31 F8L10GW-L Outdoor LoRa Gateway User Manual 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following 31 / 32 Add：Floor 11,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China.
  • Page 32 F8L10GW-L Outdoor LoRa Gateway User Manual Note : If the user is using the win7 system, you can download a win7 super terminal on the internet. Universal serial interface or other similar software. 32 / 32 Add：Floor 11,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China.
