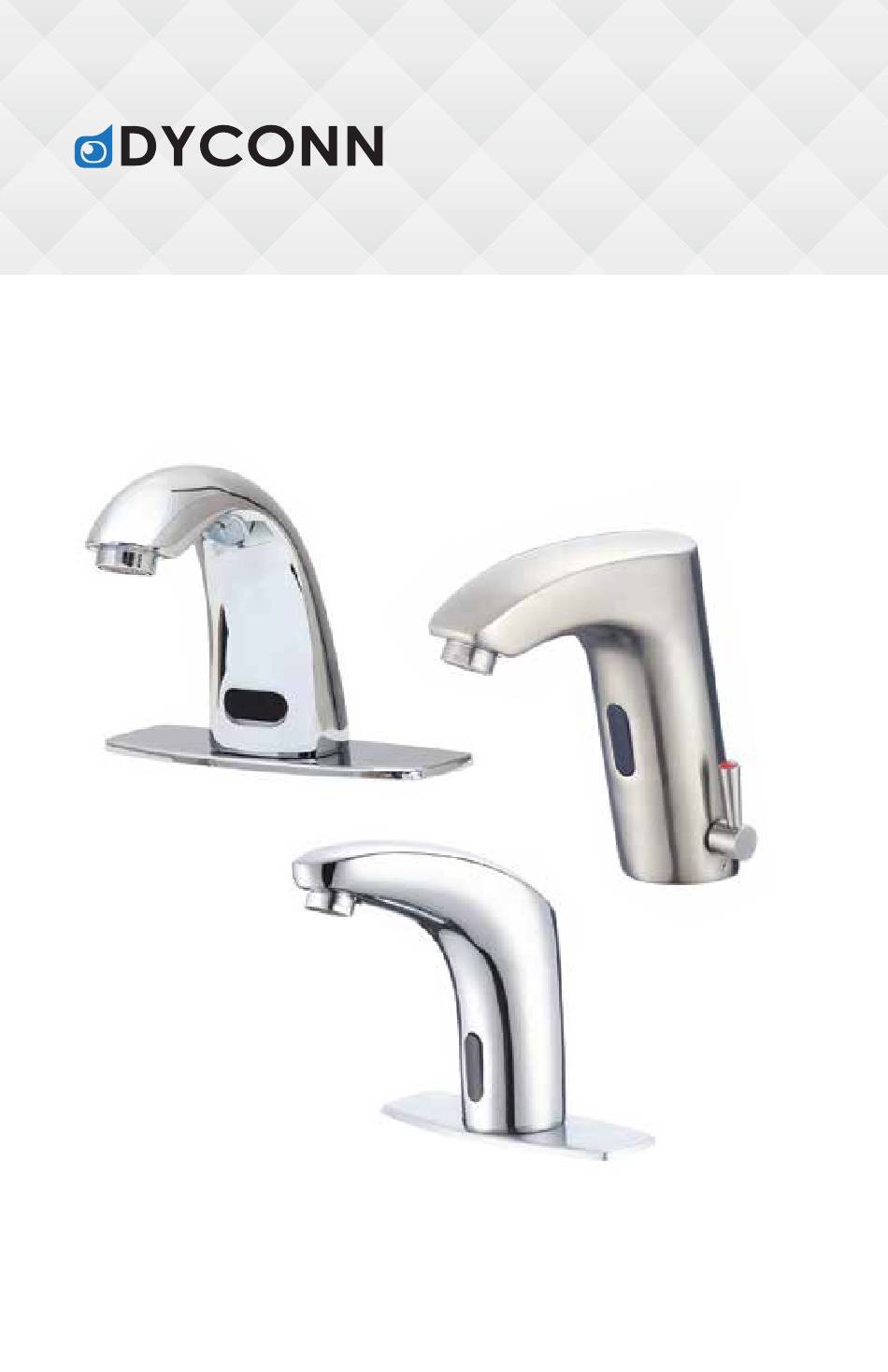

Sensor Faucet Manual

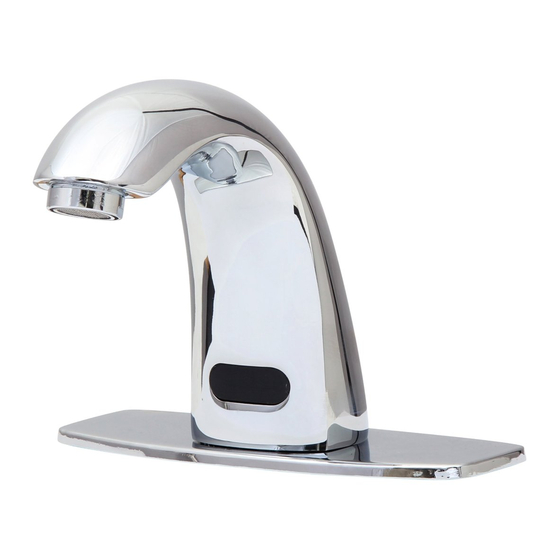

Models: HF1H21-ORB (Sylvan), HF1H21-CHR (Trinidad), HF1H21-BN
HF1H22-CHR (Heath), HF1H22-BN (Lawa)
HF1H23-CHR (Nelson), HF1H23-BN (Peace), HF1H23-ORB (Snake)
HF1H21
For easy installation of your Dyconn Faucet product please do the following:
- Thorougly read all instruction before installing the enclosed faucet.
- Read and observe all warnings, care, and maintenance information.
HF1H23
www.dyconnfaucet.com
Product Features:
Modern design faucets
Water saving control
Lower power consumption
Intelligent sensor control
Stable & Reliable
HF1H22
Advertisement
Table of Contents
Related Manuals for Dyconn HF1H21-ORB
Summary of Contents for Dyconn HF1H21-ORB
- Page 1 HF1H23-CHR (Nelson), HF1H23-BN (Peace), HF1H23-ORB (Snake) HF1H21 HF1H22 HF1H23 For easy installation of your Dyconn Faucet product please do the following: - Thorougly read all instruction before installing the enclosed faucet. - Read and observe all warnings, care, and maintenance information. www.dyconnfaucet.com...
-
Page 3: Operation And Maintenance
Product Description & Information OPERATION AND MAINTENANCE. CAREFULLY READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND USE PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE Do not place or install the product under direct sunlight. Long exposure to sunlight may damage the product. Do not place any reflective items (ie: mirrors) directly opposite of faucet sensor. - Page 4 Product Diagram and Parts Single inlet faucet Models: HF1H21-ORB (Sylvan), HF1H21-CHR (Trinidad), HF1H21-BN Hot & cold inlet faucet Models: HF1H22-CHR (Heath), HF1H22-BN (Lawa) www.dyconnfaucet.com...
- Page 5 Product Diagram and Parts Single inlet faucet Models: HF1H23-CHR (Nelson), HF1H23-BN (Peace), HF1H23-ORB (Snake) 1. Sensor faucet body 5. Rubber gasket 2. braided hose 6. Stainless steel gasket 3. Self-tapping screw 7. Nut 4. Plastic sleeve 8. Control box Battery installation 1.
-
Page 6: Control Box
Control box Single inlet control box Models: HF1H21-ORB (Sylvan), HF1H21-CHR (Trinidad), HF1H21-BN HF1H23-CHR (Nelson), HF1H23-BN (Peace), HF1H23-ORB (Snake) Single inlet control box Terminal port Clean filter : 1. Disconnect the power plug 2. Shut off waterway. Power plugs 3. Remove filter screen with pliers. - Page 7 Installation - Single inlet faucet Single inlet faucet Models: HF1H21-ORB (Sylvan), HF1H21-CHR (Trinidad), HF1H21-BN HF1H23-CHR (Nelson), HF1H23-BN (Peace), HF1H23-ORB (Snake) 1. Connect with water inlet hose 2. Put the hoses into basin sink hole 3. With the sink between the faucet body and its attached parts, secure gaskets and nuts.
- Page 8 5. Connect faucet hose to outlet part on control box. Connect inlet port on control box to pretempered water supply. Connect faucet sensor power cord to control box. Make sure everything is secured then connect control box power cord to power outlet. ***Optional: hot/cold water mixing valve can be purchased .
- Page 9 Installation - Hot & Cold faucet Hot & cold inlet faucet Models: HF1H22-CHR (Heath), HF1H22-BN (Lawa) 1. Connect with water inlet hose 2. Put the hoses into basin sink hole 3. Fix the sensor faucet body with filler pieces and nut 4.
-
Page 10: Troubleshooting
Sensor Adjustment & Troubleshooting Sensor Adjustment 1. Turn off the water circuit and remove the faucet from the counter sink . 2. Use clamp pliers to pick off the sponge that is at the back of the sensor display. 3. Remove both the controller and potentiometer and gently adjust it. Turning clockwise will increase the sensor distance, turning anti-clockwise will decrease the sensor distance. -
Page 11: Manufacturer Limited Warranty
Dyconn Faucet as defective will be repaired or replaced (with a product of equal value) at the company's discretion. If Dyconn Faucet is not able to replace or repair the product, Dyconn Faucet may elect to refund the original purchase price to the original purchaser in exchange for the product's return.
