Sensor Faucet Manual

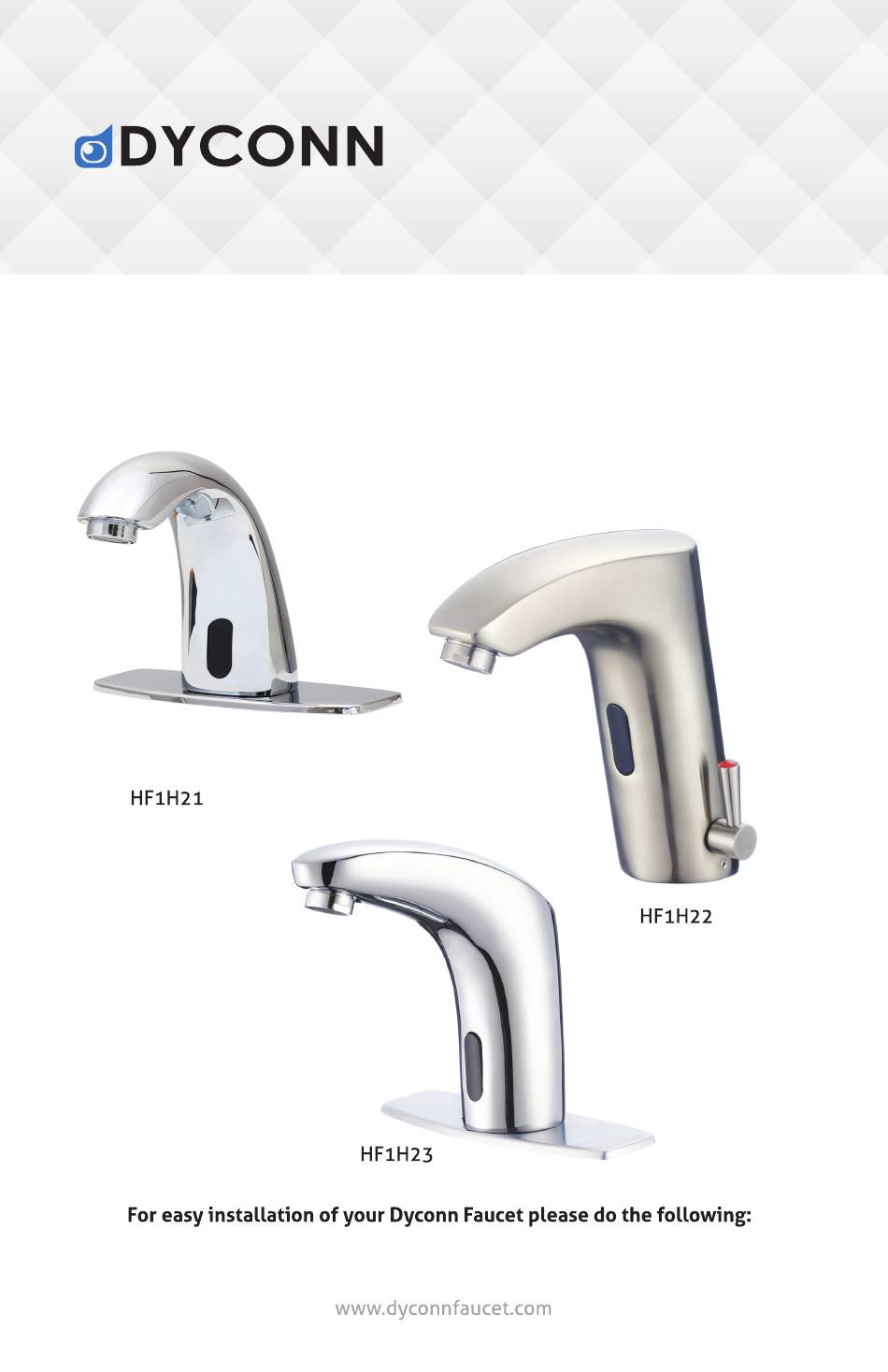

Models: HF1H21-ORB (Sylvan), HF1H21-CHR (Trinidad)
HF1H22-CHR (Heath), HF1H22-BN (Lawa)
HF1H23-CHR (Nelson), HF1H23-BN (Peace), (HF1H23-ORB) Snake
For easy installation of your Dyconn Faucet please do the following:
- Thoroughly read all instructions before installing the enclosed faucet.
- Read and understand all warnings, care and maintenance information
Product Features:
Modern design faucets
Water saving control
Lower power consumption
Intelligent sensor control
Stable & Reliable
Advertisement
Related Manuals for Dyconn Sylvan Trinidad
Summary of Contents for Dyconn Sylvan Trinidad
- Page 1 HF1H22-CHR (Heath), HF1H22-BN (Lawa) HF1H23-CHR (Nelson), HF1H23-BN (Peace), (HF1H23-ORB) Snake For easy installation of your Dyconn Faucet please do the following: - Thoroughly read all instructions before installing the enclosed faucet. - Read and understand all warnings, care and maintenance information...
-
Page 3: Operation And Maintenance
Product Description & Information OPERATION AND MAINTENANCE. CAREFULLY READ THIS INSTRUCTION MANUAL BEFORE INSTALLING AND USING PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE FOR PRODUCT Do not place or install the product directly under the sun or long exposure of sunlight Do not place any catoptric items such as mirror to the opposite wall of the inductive window. - Page 4 Product Diagram and Parts Single inlet faucet Models: Hot & cold inlet faucet Models:...
-
Page 5: Battery Installation
Product Diagram and Parts Single inlet faucet Models: 1. Sensor faucet body 5. Rubber gasket 2. Braided hose 6. Stainless steel gasket 3. Self-tapping screw 7. Nut 4. Plastic sleeve 8. Control box Battery installation 1. When the battery is out, the light sensor will flash in every 2 to 3 sec. 2. -
Page 6: Control Box
Control Box Single inlet control box Single inlet control box Terminal port Clean filter : 1. Disconnect the power plug. 2. Turn off waterway. Power plugs 3. Take out filter screen with a plier. 4. Clean filter screen gently with running water and replace the outlet screen. - Page 7 Installation - Single inlet faucet Single inlet faucet 1. Connect with water inlet hose. 2. Put the hoses into basin sink hole 3. Fix the sensor faucet body with filler pieces and nut. 4. Hang the control box on the wall fixture a.
- Page 8 5. Connect faucet hose to outlet part on control box. Connect inlet port on control box to pretempered water supply. Connect faucet sensor power cord to control box. Make sure everything is secured then connect control box power cord to power outlet. 6.
- Page 9 Installation - Hot & Cold faucet Hot & cold inlet faucet Models: 1. Connect with water inlet hose. 2. Put the hoses into basin sink hole. 3. Fix the sensor faucet body with filler pieces and nut. 4. Connect the hot and cold flexible hoses to water supply valves.
-
Page 10: Troubleshooting
Sensor Adjustment & Troubleshooting Sensor Adjustment 1. Turn off the water circuit and remove the faucet from the counter sink . 2. Use a clamp pliers to pick off the sponge which is at the back of the sensor display. 3.
