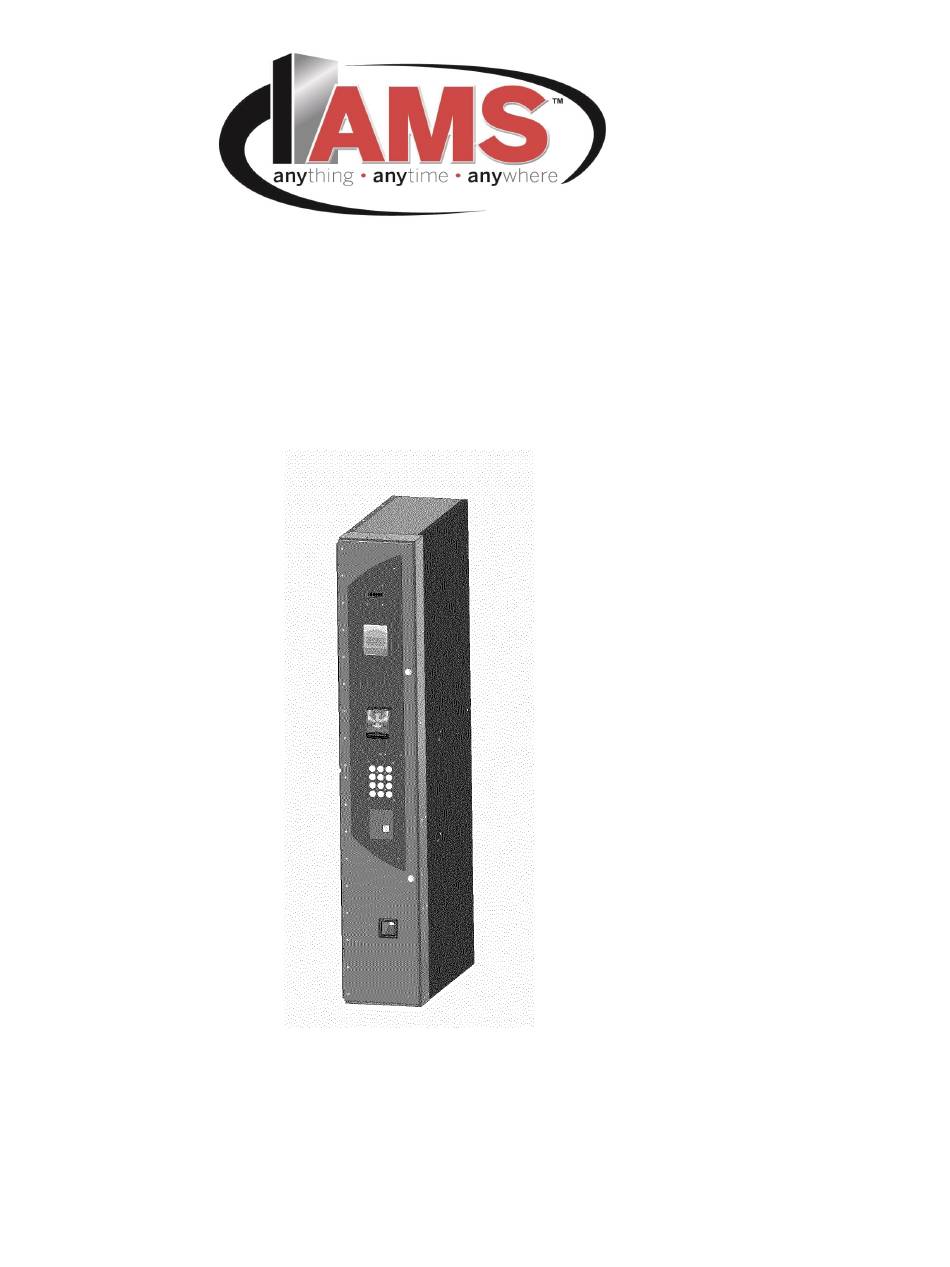

OPERATION AND SERVICE
KCU CONTROL BOX
AUTOMATED MERCHANDISING SYSTEMS INC.
255 WEST BURR BLVD.
KEARNEYSVILLE, WV 25430
(304) 725-6921
(304) 725-6983 FAX
www.amsvendors.com
info@amsvendors.com
MANUAL,
INTERNATIONAL A.M.S. S DE RL DE CV
KM. 9 CARR. AL CASTILLO NO. 8200
MPIO. DE EL SALTO, JAL. MEXICO 45680
5233-36-88-07-17
5233-3-6-88-13-14 FAX
www.amsint.com.mx
sericio@amsint.com.mx
L0243A
L0243 REV A
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMS KCU and is the answer not in the manual?

Questions and answers

Related Manuals for AMS AMS KCU

Summary of Contents for AMS AMS KCU

  • Page 1 L0243A OPERATION AND SERVICE MANUAL, KCU CONTROL BOX AUTOMATED MERCHANDISING SYSTEMS INC. INTERNATIONAL A.M.S. S DE RL DE CV 255 WEST BURR BLVD. KM. 9 CARR. AL CASTILLO NO. 8200 KEARNEYSVILLE, WV 25430 MPIO. DE EL SALTO, JAL. MEXICO 45680 (304) 725-6921 5233-36-88-07-17 (304) 725-6983 FAX...
  • Page 2 Lights, plastic doors, and painted surfaces are not covered by this warranty. Should any part prove defective within the warranty period, AMS will repair or replace (at its option) the defective component. AMS will provide normal ground shipment for parts replaced under warranty. This warranty does not cover the labor or other costs associated with removal and reinstallation of a defective component.

  • Page 3: Table Of Contents

    L0243A TABLE OF CONTENTS 5 MAINTENANCE TITLE Page CLEANING THE CABINET LIMITED WARRANTY MANUALLY UNLOCKING DOORS PUBLICATION NOTICE 6 WIRING DIAGRAM 1 INTRODUCTION WIRING DIAGRAM MODEL IDENTIFICATION Power-down before disconnecting anything! GENERAL SPECIFICATIONS Operating Environment Cabinet Dimensions Shipping Weight Unit Capacity TABLE OF FIGURES Power Requirements Patent Disclosure...

  • Page 4: Introduction

    INTRODUCTION AMS KCU An example of the numbering system in use is as follows: 1-1602-1156 Manufacturer Model Congratulations on the purchase of your new AMS KCU control box. AMS machines are designed, tested, and built to provide Built Year Month...
  • Page 5 L0243A 1 INTRODUCTION 10.854 65.848 28.897 Figure 1.2 AMS KCU Dimensions (For Reference Only)

  • Page 6: Safety

    L0243A SAFETY injury or death. • Always test the outlet for proper voltage, polarity COMMITMENT TO SAFETY and grounding before plugging in the control box. • Always disconnect power at the receptacle before Automated Merchandising Systems Inc. is committed to servicing.

  • Page 7: To Safely Move Machine

    See MOUNTING THE LOCKER TO THE WALL in Section 3. The AMS control box bearing the ETL mark has been tested and complies with • Never rock or tip the locker. It must be kept horizontal for safe operation.

  • Page 8: Preparation And Installation

    The VMC (control board), display, keypad, and If the control box is unmounted, or needs to be transferred, the some harnesses are similar to those used in other AMS vendors. following procedure may be used . There are two plates sandwiched between the lower legs and The high-voltage components are located behind the front panel: the cabinet.

  • Page 9: Lower Support Plates

    Connect the LED power connector to the small connector to the right of the tray harness connections. 8. Enter the Service mode in the AMS software, by pressing the yellow button in the bottom right corner of the control board.

  • Page 10: Troubleshooting

    L0243A TROUBLESHOOTING MACHINE TROUBLESHOOTING CHART IF A REPLACEMENT PART IS NECESSARY, PLEASE CONTACT YOUR DISTRIBUTOR The following troubleshooting chart may be used to find quick remedies for electrical or mechanical failures in the vendor. Symptom Possible Cause Remedy Starting at rear of locker, check for 12VDC at LED lights not working Broken/disconnected harness the connector, working back to LED power...

  • Page 11: Cleaning The Cabinet

    L0243A MAINTENANCE CLEANING THE CABINET Clean the Locker cabinet as necessary using mild household cleaners and water. Apply the cleaning solution to a cloth or sponge and gently wipe the Locker surfaces to clean. Do not use chemicals or solvents. These can dam- age the paint and plastic trim.

  • Page 12: Wiring Diagram

    L0243A WIRING DIAGRAM Figure 6.1 Wiring Diagram...

  • Page 13: Wiring Diagram

    L0243A WIRING DIAGRAM Figure 6.1 Wiring Diagram (Cont)
