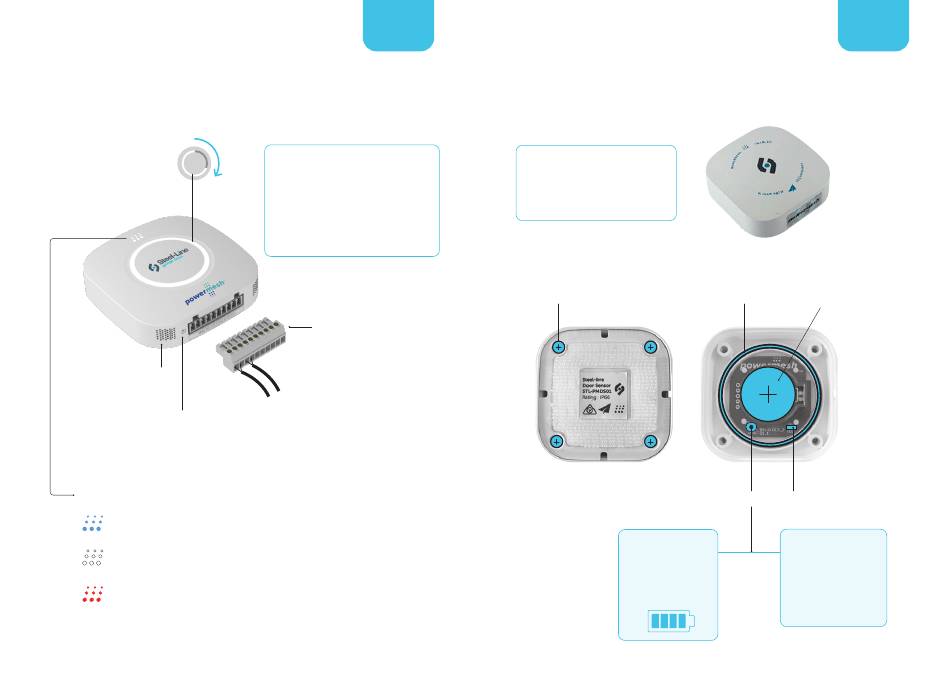

Garage Controller
The controller wires to your garage door motor.
It can control up to 2 door motors.
Door Position Light Ring
The light ring changes
when the door is moving.
Temperature &
Humidity Sensor
Do not cover the
sensor holes.
Reset Button
Press and hold to
reset the device.
Powermesh Indicator Status
Device is operational and ready to be set up on a network.
Blue
Use 'add device' in Zimi to finish setting it up.
Device has been set up on a network and is operational.
White
To set up on a different network, simply RESET the device.
Device has a critical fault, try updating the firmware.
Red
If unsuccessful, the unit will have to be replaced.
5
Specifications
Communication: Bluetooth ®.
Power: 24VDC <500mA.
Outputs: 2 x dry connect relays for
motor bell press connection.
Inputs: 2 x Photo Eye Beams (PEB)
Refer to the compatibility list.
Quick Connector
Allows for easy wiring
and simply plugs in.
See Wiring in Section 8
.

Door Sensor

The door sensor tracks the door position.
Each door requires a sensor.
Specifications
Communication: Bluetooth ®.
IP rating: IP66.
Battery: CR2450.
Insert the battery
1. Remove screws to take 2. Make sure the O-ring
off the back cover. seal is in place.
Battery test.
Press once.
The LED light will
flash to show the
Battery Power.
Low 1 2 3 4
6
3. Insert battery with
+ symbol as shown.
Push button LED light
Reset the Sensor.
Press and hold
for 6 seconds.
Once the LED light
flashes rapidly,
release to reset.
Full
