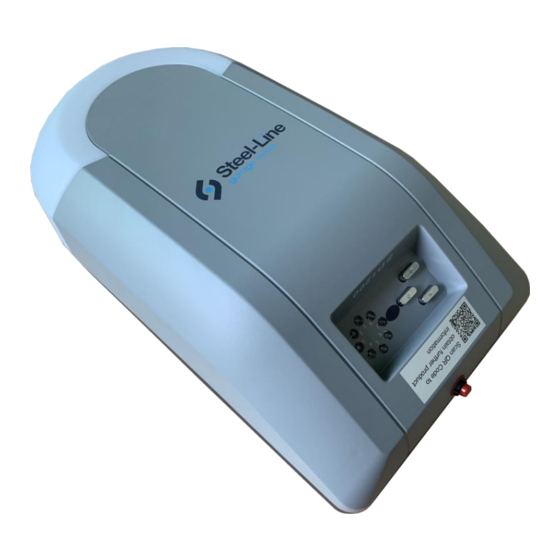

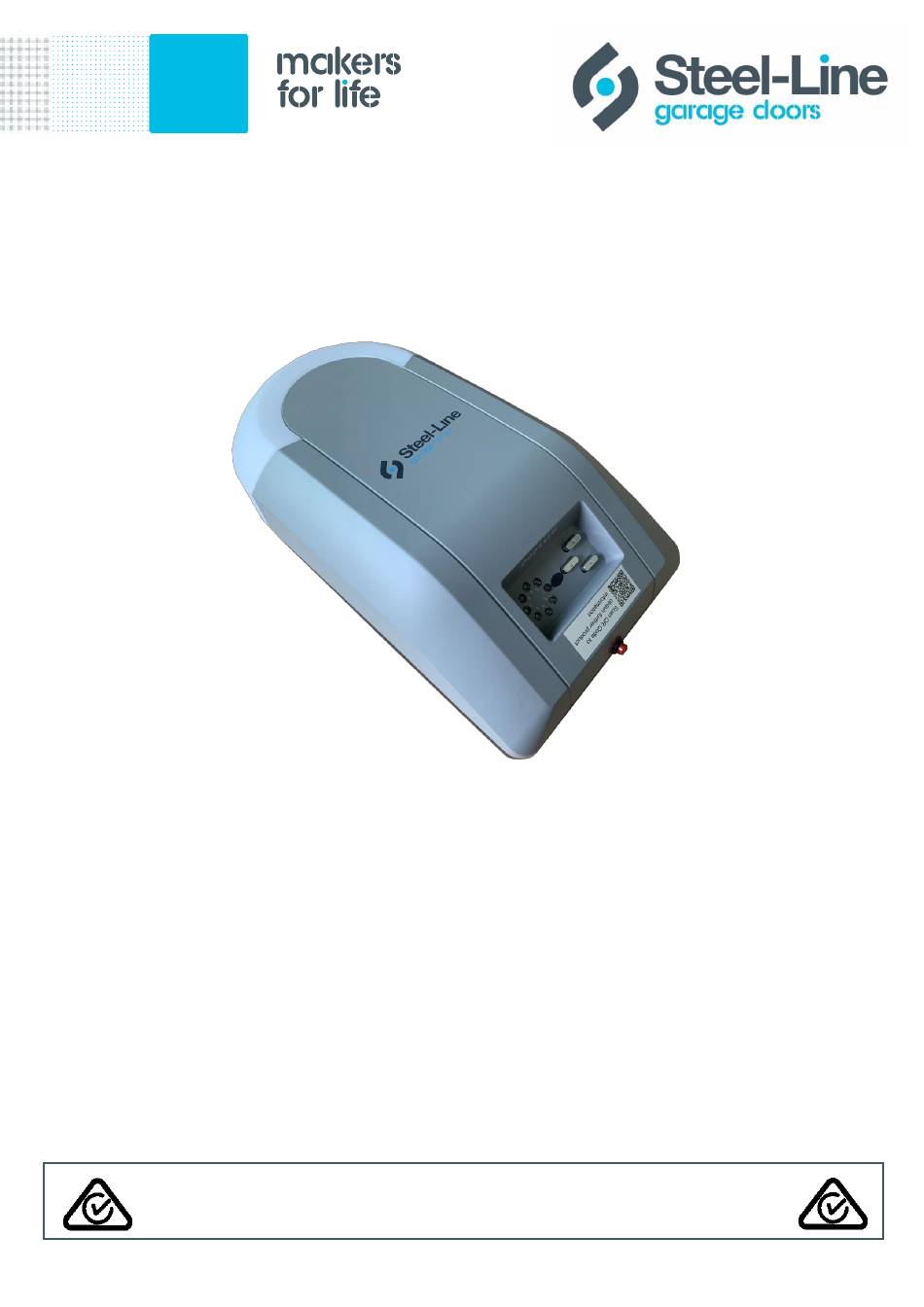

- Page 1 SD1200 Sectional Garage Door Opener Installation and Operating Instructions THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THIS MANUAL THOROUGHLY V2.09/19...
-
Page 2: Table Of Contents
SD1200 - Sectional Garage Door Opener Contents Safety Reversal Force Adjustment ....10 User Information ..........1 Coding Wireless Transmitters ......11 Important Safety Instructions ......2 Safety Beam Installation ........12 Package Contents ........... 3 Auto-Close Timer ..........13 Rail Details ............ -
Page 3: Important Safety Instructions
SD1200 - Sectional Garage Door Opener Important Safety Instructions FAILURE TO COMPLY WITH THESE SAFETY RECOMMENDATIONS AND LOCAL SAFETY REGULATIONS MAY RESULT IN SERIOUS INJURY, DEATH OR DAMAGE TO PROPERTY PLEASE READ CAREFULLY AND ENSURE THAT ALL SAFETY RECOMMENDATIONS AND REGULATIONS ARE CONSIDERED AND ADHERED TO. -
Page 4: Package Contents
SD1200 - Sectional Garage Door Opener Package Contents Garage Door Opener: (1) SD1200 opener/powerhead (9) Hanging bracket (2) (2) Hand transmitter (2) (10) Rail bracket (2) (3) Wall transmitter (11) Hardware bag (4) Door bracket (12) Door safety label (5) Lintel/Ceiling bracket... -
Page 5: Assembly & Installation
SD1200 - Sectional Garage Door Opener Assembly & Installation STEP 1. RAIL & TROLLEY ASSEMBLY Remove packing materials from the rail and retrieve trolley assembly (15) from carton containing the opener. Locate the base section already installed in the rail and using the four screws provided fix the trolley to this section in the rail. - Page 6 SD1200 - Sectional Garage Door Opener STEP 5. Install the lintel/ceiling bracket (5). You can attach the lintel bracket either to the lintel above the door (head) or the ceiling. With the door closed, mark the centerline of the door extended onto lintel wall above door with a vertical line.
- Page 7 SD1200 - Sectional Garage Door Opener STEP 9. Fasten door bracket (4) securely to frame or structural support. Bracket should be mounted along the centerline at the top of the panel. PARTS REQUIRED STEP 10. With door fully closed insert the curved door arm (6) into the door bracket and secure with clevis pin (11) and R-clip (11).
-
Page 8: Control Panel
SD1200 - Sectional Garage Door Opener Control Panel Pushbuttons LED Indicator Lights “P” Button (Programming) ▪ Provides visual feedback during programming ▪ Initiates programming modes & saves the settings ▪ Shows that power is applied to the unit “+” Button (Up/Open) ▪... -
Page 9: Programming Instructions
SD1200 - Sectional Garage Door Opener Programming Instructions ▪ IMPORTANT- Before programming the door disengage the trolley and run the door up and down manually to ensure that it runs smoothly and is correctly balanced. ▪ Do not adjust force to compensate for an incorrectly balanced, binding or sticking door. -
Page 10: Safety Reverse Test
SD1200 - Sectional Garage Door Opener STEP 5. ❖ Press and hold the “−” button to bring the door to the desired closed position ❖ At this point you can make slight adjustments up “+” and down “−“ until the door is in the desired position STEP 6. -
Page 11: Safety Reversal Force Adjustment
SD1200 - Sectional Garage Door Opener Safety Reversal Force Adjustment ▪ CAUTION- Force settings are automatically set during the programming phase, after travel limit setting procedure on pages 8-9. ▪ Too much force will cause improper operation of the safety reversal mechanism and may cause serious injury. -
Page 12: Coding Wireless Transmitters
SD1200 - Sectional Garage Door Opener Coding Wireless Transmitters The two (2) hand transmitters (remotes) and wireless wall switch supplied with your opener are preprogrammed at the factory. Additional transmitters can be coded as follows: 1) Press and hold the “P” and “+” buttons until all lights turn on and LED 7 flashes 2) Press the “+”... -
Page 13: Safety Beam Installation
SD1200 - Sectional Garage Door Opener Safety Beam Installation (Optional Accessory) Note: This accessory must be used for all installations SAFETY BEAM KIT PARTS where the closing force is greater than 400N (40kg of force) as measured at the bottom of the door. It is highly recommended that safety beams are included with all installations. -
Page 14: Auto-Close Timer
SD1200 - Sectional Garage Door Opener Auto-Close Timer Safety Beams must be installed to activate this feature. When the Auto-Close Timer is enabled the door will close automatically after a preset period of time (2.5 minutes). During the door open waiting period the LED courtesy lights will remain on. If an obstruction is detected during closing, the door will fully open and the Auto-Close Timer will begin again. -
Page 15: Service Counter
SD1200 - Sectional Garage Door Opener Service Counter IMPORTANT- The garage door and opener must be professionally maintained and serviced regularly in accordance with the instructions provided with the product, as a minimum every 12 months or 1,500 cycles. This opener is pre-programmed with a service due reminder that will provide an audible indication that a service is recommended after 1,500 cycles. -
Page 16: Technical Specifications
SD1200 - Sectional Garage Door Opener Technical Specifications Opener Specifications Electrical Input 240V, 50Hz Standby Power Travel Time 120mm/s Max Door Weight 240kg Spring Balanced Weight 35kg Max Door Area 18.5m² Motor Type 24V DC Max Driving Force 1200N Dimensions... -
Page 17: Troubleshooting
SD1200 - Sectional Garage Door Opener Troubleshooting • Does the opener have power? The opener does not work from • If there is no light, check the fuse box or circuit breaker. either door control or remote hand • Check plug and contact an electrician if the power point is transmitter. -
Page 18: Warranty
Steel-Line Garage Doors reserves the right to change our warranty, suitability of the Product and accepts no responsibility for terms and conditions at any time without notice. We will constantly unauthorised installation.
