6 Electrical Connections

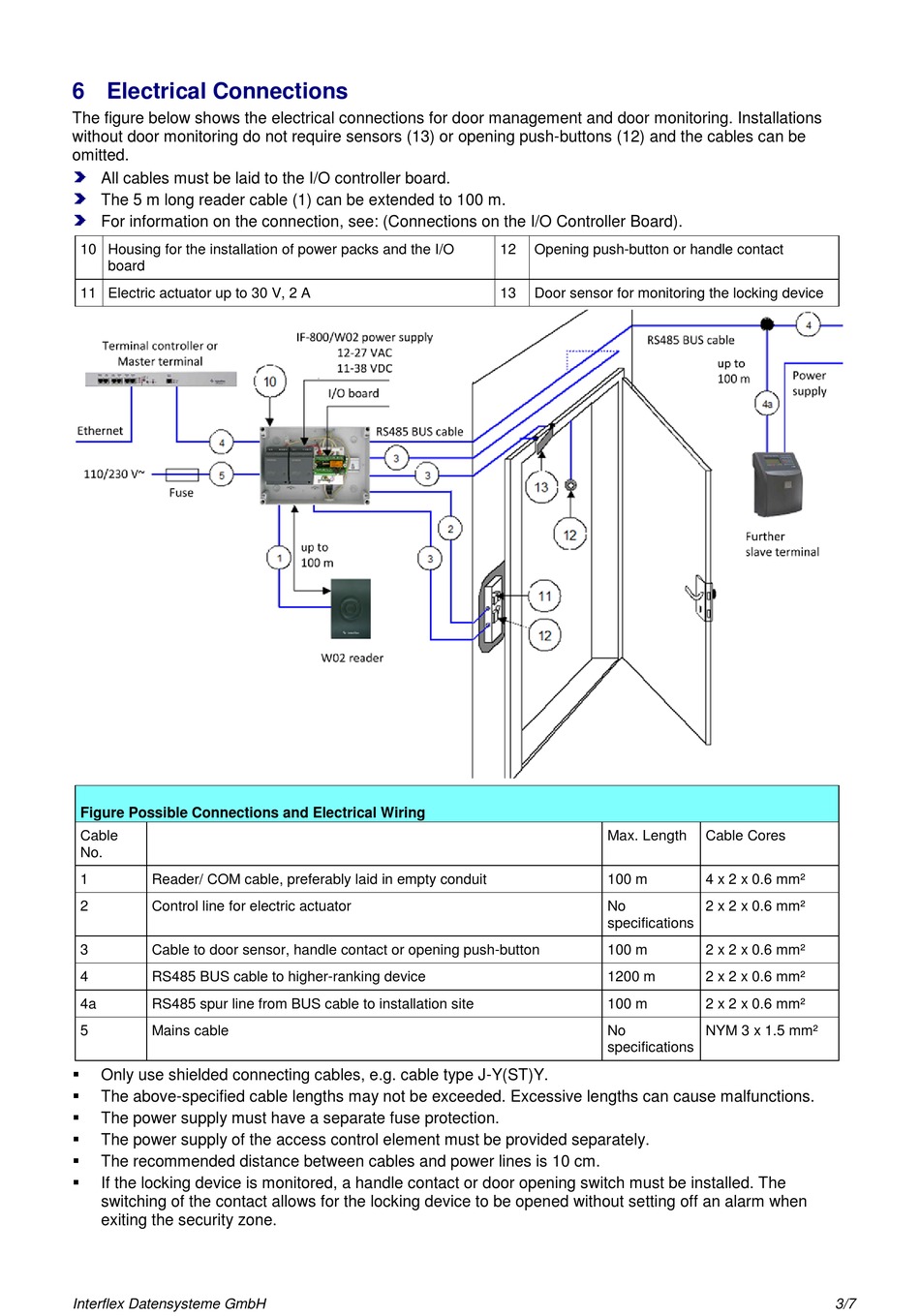

The figure below shows the electrical connections for door management and door monitoring. Installations
without door monitoring do not require sensors (13) or opening push-buttons (12) and the cables can be
omitted.
All cables must be laid to the I/O controller board.
The 5 m long reader cable (1) can be extended to 100 m.
For information on the connection, see: (Connections on the I/O Controller Board).
10 Housing for the installation of power packs and the I/O
board
11 Electric actuator up to 30 V, 2 A
Figure Possible Connections and Electrical Wiring
Cable
No.
1
Reader/ COM cable, preferably laid in empty conduit
2
Control line for electric actuator
3
Cable to door sensor, handle contact or opening push-button
4
RS485 BUS cable to higher-ranking device
4a
RS485 spur line from BUS cable to installation site
5
Mains cable
Only use shielded connecting cables, e.g. cable type J-Y(ST)Y.
The above-specified cable lengths may not be exceeded. Excessive lengths can cause malfunctions.
The power supply must have a separate fuse protection.
The power supply of the access control element must be provided separately.
The recommended distance between cables and power lines is 10 cm.
If the locking device is monitored, a handle contact or door opening switch must be installed. The
switching of the contact allows for the locking device to be opened without setting off an alarm when
exiting the security zone.
Interflex Datensysteme GmbH
12
Opening push-button or handle contact
13
Door sensor for monitoring the locking device
Max. Length
100 m
No
specifications
100 m
1200 m
100 m
No
specifications
Cable Cores
4 x 2 x 0.6 mm²
2 x 2 x 0.6 mm²
2 x 2 x 0.6 mm²
2 x 2 x 0.6 mm²
2 x 2 x 0.6 mm²
NYM 3 x 1.5 mm²
3/7
