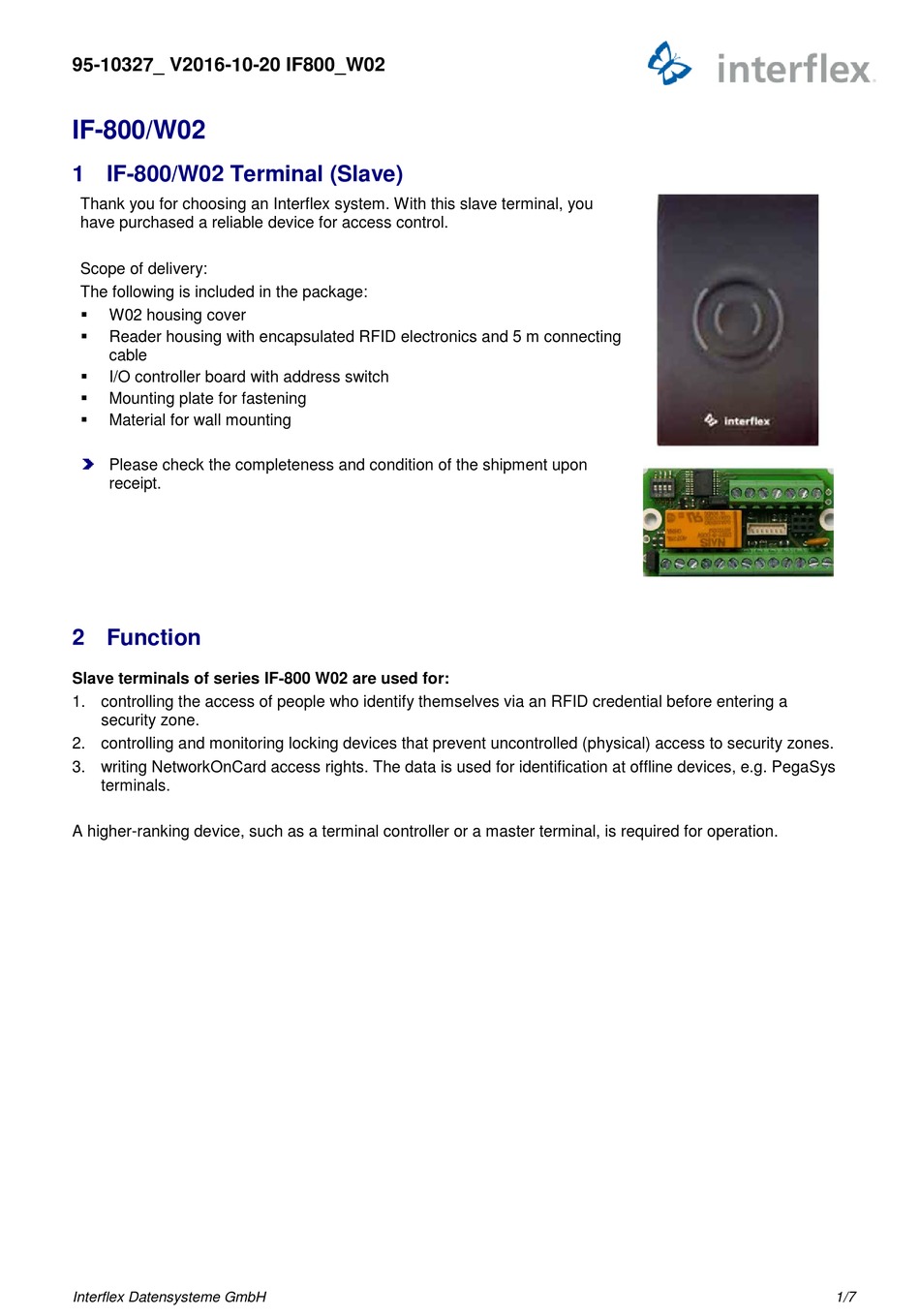

95-10327_ V2016-10-20 IF800_W02
IF-800/W02
1 IF-800/W02 Terminal (Slave)
Thank you for choosing an Interflex system. With this slave terminal, you
have purchased a reliable device for access control.
Scope of delivery:
The following is included in the package:
W02 housing cover
Reader housing with encapsulated RFID electronics and 5 m connecting
cable
I/O controller board with address switch
Mounting plate for fastening
Material for wall mounting
Please check the completeness and condition of the shipment upon
receipt.
2 Function
Slave terminals of series IF-800 W02 are used for:
1. controlling the access of people who identify themselves via an RFID credential before entering a
security zone.
2. controlling and monitoring locking devices that prevent uncontrolled (physical) access to security zones.
3. writing NetworkOnCard access rights. The data is used for identification at offline devices, e.g. PegaSys
terminals.
A higher-ranking device, such as a terminal controller or a master terminal, is required for operation.
Interflex Datensysteme GmbH
1/7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IF-800/W02 and is the answer not in the manual?

Questions and answers

Related Manuals for Interflex IF-800/W02

Summary of Contents for Interflex IF-800/W02

  • Page 1 95-10327_ V2016-10-20 IF800_W02 IF-800/W02 1 IF-800/W02 Terminal (Slave) Thank you for choosing an Interflex system. With this slave terminal, you have purchased a reliable device for access control. Scope of delivery: The following is included in the package:  W02 housing cover ...

  • Page 2: Hardware Components

    1. Install the electric cables required for operation. 2. Install the power supply. 3. Fasten the reader housing and the I/O controller board. 4. Set the address. 5. Connect the electrical cables. 6. Check the functions. 7. Close the W02 housing cover. Interflex Datensysteme GmbH...

  • Page 3: Electrical Connections

    If the locking device is monitored, a handle contact or door opening switch must be installed. The switching of the contact allows for the locking device to be opened without setting off an alarm when exiting the security zone. Interflex Datensysteme GmbH...

  • Page 4: Installation

    The I/O controller board (4) can be installed in a distance of up to 100 m from the reader housing (1). The I/O controller board must be installed in a secured area, e.g. in a DIN appliance case or in a housing together with the power supply. Interflex Datensysteme GmbH...

  • Page 5: Setting The Address

    OFF (not required if connected to a master terminal) Address 2 (B) Address 3 (C) OFF (as shown in the figure above) Address 4 (D) Address 5 (E) Address 6 (F) Address 7 (G) Address 8 (H) Interflex Datensysteme GmbH...
  • Page 6 Br1 Bridge is removed if the I/O controller board is to be used as an expansion Example: Connection of the RS485 data line Br2 Setting the relay output to normally open / normally closed Example: Connection of an actuator Br3 Contact for monitoring the housing Interflex Datensysteme GmbH...

  • Page 7: 10 Technical Specifications

    The owner can dispose of the device himself or return it to the supplier. Copyright © 2016 Version Date: October 31, 2016 Interflex Datensysteme GmbH Zettachring 16, D-70567 Stuttgart, Germany Tel.: +49 (0711) 1322 0 Internet E-Mail: interflex.info@allegion.com Websites: www.interflex.de www.allegion.com...
