Interflex IF-800 VP Manual page 5

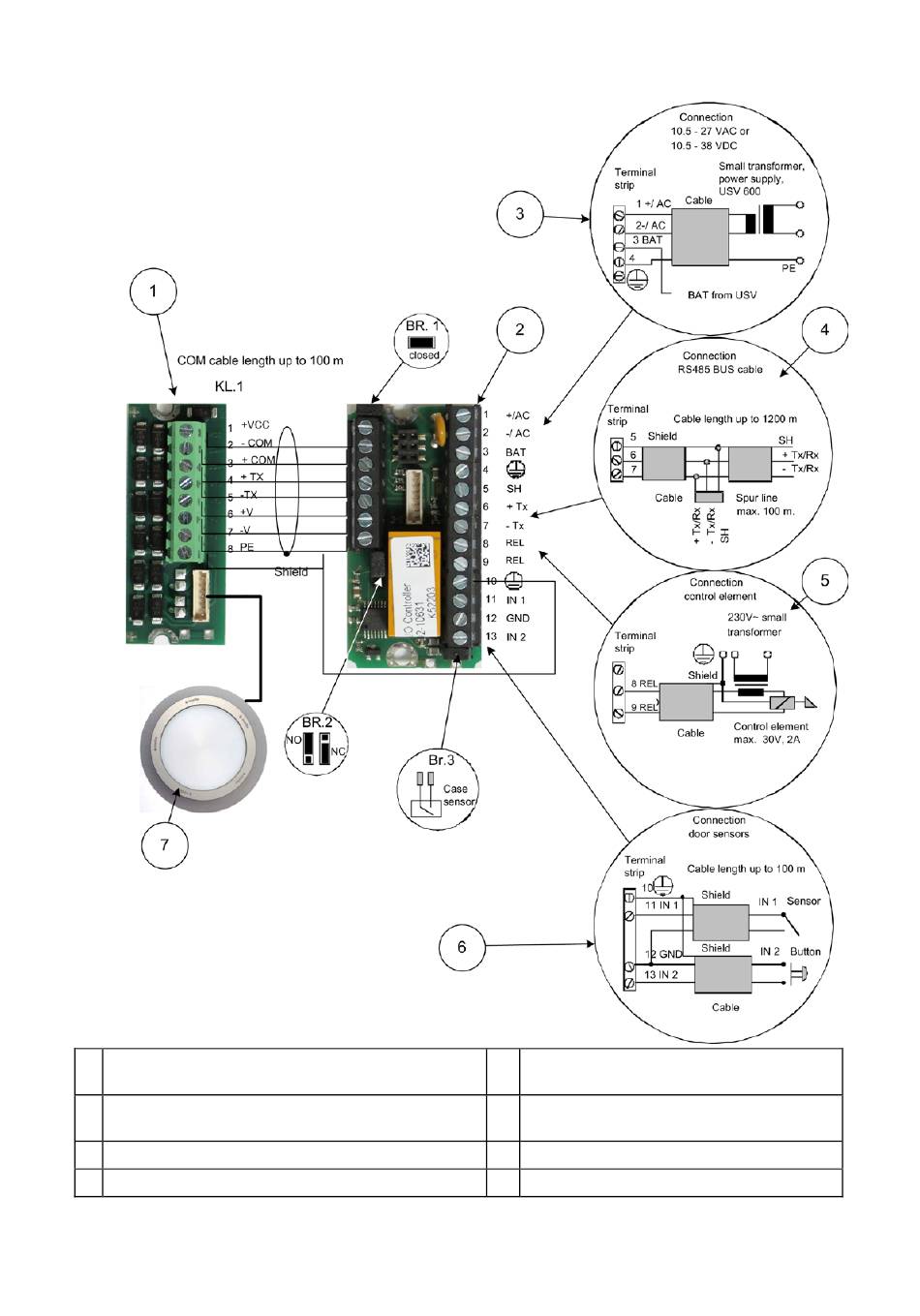

7 Connections
1 Terminal strip board
2 I/O controller board
3 Circuit example: Power supply
4 Circuit example: RS485 connection
Interflex Datensysteme GmbH
5 Circuit example: Control of a control
element (door opener)
6 Circuit example: Connection of the two
inputs
7 Circuit example: IF-800-VP terminal
5/7
