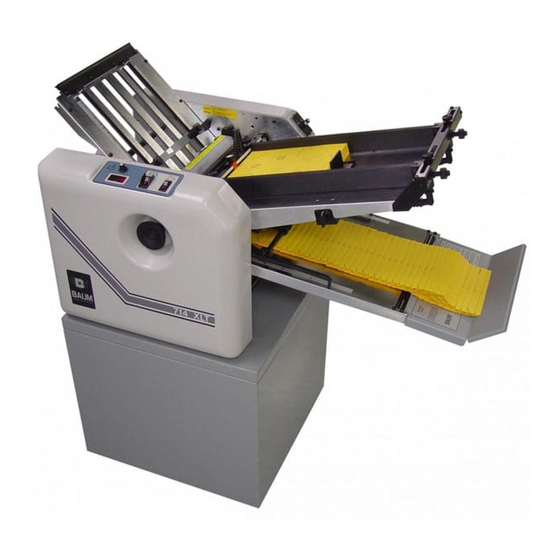

Set up instructions for the 714XLT
· Theory of buckle folding
· Setting up a Job
· Appendix A – Squaring the feeder side guides
· Appendix B – Installing perforators
· Appendix C – Installing / removing score blades
· Parts Order form
Before working on the folder, DISCONNECT ALL ELECTRICAL POWER SUPPLY TO
THE FOLDER to prevent the accidental start of the folder. Check to be sure you have the
correct tools to complete the job.
For reasons of safety, long hair must be tied back or otherwise secured, garments
must be close fitting and no jewelry, such as rings or necklaces, may be worn while
adjusting or setting up equipment. Injury may result from being caught up in the
machinery or jewelry catching in moving parts. Take all necessary steps so this
doesn't happen.
For more information or to order parts phone Baum at 1-800-543-6107
Baumfolder Corporation
P.O. Box 728
Sidney, Ohio, U.S.A. 45365
Phone : 1-800-543-6107
1660 Campbell Rd
or 1-937-492-1281
Fax: 1-937-492-7280
Copyright ã 2002
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Baum 714XLT
Summary of Contents for Baum 714XLT
- Page 1 Injury may result from being caught up in the machinery or jewelry catching in moving parts. Take all necessary steps so this doesn’t happen. For more information or to order parts phone Baum at 1-800-543-6107 Baumfolder Corporation P.O. Box 728 1660 Campbell Rd Sidney, Ohio, U.S.A.
- Page 2 Set up instructions for the 714XLT If a sheet of paper is laid on a flat surface and driven into a stationary object, a buckle or a series of buckles will form along the surface of the sheet. If the paper is pushed into a narrow channel before butting up against the stationary object, the buckle that forms in the channel will be a much smaller size than free-forming buckles.
- Page 3 Set up instructions for the 714XLT Time to set up a job….. We are now ready to set up a job on the folder. Ask your customer for a sample of the job he/she wants to run. This will give you, the sheet size and type fold. Let’s take for example an 8 ½ “ x 11” letter fold.
- Page 4 Set up instructions for the 714XLT 5. If you have a job where you want to fold in one plate only, pivot the plate hold-down out of the way. Lift up slightly on the back of the plate you are not using and pull toward you. Turn the plate end for end and reinstall it with the deflector toward the fold rollers.
- Page 5 Set up instructions for the 714XLT 8. Load the feeder, printing face up for header in, or face down for header out, and run three signatures (sheets). You may have to adjust the vacuum and or the blow. To adjust the vacuum, turn the right knob on the on the right guard counter clock-wise to increase and clock-wise to decrease vacuum.
- Page 6 Squaring Side Guides Appendix A: on the 714XLT folders If the fold is not folding straight or wrinkling: Square the guide with the fold rollers. 1. Remove the number 1 fold plate (top fold plate). 2. Take an 11 x 17 sheet of paper that is cut square and lay on feed table against one of the side guides.
- Page 7 How to install a Perforator Appendix B: on a Baum 714 ** UNPLUG POWER SUPPLY BEFORE WORKING ON ANY FOLDER ** The perforator blade is sharp. Extra care should be exercised to protect you from a cut by the perforator blade.
- Page 8 How to install a perforator on a 714XLT (Continued from previous page) 10. Slide the female perforator collar until the wide groove of the female collar is under the perforator blade. Leave it loose for now. The perforator stripper should be between the perforator blade assembly and the female perforator collar.
- Page 9 714 Slitter Shaft Assembly, setup for perforating Part Number Information 1 Pullout Tire Assy. 06404 Sheet Pullout Sleeve 06997 Pullout Tire 06402 2 Perforator 07791 3 Blade holder 06411 4 Screw – Felstr 10-24 x 3/8 20312 5 Female Perforator Collar 06799 6 Screw Brass Point tip 20438 7 Perforator Stripper S45297 ** End of Appendix B **...
- Page 10 How to install or Remove Appendix C: Score Blades on a Baum 714 ** UNPLUG POWER SUPPLY BEFORE WORKING ON ANY FOLDER ** The score blades are sharp. Extra care should be exercised to protect you from a cut by the score blades.
- Page 11 How to install or remove score blades on a 714XLT (Continued from previous page) 11. Slide the left pullout tire assembly directly under pullout tire on the top slitter shaft and tighten the setscrew to hold the pullout assembly in place.
- Page 12 714 Slitter Shaft Assembly, setup for scoring Part Number Information Left Pullout Tire Assembly……... 06404 Left Paper Deflector Assembly… 262-453-BG-01 ** End of Appendix C ** Baumfolder Corporation P.O. Box 728 1660 Campbell Rd, Sidney, Ohio USA 45365 Copyright © 2002 Phone 1-800-543-6107 or 1-937-492-1281 Fax 1-937-492-7280 email: Baumfolder@baumfolder.com...
- Page 13 BAUM BAUM EASY-FAX Order Form 1660 Campbell Road Fax #: 1-800-452-0947 Sidney, OH 45365 or - 1-937-497-8301 PH: 1-800-543-6107 If you need information or assistance identifying part numbers please -or- 1-937-778-9636 call our Parts department toll free at 800-543-6107 between the hours of 8 a.m.
