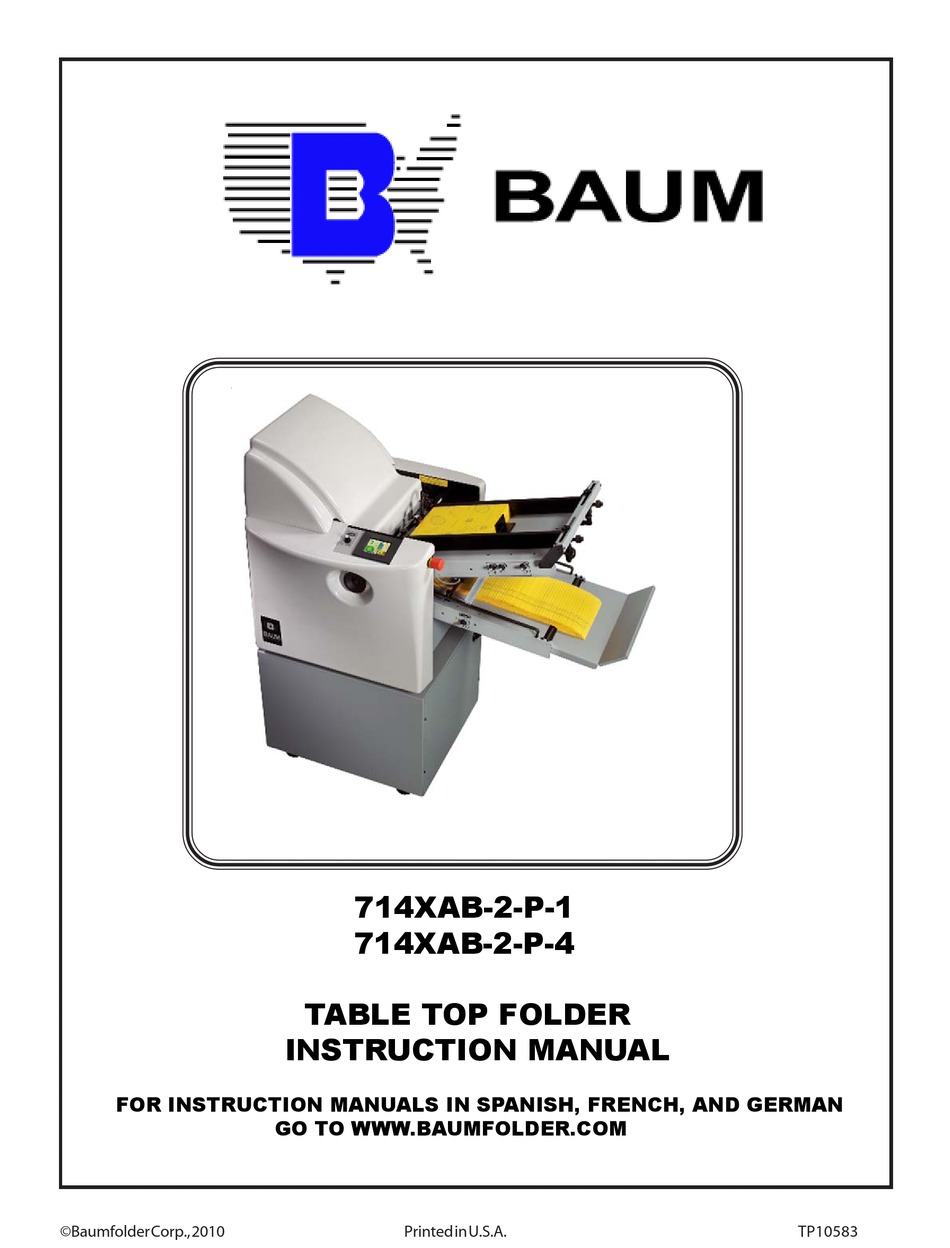

- Page 1 714XAB-2-P-1 714XA A-2-P-1 714XAB-2-P-4 TABLE TOP FOLDER TABLE TOP FOLDER INSTRUCTION MANUAL FOR INSTRUCTION MANUALS IN SPANISH, FRENCH, AND GERMAN INSTRUCTION MANUAL GO TO WWW.BAUMFOLDER.COM ©BaumfolderCorp.,2010 PrintedinU.S.A. TP10583 PAGE 1 TP10583...
- Page 2 © 2010 BAUMFOLDER CORPORATION All Rights Reserved WARNING • Do not operate this machine without all guarding in place. • Do not make adjustments or perform maintenance on this machine with power on. • Keep the machine and the work area clean and free of spills to prevent accidents. •...
-
Page 3: Table Of Contents
DESCRIPTION PAGE CONTENTS INTRODUCTION SAFETY FIRST......................6 INTRODUCTION OVERVIEW ..................7 1.0 ASSEMBLY INSTRUCTIONS ................7 ..........................8 INSTALL FEED TABLE ..........................8 INSTALL BOTH PANS ..........................9 INSTALL STACKER TRAY ..........................9 PUMP CONNECTIONS ......................9 INSTALL SLITTER SHAFT ASSEMBLY ......................9 OTHER ELECTRICAL CONNECTIONS 2.0 SETUP........................9 ............................ - Page 4 CONTENTS DESCRIPTION PAGE 6.0 BAUMFOLDER 714XA “QUICK START” INSTRUCTIONS ....... 14 ........................14 TURNING THE MAIN SWITCH ON ....................... 14 CURRENT JOB OR SETUP NEW JOB ..........................14 FOLD CHOICE SCREEN ..........................14 PAPER LENGTH SCREEN ............................14 SELECTING UNITS ) ................
- Page 5 CONTENTS ..............BASIC MACHINE SETUP ..........................28 UNITS OF MEASURE LANGUAGES ..................................28 HARDWARE AND SOFTWARE VERSIONS ........................28 9.0 DIAGNOSTICS ....................... 28 10.0 CALIBRATION OF FOLD PANS ..............29 TECHNICAL SPECIFICATIONS................43 TROUBLESHOOTING ...................44 INSTALLATION OF ANTISTATIC..............45 TP10583 PAGE 5...
-
Page 6: Safety First
10. Make sure that all safety devices are in place before restarting the machine. Your new Baum paper folding machine has been designed 11. Never clean moving parts of the machine (rollers, in accordance with the latest safety specifications. The shafts, etc.) or remove any test sheets or paper jams... - Page 7 LO PRIMERO máquina. Su nueva máquina plegadora de papel Baum ha sido 11. Nunca limpie piezas móviles de la máquina (rodillos, diseñada de acuerdo con las más recientes especificaciones ejes, etc.) ni quite hojas de prueba ni elimine atascos de...
- Page 8 10. Assurez-vous que tous les dispositifs de sécurité sont en LA SÉCURITÉ AVANT TOUT place avant de redémarrer la machine. 11. Ne nettoyez jamais des pièces en mouvement de la Votre nouvelle machine Baumfolder à plier le papier a été machine (rouleaux, axes), ni ne retirez aucune feuille conçue conformément aux spécifications de sécurité les plus de test ou bourrage de papier lorsque la machine est en récentes. Les étiquettes d'avertissement et d'attention sur fonctionnement. la machine doivent rester en place. Assurez-vous que tous les dispositifs de protection fournis sont en place avant de 12. Le sol tout autour de la machine doit être propre. démarrer et de faire fonctionner la machine. Nettoyez immédiatement l’huile, la graisse ou la En raison de la nature du processus des travaux des machines peinture en cas de déversement sur le plancher. Retirez à plier le papier, certaines pièces et autres zones de la les outils, les chiffons ou les papiers de nettoyage de machine ne peuvent pas être complètement protégées sans toutes les zones de travail. interférer avec son fonctionnement. C'est pourquoi des 13. Ne laissez jamais un personnel non autorisé procéder à habitudes personnelles saines de travail et l'observation des réglages sur la machine, retirer des feuilles de papier stricte de toutes les précautions de sécurité sont nécessaires avec des problèmes ou démarrer la machine. à la protection de l'opérateur, des collègues de travail et de la machine. 14. Ne montez jamais sur la machine ni n'y pénétrez Veuillez observez ces lorsqu'elle est sous tension.
- Page 9 SICHERHEIT HAT VORRANG Sicherheitsvorrichtungen angebracht sind, bevor die Maschine wieder in Betrieb genommen wird. Ihre neue Baum-Papierfalzmaschine wurde in 11. Auf keinen Fall bewegliche Teile der Maschine (Walzen, Übereinstimmung mit den neuesten Sicherheitspezifikationen Wellen usw.) reinigen bzw. keine Testbögen oder konstruiert.
-
Page 10: Introduction Overview
INTRODUCTION OVERVIEW ASSEMBLY INSTRUCTIONS The 714XA consists of the following major compo- SET MAIN UNIT ON TOP OF CART ASSY nents: Note orientation in Figure 3. The covered end of the cart with the oval cut out for the pump power cord should be directly below the power entry bracket mounted in the left lower edge to the front guard. -
Page 11: Install Feed Table
1.2 I NSTALL BOTH FOLD PANS INSTALL FEED TABLE The fold pans are identical. See Figure 4. Place feed table with feed wheel toward the rolls. Slide the front knotch onto locating pins (1) and See Figure 5 for positioning: rotate the back end of the table downward to rest on upper Pan 1 sets on pins 1 and 2 dowel pins (2). -
Page 12: Install Stacker Tray
2.0 SETUP 1.3 I NSTALL STACKER TABLE TRAY To install the stacker table tray, loosen the knobs on 2.1 GAP ADJUSTMENT either side of the tray. Drop the tray over the knobs and retighten. The orange tab above the sucker wheel assembly on the 1.4 P ONNECTIONS feed table must be adjusted for each new weight of paper... -
Page 13: Air Flow Adjustment
3.0 Operation 2.3 AIR FLOW ADJUSTMENTS There are three knobs on the side of the feed table. See 3.1 Loading of Feed Table Figure 9. Two knob have nintey degrees of rotation. Clock- wise movement of each valve these two values decreases the settings. -
Page 14: Perforating, Scoring & Slitting
4.0 PERFORATING, The perforating blade holder assembly is then slid onto the upper slitter shaft along with the SCORING & SLITTING necessary pull-out tire assemblies. Then tighten the screws holding the perforator blade to the blade In addition to folding, your 714XA can perforate, score holder, aligning the blade to the holder. -
Page 15: Scoring
TOP SHAFT 4.2 Scoring The 714XA can be used to score a sheet and deliver it flat, or to score a sheet after a fold or folds have been made. To ensure accuracy in making right-angle folds, always score the sheet where the fold is to be made. -
Page 16: Maintenance
Before tightening the blade to the collar, slide the blade with the collar loosely attached on the end of the shaft. Then tighten securely, thus aligning both the blade and collar, allowing free horizontal move- ment along the shaft. Place the blade, mounted on the collar, on the upper shaft in the proper position where the cut is to be made. -
Page 17: Baumfolder 714Xa "Quick Start" Instructions
4.0 BAUMFOLDER 714XA “QUICK START” INSTRUCTIONS 1. Turn on Main Power switch on left side of the enclosure. Baumfolder information screen The display should show a for 15 seconds and then automati Production Screen: cally switches to the Production Screen with NO BATCH Production Screen with Batch The Active fold type is shown in the upper left corner of the screen of the production screen. -
Page 18: Moving Pans Initializing Or Moving To Fold Position )
Length Screen: Here is an example of the After selecting the units and the paper size, Press the NEXT button to change to the INITIALIZATION SCREEN: 4. After changing to the initialization screen, both pans will move into the deflect position then . -
Page 19: Simple
BATCH SCREEN BATCH or NO BATCH. 6. The first choice on the is for active choice will have a blue background. If NO BATCH is chosen there are no other choices except to return to the production screen using NO BATCH CHANGED TO BATCH The mode can be by pressing the batch button with the gray... -
Page 20: Variable
After Selecting the VARIABLE batch: VARIABLE BATCH Press the V. SETUP button to continue. VARIABLE BATCH SETUP Enter the number of variable batches in this run. Then Press the V-Batch button to enter the values in each batch. VARIABLE BATCH DATA ENTRY Only the number of variable batches requested in Variable batch setup will be displayed (up to 10). -
Page 21: Production Screen Icons
Sample Production Screen: Units: The IN or MM is the unit indicator. CURRENT FOLD TYPE: This is the current fold indicator. In this case it is an engineering fold. If you press this button while on the production screen, it takes you to the Fold Selection Screen. PAN 1 AND PAN 2 POSITIONS: The numbers on the left side of the screen below the units display show the current position of pan 1 and pan 2. -
Page 22: Turning On Main Rolls , Delivery , And Pump
STATUS INDICATOR AND START BUTTON At the bottom left is the status indicator in the “ready” state. The status indicator on the production screen is also the button to turn the machine ON or OFF. Pressing the status indicator when it is in the “ready state” for half a second turns ON the main rolls, the pump, and the delivery. -
Page 23: Paper Feed On / Off
To the right of this button is the total count. It can reset to zero if the button is held for 3 seconds. To the right of this icon is total requested in the current batch. To the right of this icon is the current number run in this batch. To the right of this icon is the number of batches. -
Page 24: Fold Pan Adjustment Screen
25. Fold Pan Adjustment Screen: To access the adjustment screen, start from the production screen. Press either of the numbers on the left side of the screen that indicate current position of pan 1 and pan 2. “+ “– On the adjustment screen pressing either the “or “button should move the pan immediately by .01”. -
Page 25: Setup Preferences Screen
Repeat as desired for each pan. Use the button to go to the production screen when ready. 27. Setup Preferences Screen: To access the Setup Preferences Screen, first use the button from any screen to access the Main Screen (shown below): Setup Preferences Then select the button to display Setup Preferences Screen (shown below):... -
Page 26: Memory Screen
28. The Memory Screen (SAVE and RELOAD) Before using either the Save to store a job or the Reload to recall job, check what is currently saved in the From the production screen use the to get to the main screen: Use the JOB MEMORY button to see memory 1-4. -
Page 27: Save To Memory Screen
29. The Save Screen Use the Job Memory to select a location first (See 28.) On the save screen enter the speed the job was run before saving. Pressing the save button: moves the current pan locations, fold type, and speed into the selected memory location. -
Page 28: Non - Fault Staus Indicators
This indicates that the paper length and the fold choice are not compatible. Go to the choice screen or the paper length screen and change one of the selections. Non- fault status states: “ready” to start This state shows the machine is . -
Page 29: Error Screens
32. Error Screens: If the choice of fold or paper length created a fold lenghth either over maximum or 14 inches or under minimum of 2 inches, instead of movement to the new position the Over limits Error screen will be the result. Use the orange buttons to change to a selection within limits. -
Page 30: Operator Controls
7.0 OPERATOR CONTROLS The main operator control panel is located at the top right of the front guard. See Figure 10. The "Control Panel"(1) is a full color touch sensitive screen. See Quick Start Instructions for detailed explainations (Page 14). 7.0 Setting Folding Speed The speed of the fold rolls may be set while the folder is running! This is done by adjusting the speed control potenti-... -
Page 31: Basic Machine Setup
8.0 BASIC MACHINE SETUP 8.1: Units of Measurement Toggles between metric and english units ( mm or inches). See Quickstart Instructions page 14. 8.2: Language This selection specifies the Language. Available choices are ENGLISH, GERMAN, SPANISH and FRENCH. Use the Setup Preferences Screen to change languages. -
Page 32: Calibration Of Fold Pans
10. CALIBRATION OF FOLD PANS 1.) Ensuring that #1 pan deflector does not rub the rolls: A.) Either use the HALF FOLD IN PAN 2 only fold choice to send pan 1 into the deflect position or temporarily disconnect the 9 pin connector from the pan 1 to the frame and manually move pan 1 to the deflect position.Then reattach the connector. - Page 33 H.) Loosen the 2 screws that are holding the deflector pusher in position on the paper stop assembly with a 2.5 allen wrench. I.) Move the deflector to the desired position to prevent the deflector from rubbing the rolls. This should only be moved enough to not allow the deflector to rub the rolls.
- Page 34 O.) Turn the handwheel of the machine and listen and feel for any rubbing of the #1 pan’s deflector on the rolls. If there is not any rubbing of the deflector on the fold rolls proceed to Step 2. 2.) Ensure that #2 pan deflector does not rub the rolls: A.) Either use the HALF FOLD IN PAN 1 only fold choice to send pan 2 into the deflect position or temporarily disconnect the 9 pin connector from the pan 2 to the frame and manually move pan 2 to the deflect...
- Page 35 H.) Loosen the 2 screws that are holding the deflector pusher in position on the paper stop assembly using a 2.5 allen wrench. I.) Move the deflector to the desired position to prevent the deflector from rubbing the rolls. This should only be moved enough to not allow the deflector to rub the rolls.
- Page 36 Note: The postion of the deflector will need to be adjusted in this same manner any time the home position of the paper stop is changed by making adjustments to the paper stop screws. If this is not corrected each time these screws are adjusted, serious damage to the folder or fold pans may occur! R.) Turn the handwheel of the machine and listen and feel for any rubbing of the #2 pan’s deflector on the rolls.
- Page 37 H.) Loosen both front and rear thumb screws on the operator side guide. I.) Push in and rotate the operator side guide skew adjust knob so that the side guide skews in the direction the sheet was being off square to the fold rolls.
- Page 38 E.) Now turn the handwheel, and make sure that the edge of the paper hit at all points on the paper stop simultaneously. F.) Confirm the squareness of the side guides to the fold rolls and the sheet to the paper stop by turning the handwheel so that the sheet is folded.
- Page 39 F.) Run the paper stop to it’s home position by rotating the paper stop lead screw by hand. G.) Carefully rotate the deflector up so that you may get the calipers or scale into the pan. H.) In the center of the fold pan, take a measurement from the edge of the lower half of the pan to the paper contact surface of the paper stop and note this.
- Page 40 J.) Manually move the paper stop away from home position enough so that you may use a 4mm allen wrench in the flat head screws on the paper stop. These screws will be adjusted to position the paper stop correctly for the new home position. See Figure #8 on page 37. K.) Use a 10mm wrench to loosen up the nuts on the flat head screws.
- Page 41 HOME POSITION SCREW JAM NUTS HOME POSITION SCREWS LOWER HALF BRACE Figure #8 TP10583 PAGE 38...
- Page 42 Q.) Loosen nuts holding the home position switch to it’s bracket. R.) Manually move the paper stop assembly away from home position so that you have 0.25”(6.35mm) gap between the heads of the home position screws and the lower half pan brace. A 1/4” allen wrench may be used to aid in getting the proper distance.
- Page 43 E.) Run the paper stop to it’s home position by rotating the paper stop lead screw by hand. F.) Carefully rotate the deflector up so that you may get the calipers or scale into the pan. G.) In the center of the fold pan, take a measurement form the edge of the lower half of the pan to the paper contact surface of the paper stop.
- Page 44 I.) Manually move the paper stop away from home position enough so that you may use a 4mm allen wrench in the flat head screws on the paper stop. The screws will be adjusted to position the paper stop correctly for the new home position. See Figure #10. J.) Use a 10mm wrench to loosen up the nuts on the flat screws.
- Page 45 K.) Turn flat head screws further into the paper stop assembly. L.) Manually move the paper stop until the paper stop is in the correct position as determined in Step #6.H. M.) Run the flat head screws out of the paper stop assembly until the heads of the screws come in contact with the lower half pan brace.
-
Page 46: Technical Specifications
220 Volt, 1 phase, 50 Hz, 10 Amperes See serial plate on folder ACCESSORIES In addition to the various folding, slitting, perforating and scoring functions the Baum 714XA can perform even more productive functions using the following accessories and more. • Sound Guards Contact your local Baumfolder Corporation sales repre- sentative for further information. -
Page 47: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE REMEDY Double sheets feed into Orange tab is set too high or Adjust orange tab "-" or turn first sucker wheel. vacuum adjustment too high. knob on delivery CCW. Jam occurs at exit. Paper is caught in the lower anti-static Move magnets on frame rope or pull out tires mispositioned. -
Page 48: Installation Of Antistatic
INSTALLATION OF ANTISTATIC KIT: 1. Attach the ring terminal end of the antistatic kit to the existing stacker hardware: A. Loosen the #4 nut closest to the unit that secures the black plastic enclosure to the inside of the stacker. B. - Page 49 Baumfolder has authorized dealers located through- out the United States. Call toll free, 1-800/543-6107 for parts or the number of your nearest authorized dealer. BAUMFOLDER C O R P O R A T I O N Quality Bindery Equipment Since 1917 1660 Campbell Road Sidney, Ohio 45365-0728 Phone: 937/492-1281 or 800/543-6107...
