Aanderaa ZPulse DCS 4420 Operating Manual

Doppler current sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

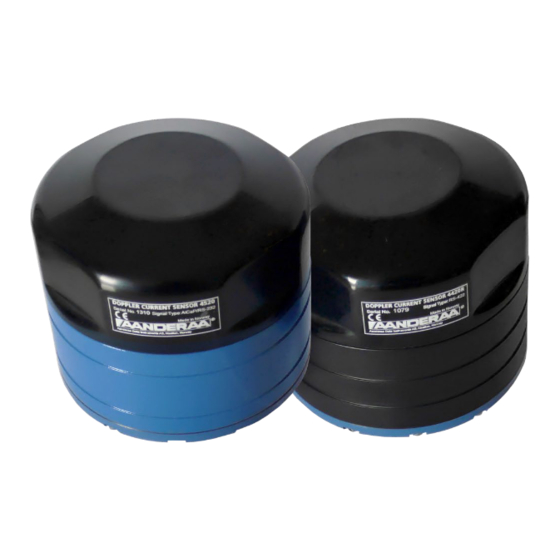

ZPulse
®
4420/4420R, 4830/4830R,
4520/4520R, 4930/4930R
Doppler Current Sensor
TD 266 OPERATING MANUAL
ZPulse® Doppler Current Sensor
4420/4830/4520/4930
February 2020
