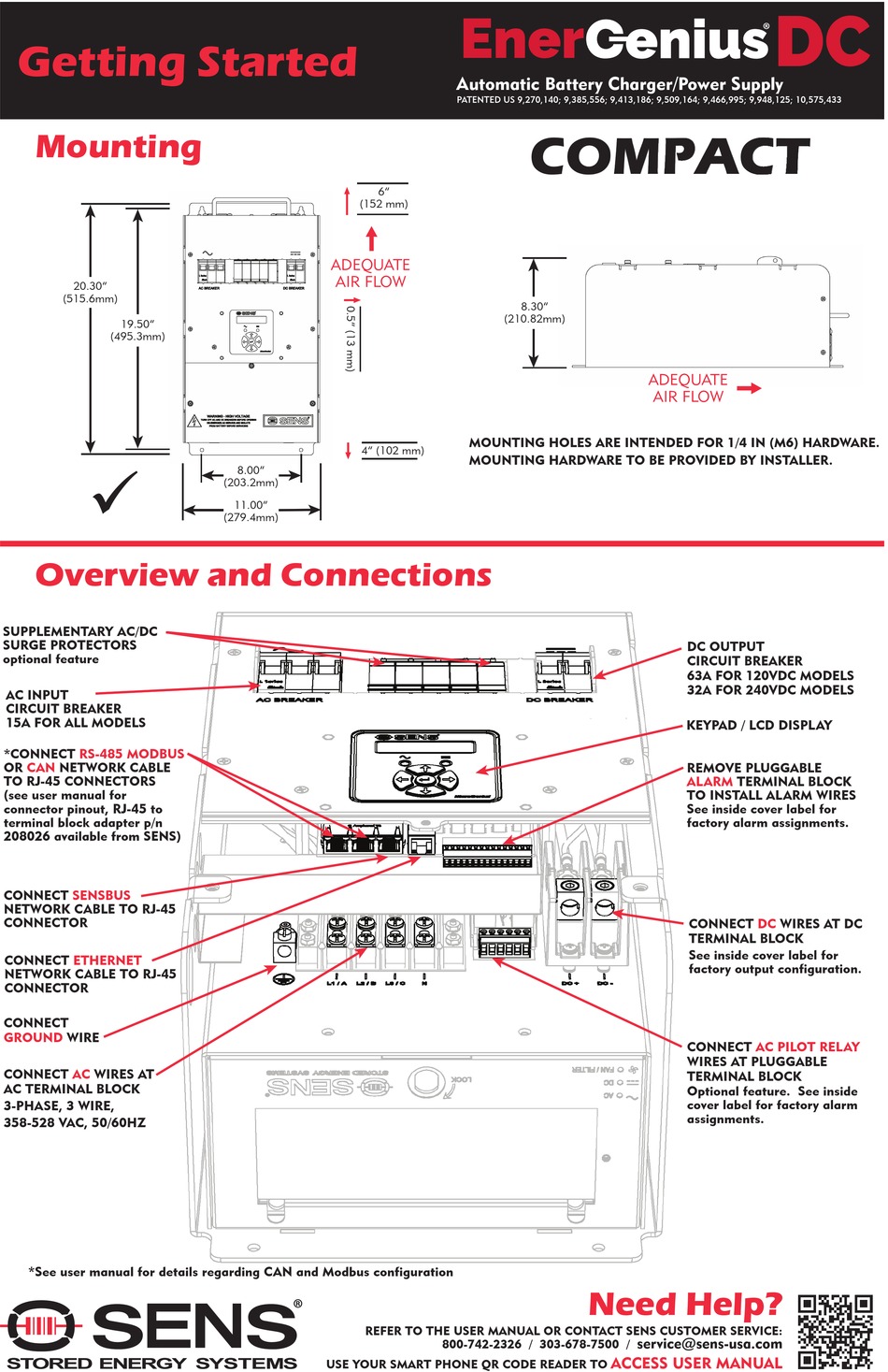

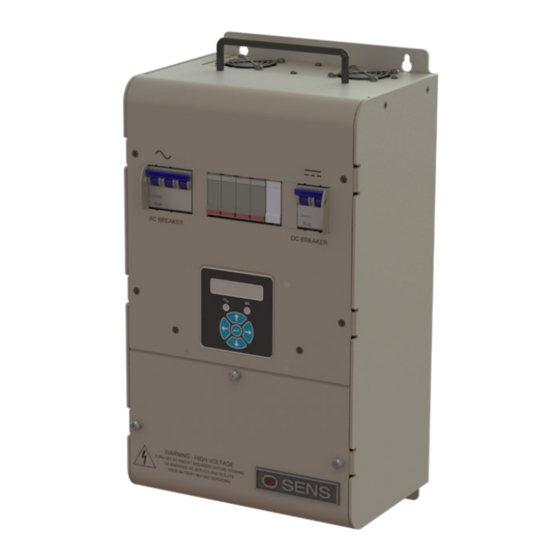

Sens EnerGenius DC COMPACT Getting Started

Getting Started
Mounting
20.30"
(515.6mm)
19.50"
(495.3mm)

Overview and Connections
SUPPLEMENTARY AC/DC
SURGE PROTECTORS
optional feature
AC INPUT
CIRCUIT BREAKER
15A FOR ALL MODELS
*CONNECT RS-485 MODBUS
OR CAN NETWORK CABLE
TO RJ-45 CONNECTORS
(see user manual for
connector pinout, RJ-45 to
terminal block adapter p/n
208026 available from SENS)
CONNECT SENSBUS
NETWORK CABLE TO RJ-45
CONNECTOR
CONNECT ETHERNET
NETWORK CABLE TO RJ-45
CONNECTOR
CONNECT
GROUND WIRE
CONNECT AC WIRES AT
AC TERMINAL BLOCK
3-PHASE, 3 WIRE,
358-528 VAC, 50/60HZ
*See user manual for details regarding CAN and Modbus configuration
6"
(152 mm)
ADEQUATE
AIR FLOW
4" (102 mm)
8.00"
(203.2mm)
11.00"
(279.4mm)
REFER TO THE USER MANUAL OR CONTACT SENS CUSTOMER SERVICE:
USE YOUR SMART PHONE QR CODE READER TO
Ener
Automatic Battery Charger/Power Supply
PATENTED US 9,270,140; 9,385,556; 9,413,186; 9,509,164; 9,466,995; 9,948,125; 10,575,433
COMPACT
8.30"
(210.82mm)
MOUNTING HOLES ARE INTENDED FOR 1/4 IN (M6) HARDWARE.
MOUNTING HARDWARE TO BE PROVIDED BY INSTALLER.
Need Help?
800-742-2326 / 303-678-7500 /
DC
ADEQUATE
AIR FLOW
DC OUTPUT
CIRCUIT BREAKER
63A FOR 120VDC MODELS
32A FOR 240VDC MODELS
KEYPAD / LCD DISPLAY
REMOVE PLUGGABLE
ALARM TERMINAL BLOCK
TO INSTALL ALARM WIRES
See inside cover label for
factory alarm assignments.
CONNECT DC
TERMINAL BLOCK
See inside cover label for
factory output configuration.
CONNECT AC PILOT RELAY
WIRES AT PLUGGABLE
TERMINAL BLOCK
Optional feature. See inside
cover label for factory alarm
assignments.
service@sens-usa.com
ACCESS USER MANUAL
WIRES AT DC
