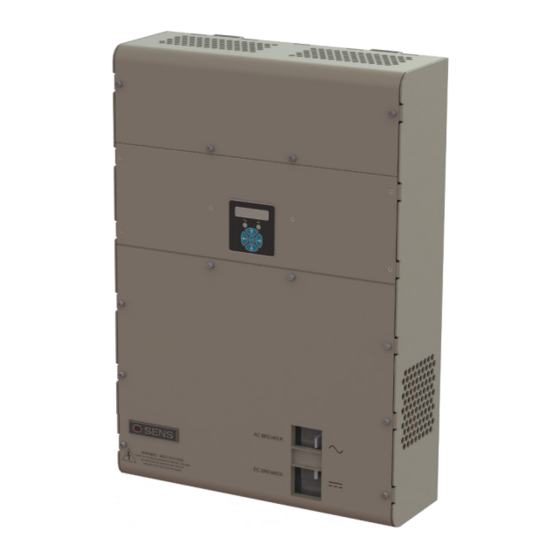

Sens EnerGenius DC Wallbox Getting Started

Getting Started
Mounting

Overview and Connections
*CONNECT RS-485 MODBUS
OR CAN NETWORK CABLE
TO RJ-45 CONNECTORS
(see user manual for
connector pinout, RJ-45 to
terminal block adapter p/n
208026 available from SENS)
CONNECT ETHERNET
NETWORK CABLE TO RJ-45
CONNECTOR
CONNECT
GROUND WIRE
CONNECT SENSBUS
NETWORK CABLE TO RJ-45
CONNECTOR
CONNECT AC WIRES AT
AC BREAKER
3-PHASE, 3 WIRE,
358-528 VAC, 50/60HZ
CONNECT DC WIRES AT
DC BREAKER
See inside cover label for
factory output
configuration.
*See user manual for details regarding CAN and Modbus configuration
4" (102 mm)
31.63"
(803.4mm)
30.75"
(781.1mm)
ADEQUATE
AIR FLOW
4" (102 mm)
REFER TO THE USER MANUAL OR CONTACT SENS CUSTOMER SERVICE:
USE YOUR SMART PHONE QR CODE READER TO
Ener
Automatic Battery Charger/Power Supply
PATENTED US 9,270,140; 9,385,556; 9,413,186; 9,509,164; 9,466,995; 9,948,125; 10,575,433
WALLBOX
12.0"
(304.8mm)
21.5"
(546.1mm)
Need Help?
800-742-2326 / 303-678-7500 /
ACCESS USER MANUAL
DC
MOUNTING HOLES ARE INTENDED
FOR 3/8 IN (M10) HARDWARE.
MOUNTING HARDWARE TO BE
PROVIDED BY INSTALLER.
SEE INSTALLATION DRAWING IN
MANUAL FOR MORE DETAILS.
7.9"
(200.7mm)
DO NOT MOUNT FLAT
KEYPAD / LCD DISPLAY
REMOVE PLUGGABLE
ALARM TERMINAL BLOCK
TO INSTALL ALARM WIRES
See inside cover label for
factory alarm assignments.
CONNECT PILOT RELAY
WIRES AT PLUGGABLE
TERMINAL BLOCK
Optional feature. See inside
cover label for factory alarm
assignments.
AC INPUT
CIRCUIT BREAKER
30A FOR ALL MODELS
DC OUTPUT
CIRCUIT BREAKER
150A FOR 120VDC MODELS
70A FOR 240VDC MODELS
SUPPLEMENTARY AC/DC
SURGE PROTECTORS
Optional feature
