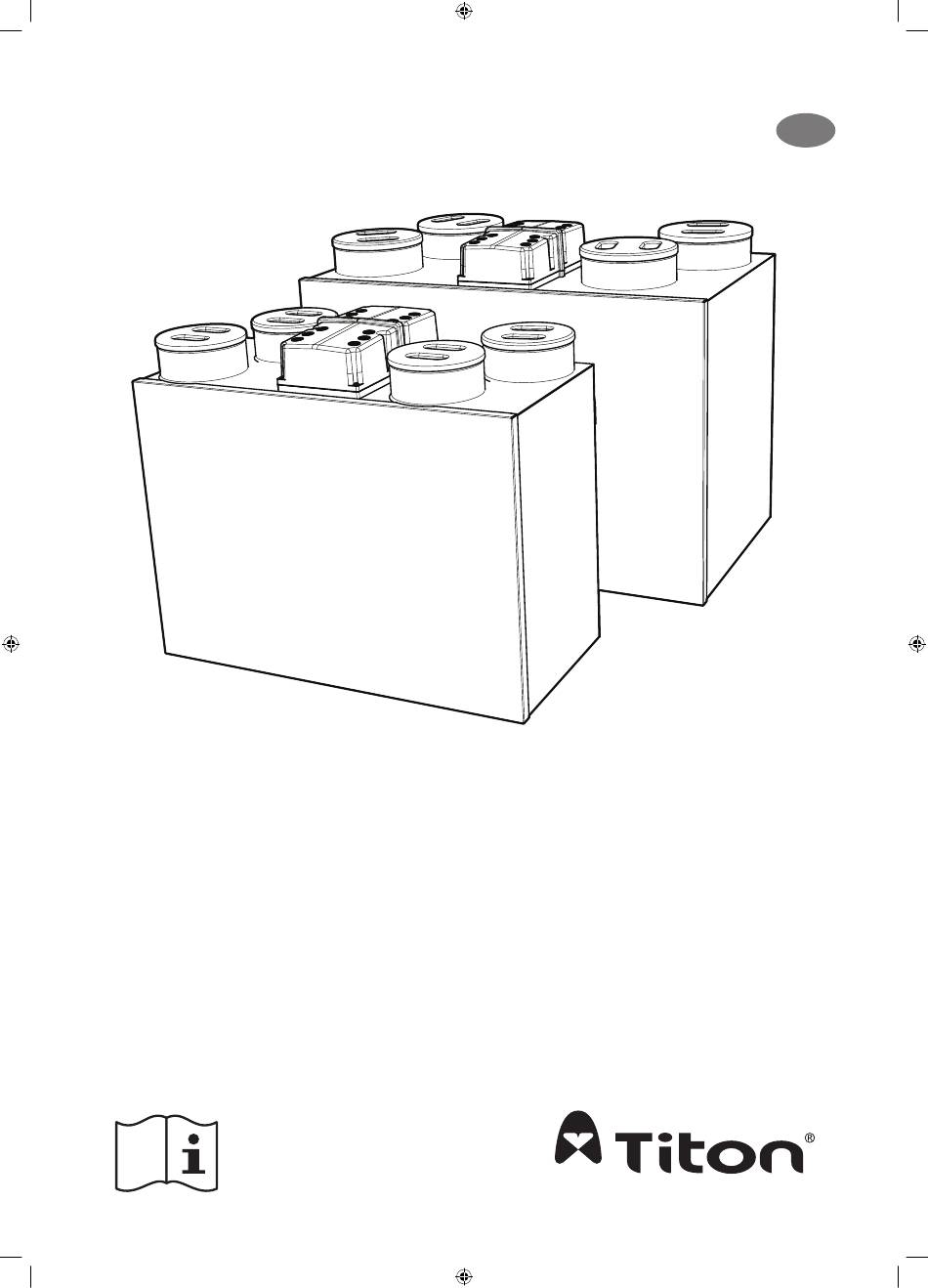

- Page 1 HRV1 Q Plus TP410B HRV1.25 Q Plus TP416B HRV1.75 Q Plus TP414B HRV2 Q Plus TP411B HRV2.85 Q Plus TP417B HRV3 Q Plus TP412B Product Manual Heat Recovery Ventilation Units ventilation systems...
-
Page 2: Table Of Contents
Important Information 3 Titon Recommend: 4... -
Page 3: Important Information
Warnings, Safety Information and Guidance Important Information Important: read these instructions fully before the installation of this appliance 1. Installation of the appliance and accessories must be carried out by a qualified and suitable competent person and be carried out in clean, dry conditions where dust and humidity are at minimal levels. -
Page 4: Titon Recommend
Titon Recommend: Ø125mm ducting is used to connect the HRV1 & 1.25 Q Plus. Ø150mm ducting is used to connect the HRV1.75, 2, 2.85 & 3 Q Plus. A short piece of flexible ducting, approximately 200mm long is used to connect the unit to the ducting system. -
Page 5: Product Overview
As the stale air is extracted, the unit’s heat exchanger transfers heat, which would have been wasted, to the fresh air being supplied to the bedrooms and living rooms. The units in this product manual are designed to work with the Titon aurastat®. aurastat®... -
Page 6: Dimensions
Dimensions Service Void HRV 1 & 1.25 Q Plus DO NOT BOX IN UNIT Service Void HRV 1.75, 2, 2.85 & 3 Q Plus DO NOT BOX IN UNIT Service Void... -
Page 7: Installation
Read and observe the guidance & safety notices listed in Warnings, Safety Information and Guidance on page 3. Titon recommend the use of guidance given in the Domestic Ventilation Compliance Guide 2010 Edition ISBN-978 1 85946 378 9 and Approved Document Part F 2010 ISBN-978 1 85946 370 3 for all installations in the United Kingdom. -
Page 8: Condensate Drain
Should be installed to have a minimum 5° fall from the unit ƒ Titon recommend the use of diaphragm type waste valve in place of a conventional ‘wet’ trap which could dry out. Such as, BRE certificate no. 042/97 ‘Hepworth Hepv0 Hygienic self sealing plastic waste valve’ recommended as an... -
Page 9: Ducting Connections
Read and observe the Warnings, Safety Information and Guidance. Titon recommend the use of guidance given in the Domestic Ventilation Compliance Guide 2010 Edition ISBN-978 1 85946 378 9 and Approved Document Part F 2010 ISBN-978 1 85946 370 3 for all installations in the United Kingdom. - Page 10 Wiring Diagrams Fuse 2 Pole Isolator Supply wiring Ref EE167 The Switched Live (LS1, LS2) Boost(s) must be supplied via the same circuit as used to power the unit. A 3 (LS1 only) or 4 (LS1 &LS2) pole local isolator must be installed.
-
Page 11: Wiring Diagrams
Wiring Diagrams Switch Defaults SW1 - Volt Free - Kitchen Boost. SW2 - Volt Free - Wet Room Boost. SW3 - Volt Free - SUMMERboost Control. Volt Free switch inputs Ref EE163 Switch Defaults LS1 - 230V AC - Kitchen Boost LS2 - 230V AC - Wet Room Boost LIVE switch inputs Ref EE163... -
Page 12: Wiring Diagrams
Wiring Diagrams If sensors are tted with switches ensure they are switched to VDC Room Sensor 2 (default TP541 RSC Room CO Sensor) Room Sensor 1 (default TP542 RSH Room Humidity Sensor) Additional Options: TP540 RSQ Room Air Quality Sensor TP543 RST Room Temperature Sensor 0-10V Sensor connections Ref EE161 Switch Positions TP508 Three Position Rotary Switch... -
Page 13: Wiring Diagrams
Wiring Diagrams Any of these switch arrangements can be used in switch inputs SW1 to SW3 depending on their con guration and the type of MVHR. 1 2 3 Volt-free boost switching of MVHR using single- TP506 Latching Summer Mode switch / pole switches TP502, TP503, TP507 and / or TP522 Latching SUMMERboost®... -
Page 14: Duct Heater
Duct Heater Using the factory fitted PCB it is possible to control an external mains operated duct heater to pre-warm the incoming fresh air supply. During periods of cold weather, this reduces the possibility of ice build-up within the unit by raising the temperature of the incoming supply air. -
Page 15: Connection To Mains
Connection to Mains All wiring must conform to current I.E.E. Wiring Regulations and all applicable national standards and Building Regulations. The installation MUST be carried out by a suitably qualified competent person. Duct Heater 7 6 5 L1 L2 L3 N 2 Pole Fuse Isolator... -
Page 16: Commissioning
Commissioning Once installation of the ducting, HRV and aurastat® is complete the ventilation system will need to be commissioned and setup. See the aurastat® HRV Controller Product Manual for how to change fan speeds and other settings. aurastat® HRV Controller Product Manual... -
Page 17: Maintenance
Maintenance Routine Maintenance All ventilation units require periodic maintenance. Routine maintenance, apart from filter changes, must only be carried out by a suitably qualified and competent person. WARNING: The unit uses a 230V ~ supply and contains rotating mechanical parts. ISOLATE the unit from mains power supply and allow sufficient time for all moving parts to stop before undergoing any Servicing or Maintenance. -
Page 18: Filter Replacement
The aurastat® will indicate filter change required in line with the Filter Change Interval setting. Replacement Filters are available from Titon Direct. www.titondirect.co.uk Titon HRV Q Plus Filters are available in two grades G3 and G4. Filter media should be replaced like for like. -
Page 19: Service Record
Service Record Serviced By Company Date Notes... - Page 20 This Product Manual must be kept in the Home Information Pack and used as a service record. Installed by: MARKETING DIVISION International House, Peartree Road, Stanway, Colchester, Essex CO3 0JL Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsales@titon.co.uk Web: www.titon.com ©2014TITON DO 5317 Iss01...
