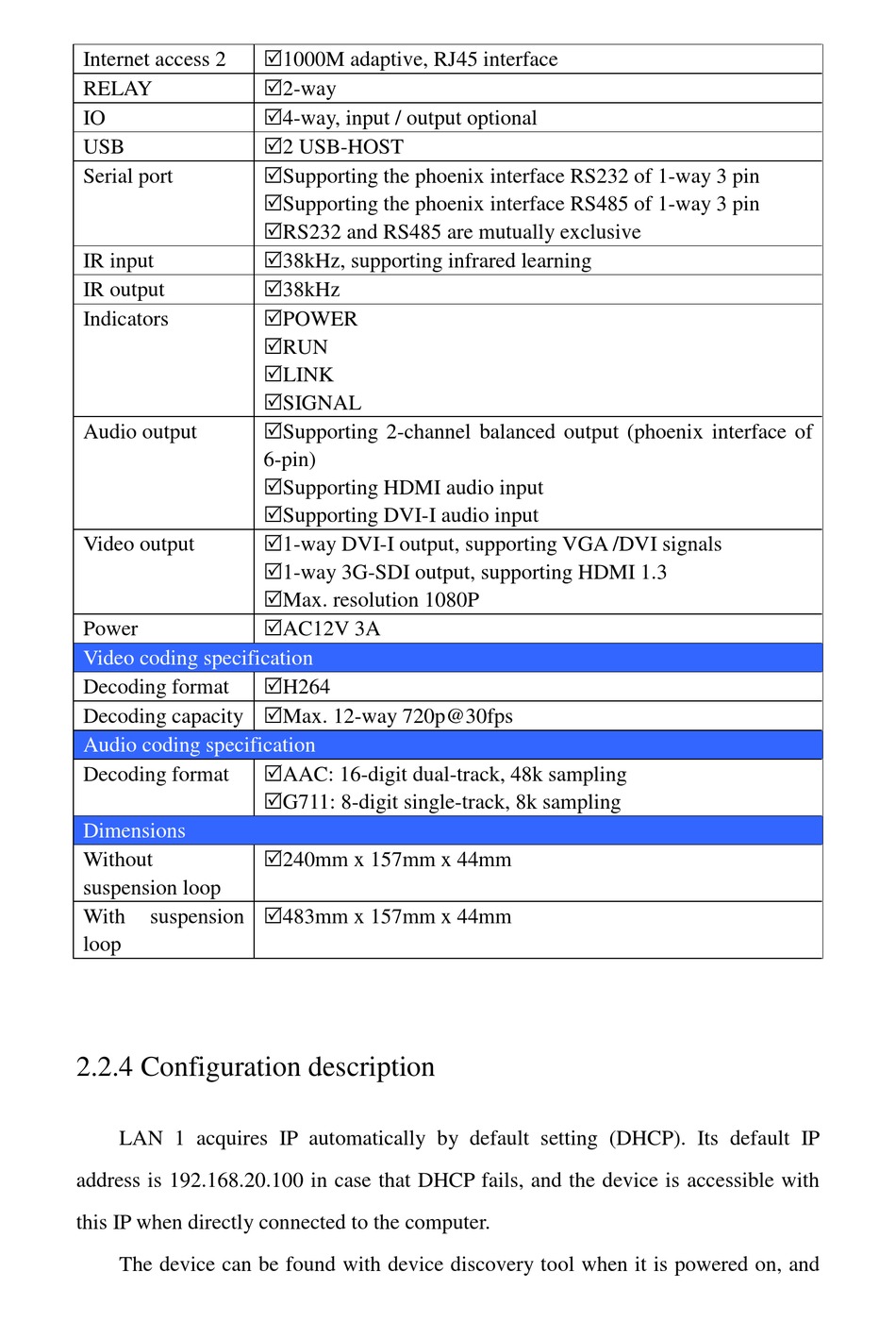

Configuration Description - TENDZONE FOUNDER-100E Manual

Internet access 2
RELAY
IO
USB
Serial port
IR input
IR output
Indicators
Audio output
Video output
Power
Video coding specification
Decoding format
Decoding capacity Max. 12-way 720p@30fps
Audio coding specification
Decoding format
Dimensions
Without
suspension loop
With suspension
loop

2.2.4 Configuration description

LAN 1 acquires IP automatically by default setting (DHCP). Its default IP
address is 192.168.20.100 in case that DHCP fails, and the device is accessible with
this IP when directly connected to the computer.
The device can be found with device discovery tool when it is powered on, and
1000M adaptive, RJ45 interface
2-way
4-way, input / output optional
2 USB-HOST
Supporting the phoenix interface RS232 of 1-way 3 pin
Supporting the phoenix interface RS485 of 1-way 3 pin
RS232 and RS485 are mutually exclusive
38kHz, supporting infrared learning
38kHz
POWER
RUN
LINK
SIGNAL
Supporting 2-channel balanced output (phoenix interface of
6-pin)
Supporting HDMI audio input
Supporting DVI-I audio input
1-way DVI-I output, supporting VGA /DVI signals
1-way 3G-SDI output, supporting HDMI 1.3
Max. resolution 1080P
AC12V 3A
H264
AAC: 16-digit dual-track, 48k sampling
G711: 8-digit single-track, 8k sampling
240mm x 157mm x 44mm
483mm x 157mm x 44mm
