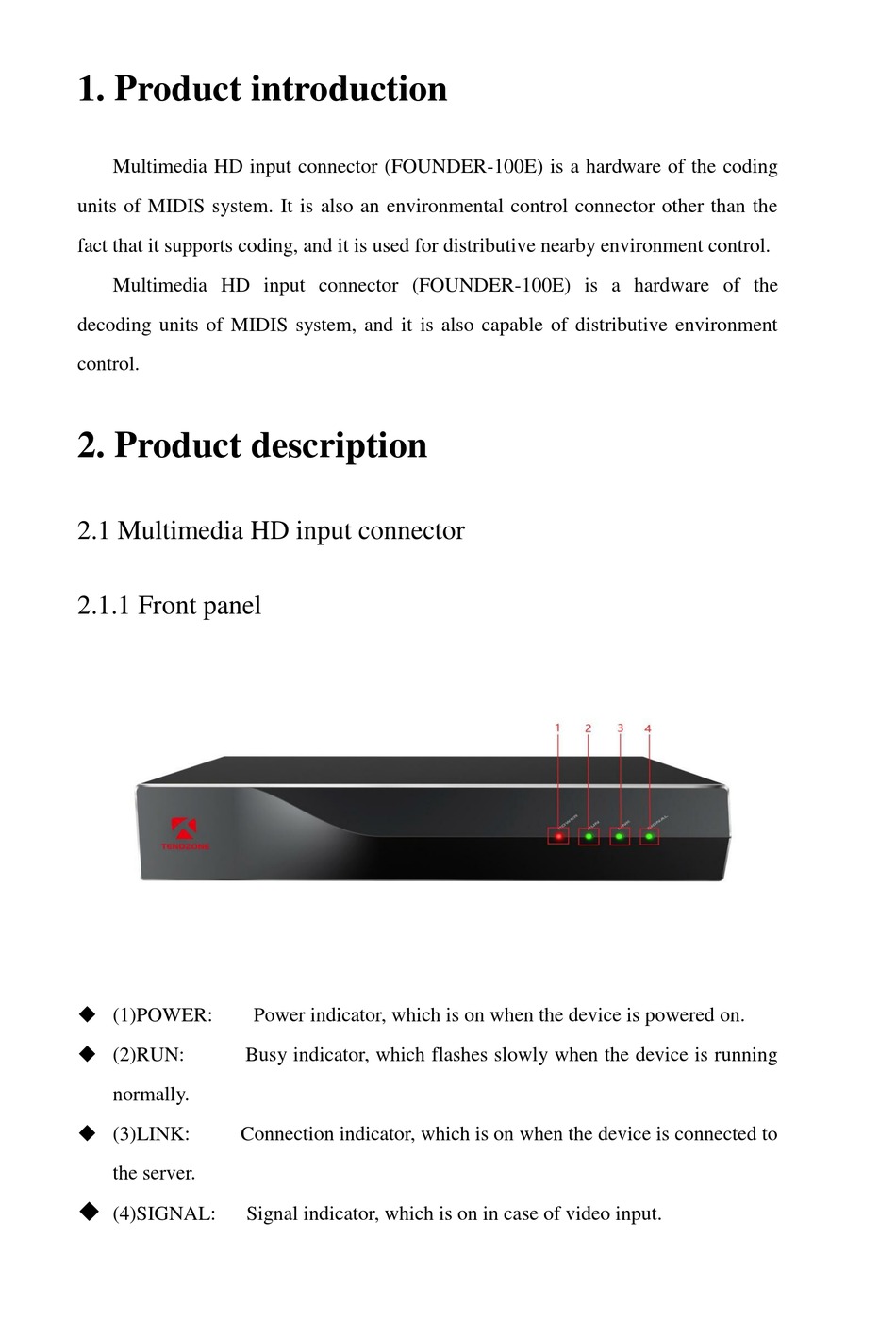

1. Product introduction

Multimedia HD input connector (FOUNDER-100E) is a hardware of the coding
units of MIDIS system. It is also an environmental control connector other than the
fact that it supports coding, and it is used for distributive nearby environment control.
Multimedia HD input connector (FOUNDER-100E) is a hardware of the
decoding units of MIDIS system, and it is also capable of distributive environment
control.

2. Product description

2.1 Multimedia HD input connector

2.1.1 Front panel

 (1)POWER:
 (2)RUN:
normally.
 (3)LINK:
the server.

(4)SIGNAL:
Power indicator, which is on when the device is powered on.
Busy indicator, which flashes slowly when the device is running
Connection indicator, which is on when the device is connected to
Signal indicator, which is on in case of video input.
