address is 192.168.20.100 in case that DHCP fails, and the device is accessible with
this IP when directly connected to the computer.
The device can be found with device discovery tool when it is powered on, and
the backstage management page (http://192.168.20.100:8080) can be viewed with the
browser.
The backstage management page supports the configuration of system
parameters, the viewing of running status and the configuration of AV interface
parameters.

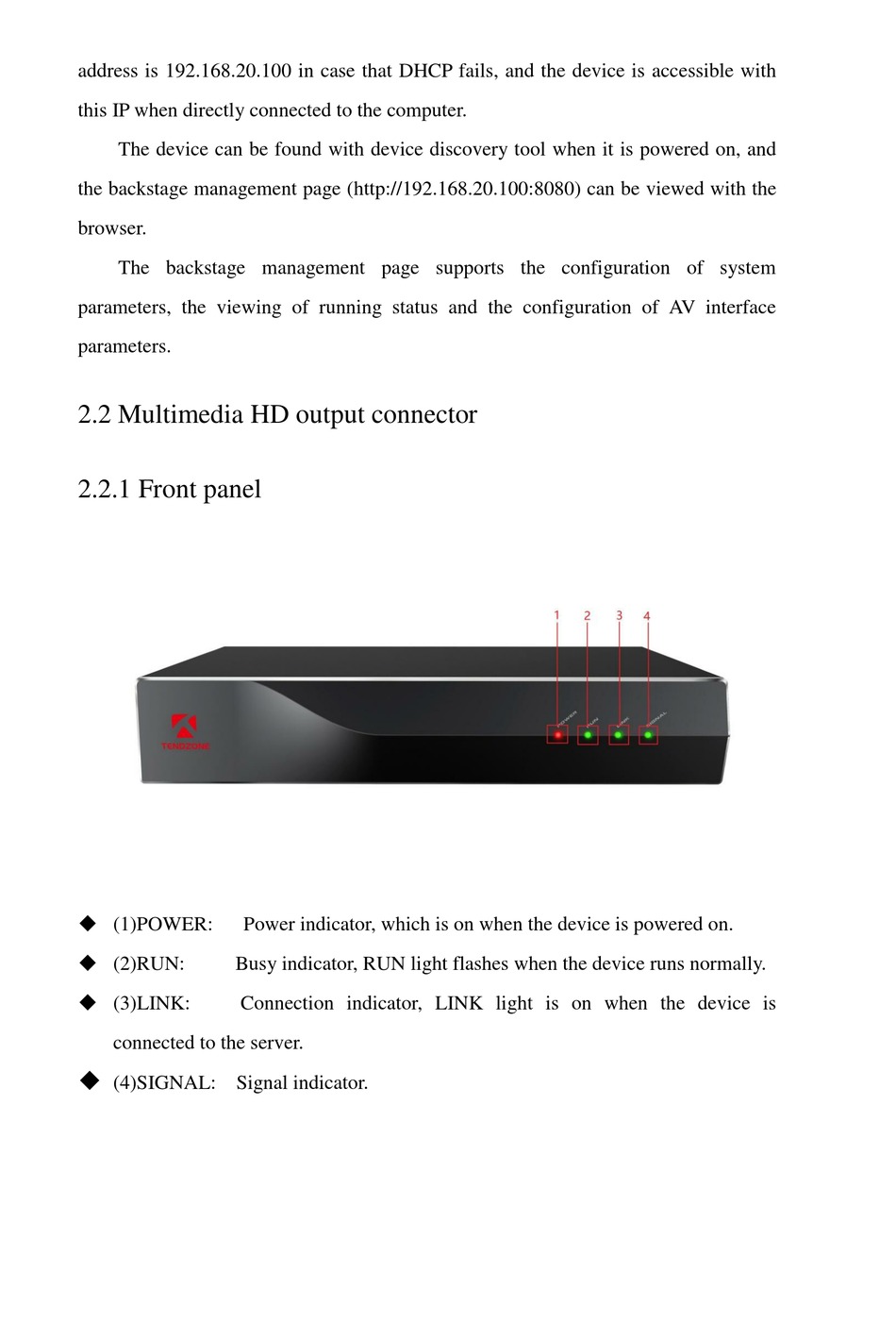

2.2 Multimedia HD output connector

2.2.1 Front panel

 (1)POWER:
 (2)RUN:
Busy indicator, RUN light flashes when the device runs normally.
 (3)LINK:
connected to the server.

(4)SIGNAL: Signal indicator.
Power indicator, which is on when the device is powered on.
Connection indicator, LINK light is on when the device is
