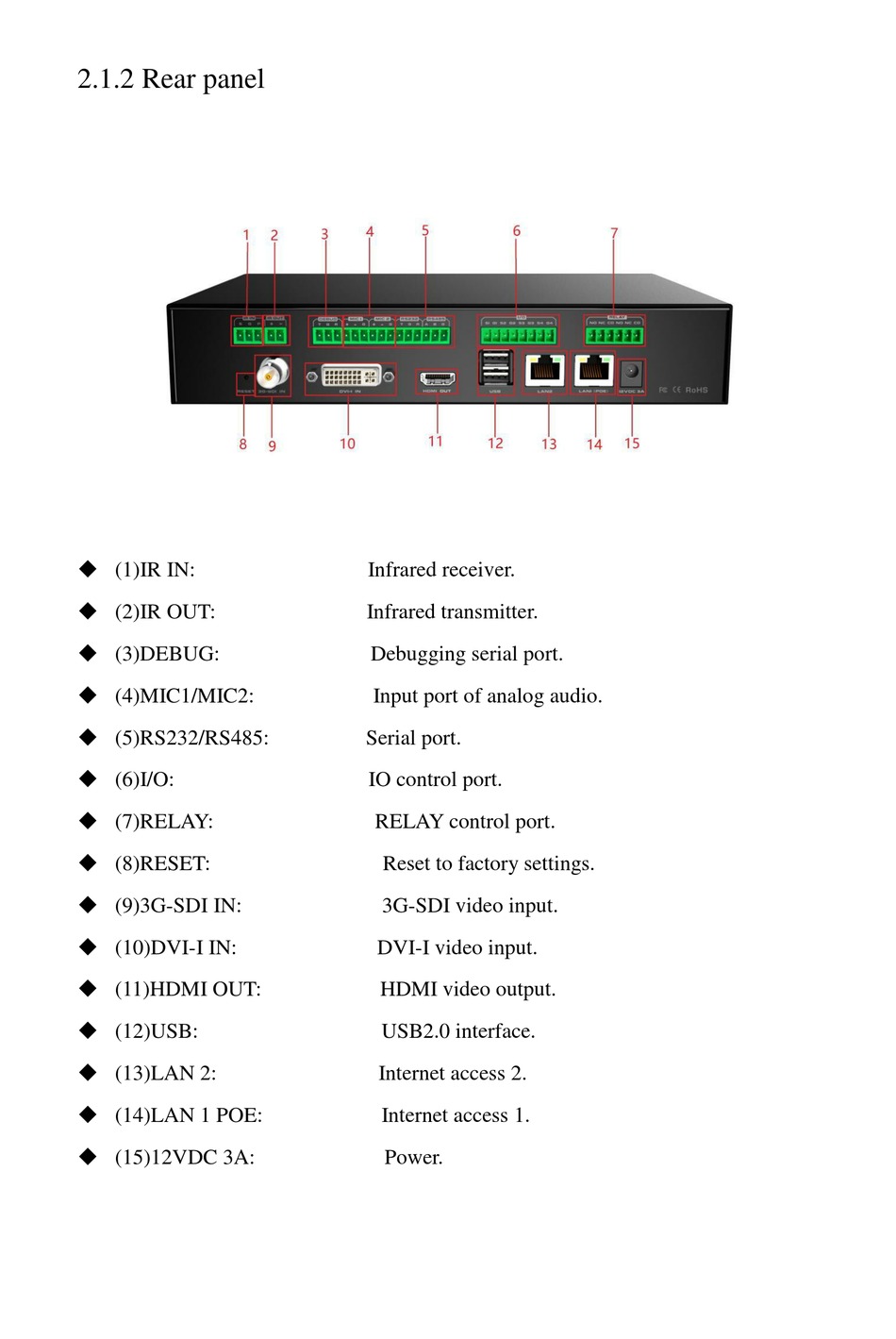

2.1.2 Rear panel

 (1)IR IN:
 (2)IR OUT:
 (3)DEBUG:
 (4)MIC1/MIC2:
 (5)RS232/RS485:
 (6)I/O:
 (7)RELAY:
 (8)RESET:
 (9)3G-SDI IN:
 (10)DVI-I IN:
 (11)HDMI OUT:
 (12)USB:
 (13)LAN 2:
 (14)LAN 1 POE:
 (15)12VDC 3A:
Infrared receiver.
Infrared transmitter.
Debugging serial port.
Input port of analog audio.
Serial port.
IO control port.
RELAY control port.
Reset to factory settings.
3G-SDI video input.
DVI-I video input.
HDMI video output.
USB2.0 interface.
Internet access 2.
Internet access 1.
Power.
