LEGRAND On Q lyriQ Instruction

LEGRAND On Q lyriQ Instruction

Studio high performance keypad

Advertisement

Quick Links

301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
1. Introduction

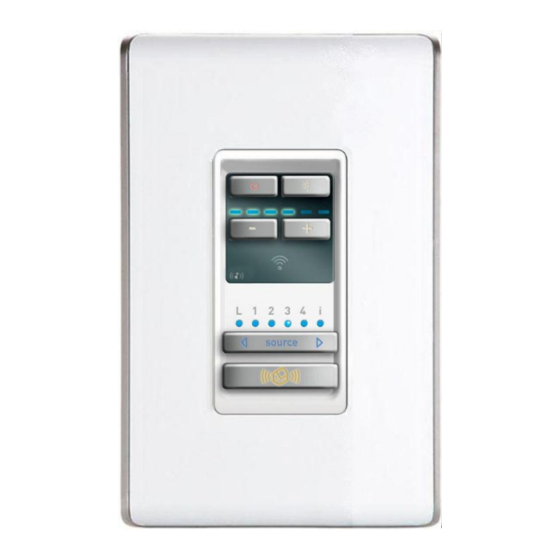

The lyriQ™ Studio High Performance Keypad, P/N AU5010-xx (see Figure 1), is
an integral part of the lyriQ™ Multi-Room Audio System. It is a component which,
when combined with other essential components (a Source Input Unit, Distribution
Module and Speakers) and your source equipment (receiver, CD player, etc.),
creates a versatile whole-house audio system that will fill your rooms with high-
quality sound for years to come. It uses Category 5 wiring to distribute audio
signals, control information and IR for remote control. The High Performance
Keypad has two on-board 20 Watt per channel class D amplifiers to provide a rich
level of clean sound even in large room applications. It also contains a full set of
features, including the ability to control all other keypad volume controls in the
house. Build a system that accommodates the needs of any space by combining
the lyriQ™ Studio High Performance Keypad with the lyriQ™ Studio Keypad (P/N
AU5009-xx) in the same system. The AU5010-xx is available in white (-WH), light
almond (-LA), titanium (-TI), or gloss black (-GB).
2. Description
The front panel of the lyriQ™ Studio High Performance Keypad, PN AU5010-xx (see
Figure 1), looks almost identical to the standard lyriQ™ Studio Keypad (AU5009-xx). It
also has push buttons for STANDBY (backlit with red LED when in Standby Mode), for
MUTE (backlit with red LEDs, when Mute function is selected), VOLUME UP/DOWN
(with six associated blue Volume Bar Graph LEDs), SOURCE SELECT (with six blue
Source Selection LEDs), and WHOLE HOUSE (backlit with white LEDs when not
selected and with flashing blue/white LEDs when Whole House function is selected).
There is also an IR target window. The visual cue from the front panel that this is a
High Performance Volume Control are the parenthesis surrounding the music note on
the lower left corner of the display area.
NOTE: lyriQ™ Keypads are recommended for indoor use only.
On the rear of the lyriQ™ Studio High Performance Keypad (see Figure 2) the Category
5 connection is an RJ45 jack (J1). The TB2 speaker output connections (left and right,
plus and minus) are spring loaded and designed to support up to 14 gauge wire. The TB3
Line Out connections (plus and minus) are also spring loaded and designed to support up
to 14 gauge wire. This mono-summed output is designed for powered sub-woofers and
as such is filtered through an 80Hz low pass filter. The other terminal block on the rear
(TB1) is used for powering the keypad. Up to 14 gauge speaker wire may be used for this
purpose, and this speaker wire (two or four conductor) is run from a power distribution
module (P/N AU1001) in the enclosure to the Keypad. We recommend 16/4 speaker
wire, since it is available paired with Category 5 from a variety of sources. Again, the TB1
connections are spring loaded (plus and minus) with the two plus connections on the red
portion of TB1 and the two minus connections on the black portion of TB1. For ease of
installation, connect the red wire and white wire to the red (plus) portion of TB1 and the
black and green wire to the black (minus) portion of TB1.
©Copyright 2009 by On-Q/Legrand All Rights Reserved.
INSTRUCTION/INSTALLATION SHEET
lyriQ™ Studio High Performance
Keypad
IS-0425 REV. A

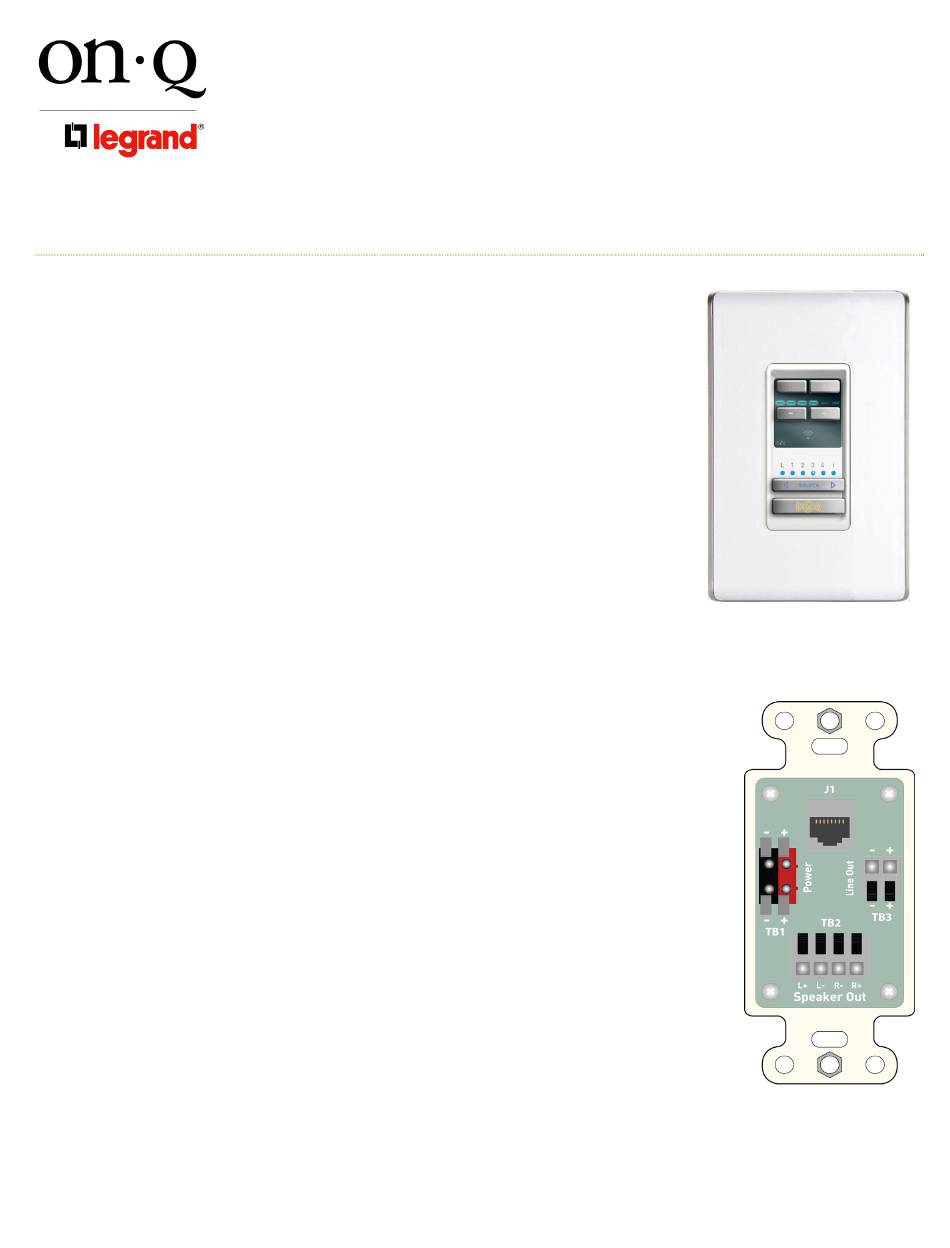

Figure 1
Figure 2
Page 1 of 8
