Keypad with joystick and LCD display
4 306 03
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 306 03 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND 4 306 03

Summary of Contents for LEGRAND 4 306 03

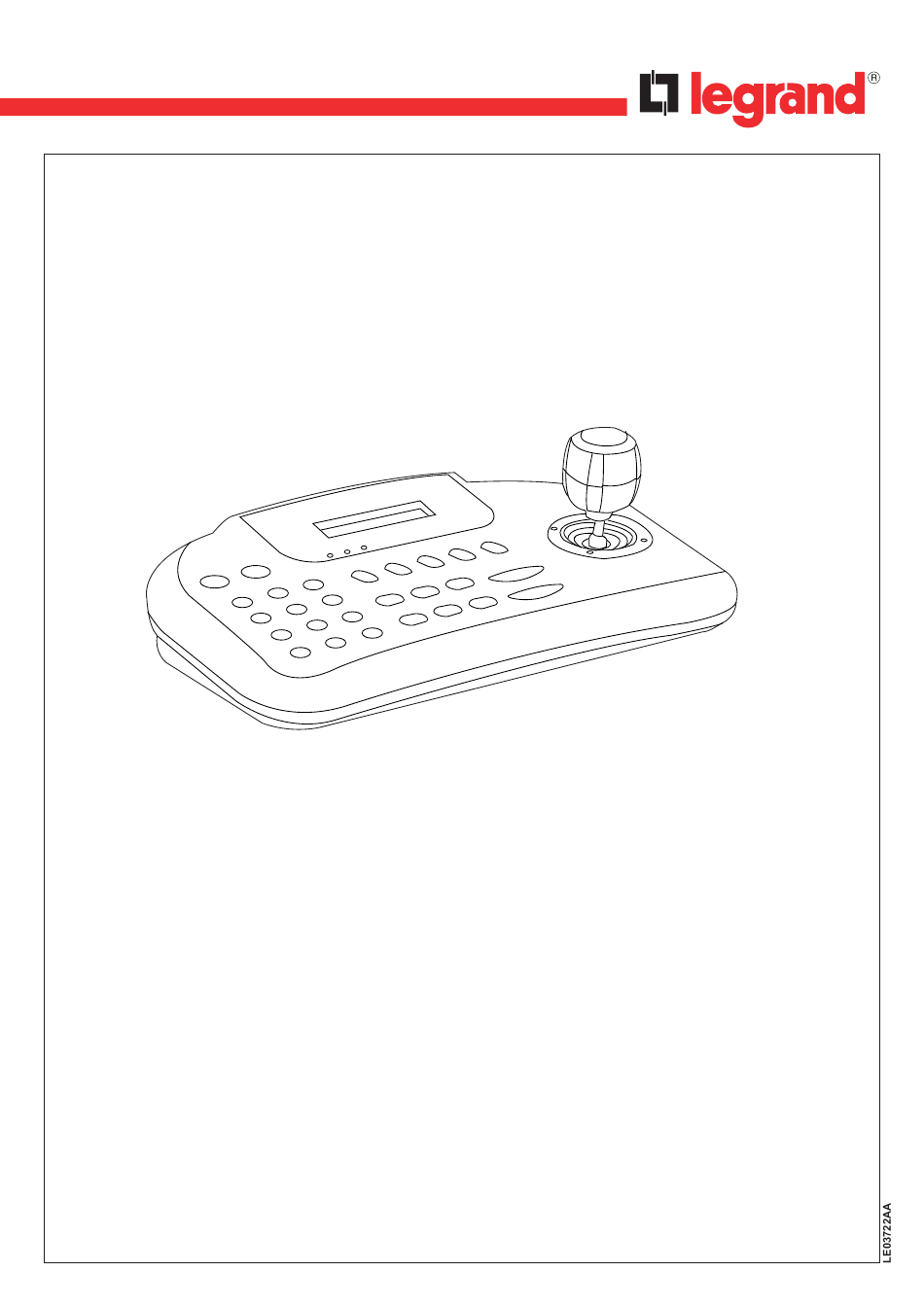

  • Page 1 • Keypad with joystick and LCD display 4 306 03 USER MANUAL...

  • Page 2: Table Of Contents

    Before carrying out the installation, read the instructions and take account of the product’s specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand.
  • Page 3 IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS 9. CORD AND CABLE PROTECTION Read the instruction manual before operating the Route power cords and cables in a manner to protect equipment. them from damage by being walked on or pinched by Retain the manual for future reference.

  • Page 4: Introduction

    INTRODUCTION This remote keyboard is an accessory for PTZ dome camera, etc It allows the user to control from 1 to 255 cameras. 1. Features • Controls from 1 to 255 cameras. • Multiple protocol supported in each channel (CMT, WDS,WCY, CYN, WSL, Pelco). • RS 485/RS-422 communication (Tx : 3 port , Trx :1 port).
  • Page 5 Number Button Description ESC / POWER Pressing the ESC/POWER button enters the Power on/off or escape key. Right description led on(red). Pressing it again exits the POWER OFF . (Push the button (about 2~3 seconds) and then POWER OFF) DISPLAY LCD Displays Camera ID, Protocol, Function status, General status, Number Camera ID setting value change, PTZ setup(1+...
  • Page 6 Figure 2 Number Button Description Joystick Telemetry Joystick allows precise control of Pan/Tilt/Zoom DV 12V Input DC 12V Input, 140mA Universal Serial Bus Port, USB Mouse function (External Equipment communication port) Not used for Bticino range. USB PORT RS-485/RS-422 communications. (Tx/Rx : 3 port , Trx :1 port) RS-485 Program Download connector (For Program Update)

  • Page 7: System Configuration And Wiring

    3. System Configuration and Wiring Basic Installation Use the Keyboard Configuration when only one keyboard is connected to the controlled units. Connect the RS-485 output port of Remote keyboard to RS-485 input port of the first controlled unit using the terminal block...

  • Page 8: System Installation & Typical Applications

    SYSTEM INSTALLATION & TYPICAL APPLICATIONS 1. System Installation Keyboard Installation Before you start connecting the keyboard equipment to your system, make sure the units to be controlled are completely installed and everything is working correctly. Before use of this keyboard, you should set the protocol and baud rate (2.4~57.6kbps) in the PTZ SETUP mode.

  • Page 9: Main Setup

    3. MAIN SETUP MAIN SETUP Main Setup mode, select 2+ (2~3 seconds). Setup screen allows you to make change in each programmable clause. Note: The baud rate must be the same between the controlled unit and the keyboard. : Input password (Factory set : 0000) : Shows software version Shows software date Title setting when power on...

  • Page 10: Joystick Calibration

    [MAIN SETUP] : OFF/ON Select ON if there are more than 1 speed dome 10. TERMINATE : ON (the last one has its terminal switch ON). : Select the time between 2 orders when the keyboard has to re- [MAIN SETUP] peat one (300 ms).

  • Page 11: Basic Functions : Setting And Control

    5. BASIC FUNCTIONS : SETTING AND CONTROL PRESET User can set the camera positions that have to be repeated automatically. 1+PSET 3+PSET 1+PSET 3+PSET 2+PSET 2+PSET PSET PSET PSET PRESET : PRESET NO. + 3sec PSET setting PRESET : PRESET NO. + 3sec PRESET : PRESET NO.
  • Page 12 • Tour Operating : 1+PSET 3+PSET TOUR 2+PSET TOUR TOUR : TOUR NO. + 3 sec To exit from tour function, press key when the camera is fixed. TOUR : TOUR NO. + 1sec TOUR PATTERN Camera memorizes the path (mostly curve path) by the controller joystick for an assigned time and revives the path exactly ` as it was memorized.

  • Page 13: Specifications

    • Scan setting: - Press the key for more than 3 seconds, OSD menu will appear. PATT PATT PATTERN : PATTERN NO. + 3sec 3+PSET PATTERN : PATTERN NO. + 1sec PATT - Go to Dome Camera Setup + PSET O.
