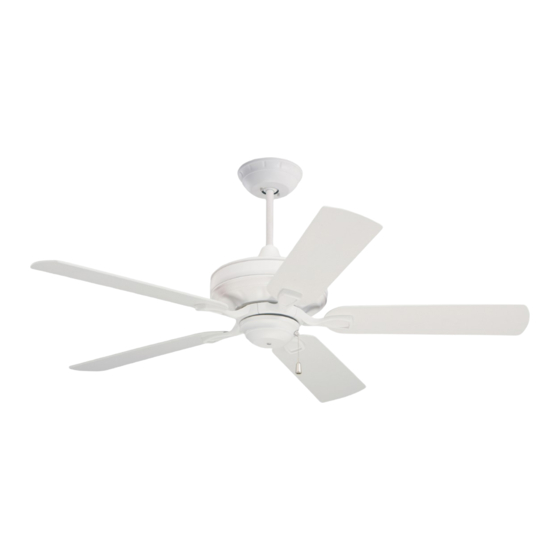

42" & 52" Ceiling Fan Owner's Manual
42" Model Numbers
CF442ORB00
Oil Rubbed Bronze
CF442SW00
Satin White
Net Weight:
Questions, problems, missing parts: Before returning to the store, Call Customer Service
Part No. F40BP75860000
Revision: 02052021
BELLA
16.9
Lbs.
1-800-777-4440
52" Model Numbers
CF452BS00
Brushed Steel
CF452ORB00
Oil Rubbed Bronze
CF452SW00
Satin White
CF452VS00
Vintage Steel
20.5
Net Weight:
Lbs.
Form No. BP7586
U.L. Model No.: CF442 & CF452
Advertisement
Table of Contents
Related Manuals for Luminance Brands Kathy Ireland Home BELLA CF442ORB00
Summary of Contents for Luminance Brands Kathy Ireland Home BELLA CF442ORB00
- Page 1 READ AND SAVE THESE INSTRUCTIONS BELLA 42” & 52” Ceiling Fan Owner’s Manual 42” Model Numbers 52” Model Numbers CF442ORB00 CF452BS00 Oil Rubbed Bronze Brushed Steel CF452ORB00 CF442SW00 Oil Rubbed Bronze Satin White CF452SW00 16.9 Satin White Net Weight: Lbs. CF452VS00 Vintage Steel 20.5...
-
Page 2: Table Of Contents
Electrical installation should be made or by Luminance Brands could result in personal injury approved by a licensed electrician. or property damage. To reduce the risk of personal injury, do not bend the blades during installation, balancing the blades or cleaning the fan. -
Page 3: Unpacking Instructions
Luminance Brands. Substitution of parts or Hanger Ball/4.5” Downrod Assembly accessories not designated for use with this product by Luminance Brands could result in personal injury Switch Housing Assembly or property damage. 1. Check to see that you have received the following... -
Page 4: Electrical Requirements
1. Unpacking Instructions (continued) This Manual Is Designed to Make it as Easy as Possible for You to Assemble, Install, Operate and Maintain Your Ceiling Fan Tools Needed for Assembly WARNING One Phillips head screwdriver Before assembling your ceiling fan, refer to section One stepladder on proper method of wiring your fan (page 9). -
Page 5: Ceiling Fan Assembly
3. Ceiling Fan Assembly 1. Rotate the motor hub to align the hub motor area SWITCH over each of the five shipping retainers . One by one HOUSING unscrew each of the five screws and discard screws ADAPTER and shipping retainers (Figure 1) . 2. - Page 6 3. Ceiling Fan Assembly (continued) 5. Remove and retain the three switch housing mounting screws (Figure 4) from the switch housing SWITCH HOUSING plate . Engage the connector of the switch housing ASSEMBLY assembly with the motor connector (Figure 4) . The two connectors are keyed and color-coded and must be mated correctly (color-to-color) before they can be engaged .
- Page 7 3. Ceiling Fan Assembly (continued) NOTE: The setscrews must be properly installed as described above, or fan wobble could result. MOTOR COUPLING SETSCREW WARNING HAIRPIN CLEVIS PIN CLIP It is critical that the clevis pin in the motor coupling is properly installed and the setscrews securely tightened.
-
Page 8: How To Hang Your Ceiling Fan
4. How to Hang Your Ceiling Fan CAUTION CEILING To reduce the risk of injury, install the fan so that the blades are at least 7 ft. (2.1m) above the floor (Figure 10). AT LEAST WARNING Turning off wall switch is not sufficient. To avoid Figure 10 possible electrical shock, be sure electricity is turned FLOOR... -
Page 9: How To Wire Your Ceiling Fan
. Securely connect wires with wire Figure 13 connectors supplied (Figure 13) . NOTE: If you are using an Luminance Brands Light Fixture with your fan, see Light Fixture Owner’s Manual for wiring. 2. Securely connect the fan motor white wire to the supply white (neutral) wire using wire connector supplied (Figure 13) . -
Page 10: Using Your Ceiling Fan
6. Using Your Ceiling Fan Restore Electrical Power to the Outlet Box by turning the Electricity on at the Main Fuse Box . During Summer Months, run the Fan Counter- Clockwise, as you look up at it, to direct airflow downward . -
Page 11: Accessories
8 - 9 feet above the floor for optimal occupied space . Remember to adjust your thermostat airflow . Consult your Luminance Brands Retailer for when using your ceiling fan - additional energy and optional mounting accessories . -
Page 12: Repair Parts
10. Repair Parts U.L. Model No.: CF442 & CF452... - Page 13 10. Repair Parts Listing Part Numbers Model No. Model No. Model No. Model No. Model No. Model No. Description CF442ORB00 CF442SW00 CF452BS00 CF452ORB00 CF452SW00 CF452VS00 Hanger Ball Assembly, 761655-32 761655-92 761655-17 761655-32 761655-92 761655-93 Consisting of: Hanger Bracket (1) — —...
-
Page 14: Troubleshooting
11. Troubleshooting WARNING FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLESHOOTING YOUR FAN. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1 . Fuse or circuit breaker blown . 1 . Check main and branch circuit fuses or circuit breakers . -
Page 15: Ceiling Fan Limited Warranty
What We Will Do To Correct Problems: If the defect is covered by this limited warranty, Luminance Brands will repair or replace the applicable Luminance Brands Ceiling Fan Product at no charge to You. If repair of the Luminance Brands Ceiling Fan Product is not practical or possible within a reasonable time and no replacement Luminance Brands Ceiling Fan Product can be provided, Luminance Brands will refund You the actual purchase price of Your Luminance Brands Ceiling Fan Product. - Page 16 SERIAL NUMBER: DATE CODE: The serial number of this fan can be found on the nameplate on top of the fan housing . The date code can be found on the carton, stamped in ink on a white label . You should record this data above and keep it in a safe place for future use .
