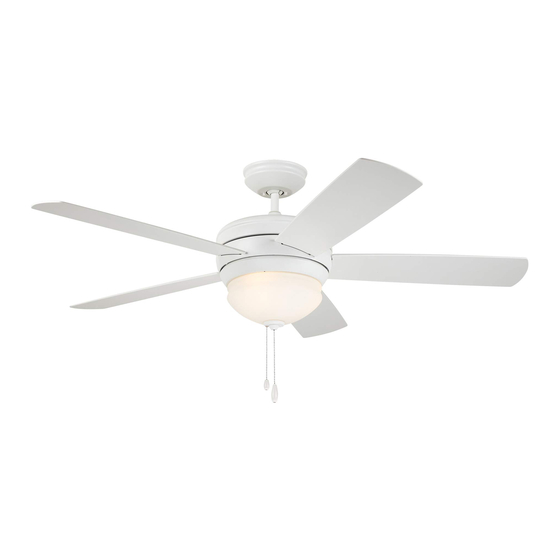

52” wet location ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ AND SAVE THESE INSTRUCTIONS
SUMMERHAVEN LED
52" Wet Location Ceiling Fan
CF850GES01 -
CF850SW01 -
CF850VNB01 -
Questions, problems, missing parts: Before returning to the store, Call Customer Service
Part No. F40BP74430003
Revision: 05262021
Owner's Manual
Model Numbers
Satin White
23.8
Net Weight:
1-800-777-4440
Golden Espresso
Venetian Bronze
Lbs.
Form No. BP7443-3
U.L. Model No.: CF850

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the kathy ireland HOME Summerhaven LED CF850GES01 and is the answer not in the manual?

Questions and answers

Related Manuals for Luminance Brands kathy ireland HOME Summerhaven LED CF850GES01

Summary of Contents for Luminance Brands kathy ireland HOME Summerhaven LED CF850GES01

  • Page 1 READ AND SAVE THESE INSTRUCTIONS SUMMERHAVEN LED 52” Wet Location Ceiling Fan Owner’s Manual Model Numbers CF850GES01 - Golden Espresso CF850SW01 - Satin White CF850VNB01 - Venetian Bronze 23.8 Net Weight: Lbs. Questions, problems, missing parts: Before returning to the store, Call Customer Service 1-800-777-4440 Part No.

  • Page 2: Table Of Contents

    Local Codes do not exist. The ceiling fan must be accessories not designated for use with this product grounded as a precaution against possible electrical by Luminance Brands could result in personal injury shock. Electrical installation should be made or or property damage.

  • Page 3: Unpacking Instructions

    Luminance Brands. Substitution of parts or 5.5-Watt Candelabra LED Light Bulbs accessories not designated for use with this product Hanger Bracket by Luminance Brands could result in personal injury or property damage. Hanger Ball / 4.5” Downrod Assembly Fan Blade Support Plates...

  • Page 4: Electrical Requirements

    1. Unpacking Instructions (Continued) THIS FAN IS SUITABLE FOR WET LOCATIONS SUCH AS PORCHES, PATIOS, AND DECKS. USE ONLY WITH LIGHT KITS MARKED SUITABLE FOR USE IN WET LOCATIONS. This Manual Is Designed to Make it as Easy as Possible for You to Assemble, Install, Operate and Maintain Your Ceiling Fan Tools Needed for Assembly WARNING...

  • Page 5: Ceiling Fan Assembly

    3. Ceiling Fan Assembly MOTOR HOUSING Remove and discard the Two Cardboard Shipping ASSEMBLY Retainers securing the Motor Hub in the Motor Housing Assembly (Figure 1) . CARDBOARD SHIPPING Figure 1 RETAINERS (2) GREEN GROUND WIRE Remove the Hanger Ball from the 4 .5” Downrod by loosening the Set Screw in the Hanger Ball until the Ball falls freely down the Downrod (Figure 2) .
  • Page 6 3. Ceiling Fan Assembly (continued) 4.5" DOWNROD MOTOR LOOSEN PHILLIPS COUPLER HEAD SETSCREWS (2) Figure 4 HAIRPIN Install the Clevis Pin and secure with the Hairpin Clip CLIP (Figure 5) . CLEVIS CLEVIS The Clevis Pin must go through the Motor Coupler Holes .
  • Page 7 3. Ceiling Fan Assembly (continued) While pulling up on the 4 .5” Downrod, retighten the Two Set Screws (previously loosened) in the Motor Coupler to secure the Downrod into place (Figure 6) . RETIGHTEN TWO NOTE: The set screws must be properly installed as MOTOR PHILLIPS HEAD described above, or fan wobble could result.
  • Page 8 3. Ceiling Fan Assembly (continued) Route the Two 80” Motor Leads through the Hanger DOWNROD Ball . HANGER BALL PIN HANGER BALL HANGER BALL Reinstall the Hanger Ball (Figure 9) on the Downrod as GROOVE CEILING follows: COVER Position the Hanger Ball Pin through the two Holes in the Downrod and align the Ball so the Pin is captured in the Groove in the top of the Hanger Ball .

  • Page 9: How To Hang Your Ceiling Fan

    4. How to Hang Your Ceiling Fan CAUTION CEILING To reduce the risk of injury, install the fan so that the blades are at least 7 ft. (2.1m) above the floor (Figure 11). WARNING Turning off wall switch is not sufficient. To avoid LEAST possible electrical shock, be sure electricity is turned off at the main fuse box or circuit breaker panel before...
  • Page 10 4. How to Hang Your Ceiling Fan (continued) Securely attach the Hanger Bracket to the Outlet Box using the Two Screws supplied with the Outlet Box (Figure 13) . OUTLET WARNING Hanger bracket must seat firmly against outlet box. If the outlet box is recessed, remove wall board until bracket contacts box.

  • Page 11: How To Wire Your Ceiling Fan

    Local codes and the ceiling fan must be properly or property damage. grounded as a precaution against possible electrical shock. NOTE: If you are using an Luminance Brands Light Fixture with your Fan, see Light Fixture Owner’s Manual for wiring. SUPPLY WHITE...
  • Page 12 5. How to Wire Your Ceiling Fan (continued) Securely connect the Fan Motor Black and Blue Wires to the Supply Black (hot) Wire using Wire Connector (supplied) (Figure 17) . SUPPLY BLACK (HOT) LISTED WIRE CONNECTOR FAN MOTOR BLACK & BLUE WIRES Figure 17 After Connections have been made, turn Wires upward...

  • Page 13: Final Assembly

    6. Final Assembly Screw the Two Threaded Studs (supplied) into the Tapped Holes in the Hanger Bracket (Figure 19) . THREADED STUDS (2) Figure 19 NOTE: SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY. Lift the Ceiling Cover up to the Threaded Studs and turn until Studs protrude through the Holes in the Ceiling Cover (Figure 20) .
  • Page 14 6. Final Assembly (continued) FAN BLADE Slide Blade through Center Slot in Fan Housing . Position One Blade Support Plate onto Blade . SLIDE FAN BLADE Mount Blade to Fan Housing using One Blade Support INTO CENTER SLOT Plate and secure using Three #10 - 24 x 15mm Washer Head Blade Screws (supplied) (Figure 21) .
  • Page 15 6. Final Assembly (continued) Engage the Light Kit Assembly Connector to the Motor Connector (Figure 24) . The Two Connectors are Keyed and Color-Coded and must be mated correctly (color-to-color) before they can be engaged . Make sure the Connector Latch closes properly .
  • Page 16 6. Final Assembly (continued) Screw Three 5 .5-Watt Candelabra LED Light Bulbs (supplied) into the Light Kit Assembly Sockets (Figure 27) . 5.5-WATT CANDELABRA LIGHT KIT LED LIGHT BULBS (3) SOCKETS (3) Figure 27 6.10 Unscrew the Finial Nut, Bowl Cap, Hex Jamnut and Rubber Washer from the Light Kit Threaded Nipple (Figure 28) .

  • Page 17: Using Your Ceiling Fan

    7. Using Your Ceiling Fan Check the operation of the Fan by gently pulling on the Pull Chain Switch (off-center pull chain) . Cut the 3-speed switch pull chain to a desired length (optional) . Connect the Small Wood Pendant (supplied) to the 3-speed switch center Pull Chain by sliding the Wood Pendant (small hole first) onto the Pull Chain (Figure 29) .

  • Page 18: Maintenance

    • Downrod Extension Kits by Luminance Brands. Substitution of parts or accessories not designated for use with this product by Luminance Brands could result in personal injury WARNING or property damage. The use of any other control not specifically approved for this fan could result in fire, shock and personal injury.

  • Page 19: Troubleshooting

    11. Troubleshooting WARNING FOR YOUR OWN SAFETY TURN OFF POWER AT MAIN FUSE BOX OR CIRCUIT BREAKER PANEL BEFORE TROUBLESHOOTING YOUR FAN. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1 . Fuse or circuit breaker blown . 1 .

  • Page 20: Repair Parts

    12. Repair Parts PARTS BAG U.L. Model No.: CF850...
  • Page 21 12. Repair Parts Listing Part Numbers Model Number Model Number Model Number Description CF850GES01 CF850SW01 CF850VNB01 Hanger Pack Consisting of: 761655-35 761655-92 761655-89 Hanger Bracket Assembly (1) — — — Hanger Ball (1) — — — Downrod, 4.5” (1) — —...
  • Page 22 Notes U.L. Model No.: CF850...

  • Page 23: Ceiling Fan Limited Warranty

    What We Will Do To Correct Problems: If the defect is covered by this limited warranty, Luminance Brands will repair or replace the applicable Luminance Brands Ceiling Fan Product at no charge to You. If repair of the Luminance Brands Ceiling Fan Product is not practical or possible within a reasonable time and no replacement Luminance Brands Ceiling Fan Product can be provided, Luminance Brands will refund You the actual purchase price of Your Luminance Brands Ceiling Fan Product.
  • Page 24 SERIAL NUMBER: DATE CODE: The serial number of this fan can be found on the nameplate on top of the fan housing. The date code can be found on the carton and on top of the fan housing, stamped in ink on a white label. You should record this data above and keep it in a safe place for future use.
