Tumle dryer ASKO T780

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T780 and is the answer not in the manual?

Questions and answers

Related Manuals for Asko T780

Summary of Contents for Asko T780

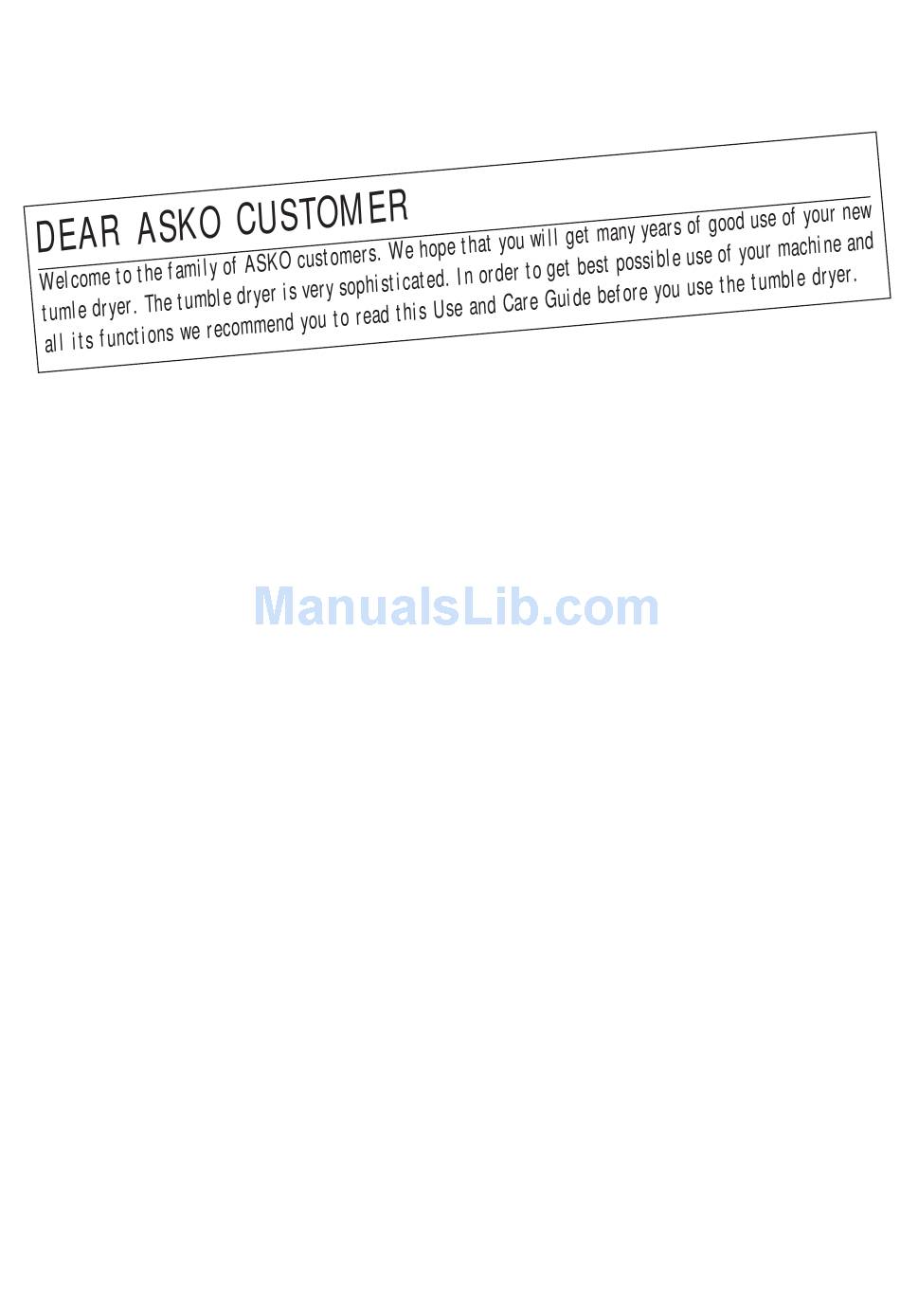

  • Page 1 Tumle dryer ASKO T780...

  • Page 2: Table Of Contents

    CONTENTS READ FIRST 1 Before tumble drying the first time 2 Safety instructions General. Installation. Safety. Interrup- ting a program. Transport/Winter sto- rage. Packing material. Disposal. 3 Children’s safety General. General. Child lock on Start and Menu buttons. 4 Parts of the dryer 5 Panel 6 LC Display INSTALLATION...

  • Page 3: Safety Instructions

    1 BEFORE TUMBLE DRYING THE FIRST TIME READ THE OPERATING INSTRUCTIONS Please read through this Use and Care Guide before attempting to use the machine, particu- larly Chapter 2, Safety instructions, and 3, Children’s safety. DO NOT TUMBLE-DRY Some fabrics are sensitive to tumble drying. Check the Recommended washing marking on the items concerned, and study Chapter 7, Be- fore tumble drying.

  • Page 4: Safety Instructions

    2 SAFETY INSTRUCTIONS GENERAL • Study and save this Use and Care Guide for future reference. • Electrical installation, if required, must be carried out by an authorized electrician. • The machine may only be used for tumble drying in accordance with this Use and Care Guide.

  • Page 5: Children's Safety

    3 CHILDREN’S SAFETY GENERAL Do not allow children to play with the tumble dryer. The tumble dryer is fitted with a magnetic catch, which allows the door to be opened from the inside. The door is equipped with a switch, which automatically stops the tumble dryer when the door is opened.

  • Page 7: Parts Of The Dryer

    4 PARTS OF THE TUMBLE DRYER 1. FLUFF-FILTER HOLDER 2. DATA PLATE 3. CONDENSATION WATER CONTAINER 4. PANEL 5. OUTER DOOR 6. INTERIOR LIGHTING (ON THE INSIDE) 7. FAN (BEHIND THE LOWER COVER) 8. CONDENSER (BEHIND THE LOWER COVER) 9. LINT FILTER...

  • Page 8: Panel

    5 PANEL 1. CONDENSATION WATER CONTAINER 2. INDICATION LAMP ON/OFF 3. MAIN POWER SWITCH 4. PROGRAM SELECTION BUTTON P1 5. PROGRAM SELECTION BUTTON P2 6. PROGRAM SELECTION BUTTON P3 7. PROGRAM SELECTION BUTTON P4 6 LC-DISPLAY 1. TEXT FIELD, SHOWING PROGRAM, OPTIONS, ERROR MESSAGES, ETC.

  • Page 9: Before Tumble Drying

    7 BEFORE TUMBLE DRYING Before you start tumble drying, here is some advice that can be useful. SPIN-DRIED? Items that are to be tumble dried should first be spin-dried, preferably at 800 revs per minute or more. Better spin drying saves both energy and drying time.
  • Page 10 Dry, Normal dry These programs turn off the heat when the wash- ing is dry, but not bone-dry. The Dry program turns off the heat a little later than Normal dry. Choose what you prefer by trial and error. Use these programs when you want dry fabrics.

  • Page 11: Drying Time

    TEMPERATURE You can choose temperature Normal or Low, see chapter 10, Making own drying programs. DRYING TIME Drying time depends on many factors, such as the amount of washing, how damp it is, the type of fabrics, rated power of the machine and the temperature and humidity of the input air.

  • Page 12: Tumble Dry

    8 TUMBLE DRY PRESS THE -BUTTON The display will then show the four pre-set pro- grams. If no button is pressed within three minu- tes the display will go out. The display will light again when one of the buttons is pressed. If the language on the display is wrong for any reason, it can be restored to the right lang- uage again.
  • Page 13 START TUMBLE DRYING Press the button. The text at the lower edge of the dis- play indicates that the program has started. The text field of the display shows the current stage of the program while it is in progress. The remaining drying time is approximately calculated within four minutes after the pro- gram is started.
  • Page 14 will be displayed in the text field. Empty the container and press the button and the program will continue from where it was inter- rupted, see also Chapter 12, Trouble shooting, heading Fault indications. NOTE Do not pull out the condensation water contai- ner while the machine is running.

  • Page 16: Consumption Values - Pre-Set Drying Programs

    Humidity of intake air: Drying temperature: Element power: The cotton fabrics are, before tumble drying, spin-dried at 800 and 1600 rpm (long spin) with ASKO washing machine. Other fabrics (creasfree and acrylics) are, before tumble drying, spin-dried at 800 rpm (short spin) with ASKO washing machine.

  • Page 17: Making Own Drying Programs

    10 MAKING OWN DRYING PROGRAMS You can make your own programs that perhaps suit your requirements better than the four pre- set programs. It is always possible to restore the initial pre- set programs. See the heading at the end of this chapter, Restoring pre-set programs.

  • Page 19: Select Initial Program. Programs

    1 - SELECT INITIAL PROGRAM Begin by choosing one of the pre-set drying programs. 1. Press the button of the program you wish to alter, ie, 2 - PROGRAMS The programs that you can choose from are the following: Extra dry - This program is for washing that is extremely difficult to dry, eg, jeans with very thick seams.

  • Page 20: Delayed Start

    Buzzer If you choose Buzzer ON, a signal will sound for three seconds as the drying program ends. 1. With the buttons select Buzzer ON or OFF. 2. Press the button once to acknowledge Enter and save your choice. You will now come automatically to sub-heading: Anti-crease program In this program the drum will continue to rota-...
  • Page 21 The basic settings under this heading will thus remain unchanged. NOTE This applies to menu headings. If you are in any of the option headings you will go to the next menu heading, ie, Temperature. RESTORING PRE-SET DRYING PROGRAMS You can always restore the four pre-set drying programs.
  • Page 22 IN THIS TABLE YOU CAN SUITABLY FILL IN THE SETTINGS YOU HAVE MADE IN YOUR OWN PROGRAMS.

  • Page 23: Care And Cleaning

    11 CARE AND CLEANING CLEANING THE LINT FILTER Clean the lint filter after each tumble drying operation. If your water is very hard a deposit of lime may be formed on the filter. Check when clea- ning lint from the filter if there is any sign of lime, if so wash the lint filter by hand to remove any deposits.

  • Page 24: Cleaning The Fan

    CLEANING THE FAN The fan should be cleaned at least once a year. If you have any household pets the fan must be cleaned more often. 1. Turn off the main power switch. 2. Remove the lower cover. 3. Unscrew the safety screw(1), fold out the four lugs(2) and take off the fan cover.

  • Page 25: Cleaning The Condenser

    CLEANING THE CONDENSER The condenser should be cleaned at least three times a year. . If you have any household pets the condenser must be cleaned more often. 1. Turn off the main power switch. 2. Remove the lower cover. 3.

  • Page 26: Trouble Shooting

    12 TROUBLE SHOOTING THE MACHINE WILL NOT START Check that: • The door is properly closed. • The main switch is pressed in. • You have correctly set the required program or the required time in the timed dry program. •...

  • Page 27: Wrong Language On The Display

    ning. If condensation water is pumped out di- rect to the drain, check to ensure there are no kinks or stoppage in the hose. If this does not help, phone for service. Sensor fault. Fault in the moisture sensor. This error message can also appear if you should start the dryer when it contains dry items or when it is empty.

  • Page 28: Technical Information

    13 TECHNICAL INFORMATION TECHNICAL DATA Height: Width: Depth: Weight: Drum volume: Drying capacity: Speed: Rated power: Material: Cylinder and water container Material: Outer cover Positioning: Drain Interior light: STANDARD TESTS Australia: Drying performance and energy declaration: Procedure for acoustic measurement: 850 mm 595 mm 585 mm...

  • Page 29: Service And Guarantee

    See chapter 12, Trouble shoo- ting. If you do require service, telephone your lo- cal ASKO retailer or the ASKO representative for your country. See guarantee card for address and telephone number. GUARANTEE...

  • Page 30: Quick Guide

    15 QUICK GUIDE 1. Sort the washing. 2. Press the main switch ON, Open the door and load the garments. 3. Select a program. The machine has four pre-set drying programs , see table. Press the button for the desired program. If you have made your own drying program and included in it a Timed dry program or Air fluff program, you can easily alter the program...

  • Page 31: Index

    16 INDEX Chapter Acetate 7,15 Acrylate 7,8,15 After tumble drying 8,15 Airing program 7,10 Altering settings Anti-crease program 7,8,10 Before tumble drying the first time Before tumble drying Belts Change program after starting 8 Children’s safety Child safety start Cold ironing Coloured washing Condensation water con- tainer...
  • Page 32 Art. No. 80 638 48 Rev. 01. The right to make changes is reserved. Printed on environment friendly paper.
