Pamex GC4400 Series Installation Instruction Sheet

PUSH SIDE MOUNTED (PARALLEL ARM) D.S

Standard Installation

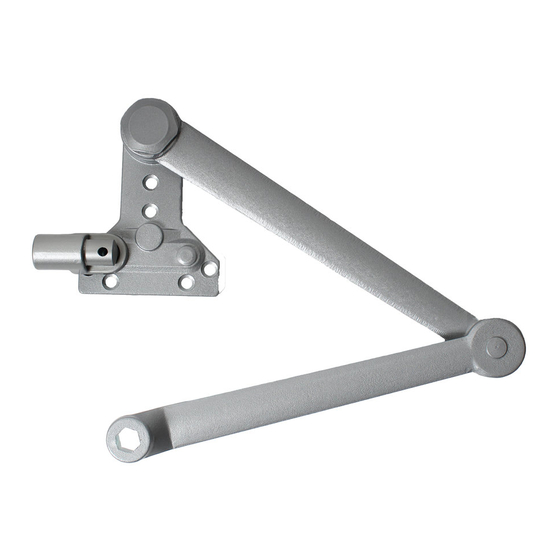

GCNSA440 ‐ Cush‐N‐Stop Arm for GC4400
GHCHA440 ‐ Handle Control Hold Open Arm for GC4400

GENERAL NOTES

GC4400 SERIES closer is non handed and designed to meet
entrance accessibility requirements. Before installation ,
detemine hand of door first . Refer to the drawing (right).
GC4400 SERIES closer can be adjusted to handle all exterior
doors up to 48" and interior doors up to 60" wide. Adjust the
spring power as shown before installing the closer. Turn the
spring adjustment nut clockwise or counter-clockwise the
required number of turns to match door width as indicated in
chart below.
MAXIMUM
DOOR WIDTH
INTERIOR
EXTERIOR
DOORS
DOORS
5 Turns C.C.W
5lb-1*
8.5lb-1*
2 Turns C.C.W
34"
30" 38"
36" 48"
10 Turns C.W
42" 54"
48" 15 Turns C.W
60"
* Opening Force on 36" Door.
IMPORTANT-When adjusting spring power , DO NOT
exceed the maximum number of turns in either
direction! Beyond either maximum number of turns
may damage closer.
INSTALLATION & INSTRUCTION SHEET
FULL
TURNS
REQUIRED
0Turns
C.W
5 Turns C.W
To increase
spring power
Install on Drop Plate
To decrease
spring power
C.C.W
-
+
GC4400 SERIES
DOOR CLOSER
HOW TO TELL
HAND OF DOOR
OUTSIDE
RIGHT HAND
LEFT HAND
DOOR
DOOR
CLOSER CONTROL DIAGRAM
BACKCHECK
MAIN SPEED
LATCH SPEED
