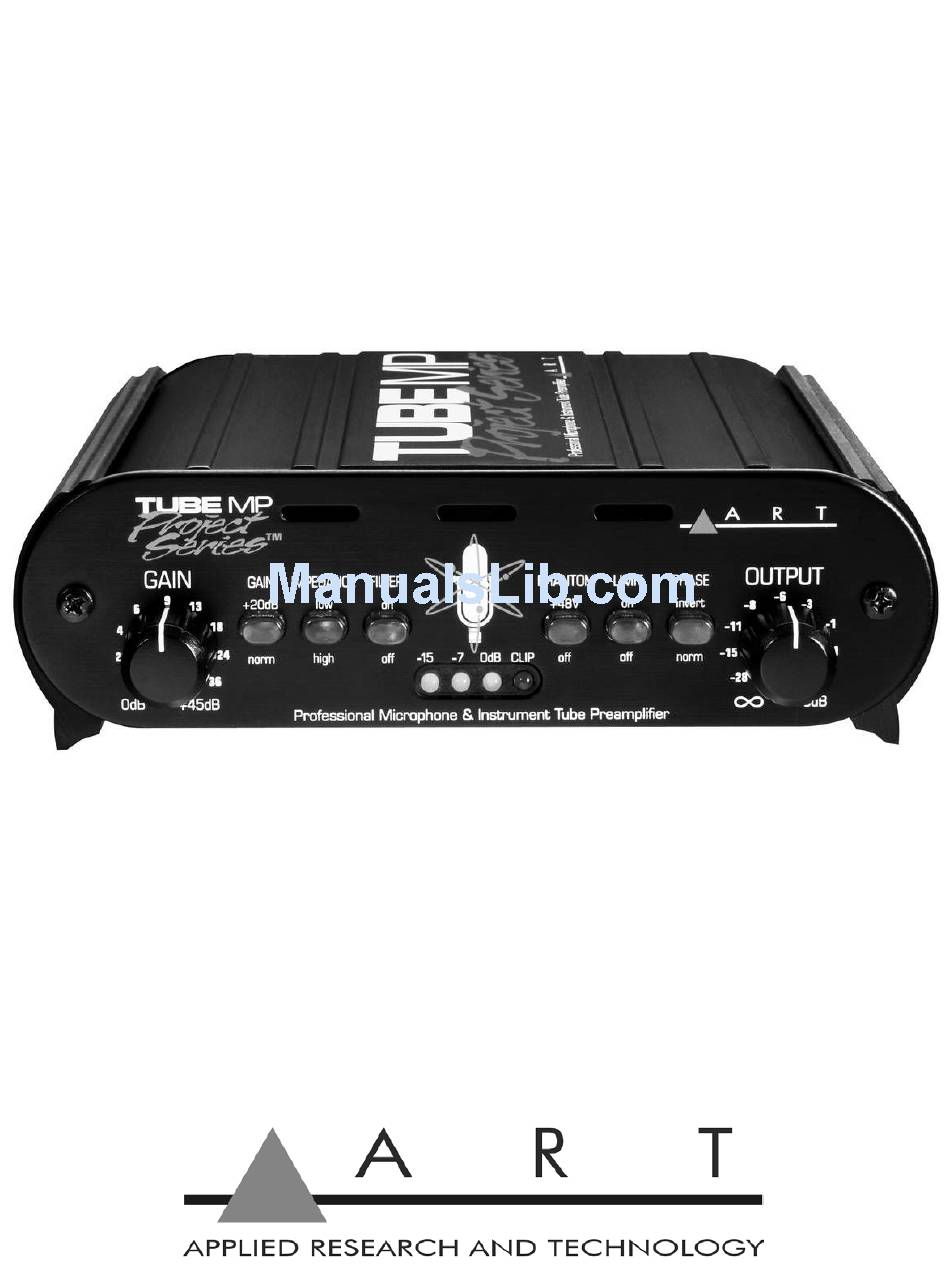

- Page 1 TUBE MP Project Series User’s Manual...
-
Page 3: Important Safety Instruction - Read First
IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock. Read instructions: Retain these safety and operating instructions for future reference. Heed all warnings printed here and on the equipment. - Page 4 This hybrid design is the latest in a long line of ART tube preamps. We took our legendary Tube MP series and updated every aspect of the design, inside and out, while still maintaining a compact, reliable, and cost effective product.
- Page 5 CONNECTIONS: The female XLR Input jack is used primarily for balanced microphone input. Pin 2 is positive, pin 3 is negative, and pin 1 is ground. +48 Volt phantom power is supplied thru pins 2 and 3. If you are using the XLR input with a balanced line level signal or a microphone that does not require phantom power, make sure that phantom power is turned off.
-
Page 6: Controls And Operation
CONTROLS and OPERATION: The Gain Control directly adjusts the input amplifiers giving you control over the dynamic range of your source. You get a 45dB range of control when using the XLR input and a 25dB range when using the ¼” input. Set the control counterclockwise to minimum gain when connecting the inputs. The Gain Switch gives you an additional 20dB of gain between the input stage and the tube to bring up very low-level signals and allow you to drive the tube harder. - Page 7 A brief note from customer service: Once in a while a customer will call and say: I think my ART preamp is "noisy". What's wrong? If you experience unwanted "noise" in your system when you use a stand-alone preamp, please consider what your signal is and where you're sending it.
- Page 8 Most conventional mixers utilize budget minded micro- phone preamps and while very functional, they do not sound all that great. The Tube MP PS serves as a quality upgrade that will give you more flexibility and a more robust tone than the standard preamps.
-
Page 9: Warranty Information
WARRANTY INFORMATION: Limited Warranty Applied Research and Technology will provide warranty and service for this unit in accordance with the follow- ing warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the compo- nents thereof will be free from defects in workmanship and materials for a period of one year from the date of purchase. -
Page 10: Specifications
Signal Metering: Tube Type: Chassis Type: Power Requirements: Dimensions: Weight: ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice. 10Hz –40kHz (+0, -1dB) >100dB (20Hz to 20kHz) <0.05% (typical) >60dB (typical) -130dB (XLR to XLR ‘A’ weighted) +16dBu (XLR) +17dBu (1/4”) - Page 12 APPLIED RESEARCH & TECHNOLOGY 215 TREMONT STREET ROCHESTER, NEW YORK 14608 USA (585) 436-2720 – Voice (585) 436-3942 – Fax www.artproaudio.com E-mail: cserve@artproaudio.com Tube MP Project Series 180-5004-100...
