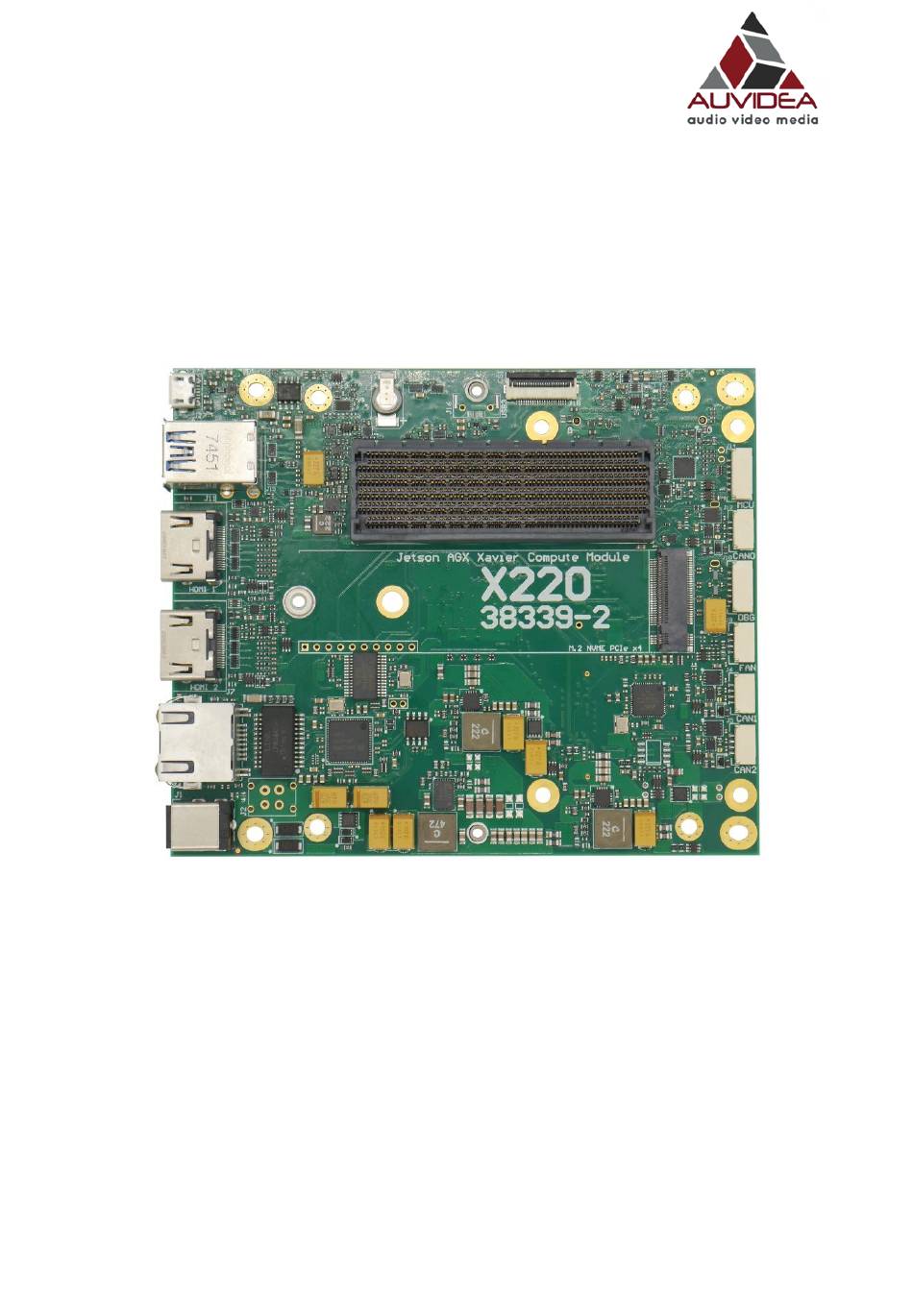

- Page 1 VERSION 0.9 X220 (38339-X) X220 technical reference manual 38339-X Version 0.9 Preliminary April 2020 Auvidea GmbH Kellerberg 3 D-86920 Denklingen Tel: +49 8243 7714 622 info@auvidea.com www.auvidea.com AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
-
Page 2: Copyright Notice
For any other mode of sharing, please contact the author at the email below. info@auvidea.com Commercial use and distribution of the contents of this document is not allowed without express and prior written consent of Auvidea GmbH. -
Page 3: Technical Details
• M.2 key M 2280 NVME PCIe x4 • size: 125mm x 104,6mm (size of the PCB with all components) • mounting: 4 holes with 3.2mm each • model: 38339 Power • power in: 12V AUVIDEA GMBH TECHNICAL REFERENCE MANUAL... - Page 4 - 38391: dev kit camera module and 2x GbE (i210 - JST-GH) - 38392: dev kit camera module, 1x GbE (i210 - JST-GH) and mini UPS controller (supercaps) X220 This new X220 carrier board turns the Jetson AGX Xavier compute module into a super mini computer. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
-
Page 5: Pinout Description
CAN0 (J12): This is a 4 pin JST-GH connector with 1.25mm pitch. Function Description 5V power for the CAN bus (500 mA) CAN0_H CAN data high (with 120 Ohm termination) CAN0_L CAN data low Ground AUVIDEA GMBH TECHNICAL REFERENCE MANUAL... - Page 6 USB 2.0 port for firmware upgrades and for USB 2.0 devices like mouse and keyboard. New revisions feature a parallel connected JST-GH connector on the bottom side. Function Description 5V power controlled by USB0_EN_OC* (A17) - max. 500 mA USB0-D- USB 2.0 data / USB2_D_N USB0-D+ USB 2.0 data / USB2_D_P Ground AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 7 CSI-A_D1+ CSI0_D1_P CSI-A_D1- CSI0_D1_N Ground CSI-A_D0+ CSI0_D0_P CSI-A_D0- CSI0_D0_N Ground Ethernet (J1) The X220 features an on-board RJ45 connector for 10/100/1000BT Ethernet with 2 LEDs. Function Description GBE0 GBE_LINK_ACT* left LED GBE1 GBE_LINK_100 right LED AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 8 HDMI data lane 2 Ground HDMI_DP2_TXD2- HDMI data lane 2 HDMI_DP2_TXD3+ HDMI data lane 3 Ground HDMI_DP2_TXD3- HDMI data lane 3 HDMI_CEC RSVD reserved pin DP1_AUX_CH2+ DP1_AUX_CH2- Ground 5V power (max. 500 mA) inverted and connected to DP1_HPD AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 9 UART 2 console port (3.3V TTL level): transmit data output / SWCLK SWCLK (to flash the MCU) UART2_RXD / UART 2 console port (3.3V TTL level): receive data input / SWDIO SWDIO Ground UART1 is optionally tunnelled through the micro controller (MCU). Default: hardware bypass. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 10 PWM control to the fan (open drain output: controlled by FAN_PWM and „disable fan“ with GPIO19 - F2) Extension Port (J20) This is a 80 pin board to board connector with 1.25 mm pitch. You need a extra add on module to use several features. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 11 UART0 (J25) This is a 6 pin connector with 1.25 mm pitch. Function GPIO Description 5.0V 5.0V power supply UART0_TXD UART0_TXD 1.8V UART0_RXD UART0_RXD 1.8V UART0_RTS UART0_RTS 1.8V UART0_CTS UART0_CTS Ground CSI-2 extension port (J28) AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 12 3 + Ground USB2 (J34) This is a 4 pin JST-GH connector with 1.25 mm pitch. Function GPIO Description 5V power in D1_N data lane 1 - D1_P data lane 1 + Ground AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 13 M.2 type M 2280 (J15) M.2 connector for NVMe cards. Form factor: 2230, 2242, 2260 or 2280 (22 x 80 mm) Interface: four PCIe lanes for top performance (no SATA support) Recommended: Samsung EVO 960 ands 970 modules. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 14 - added 2 CSI-2 busses for a total of 16 lanes to J28 - added 4th I2C bus to J28 (1.8V) - added PD circuit to front GbE RJ45 port - added PoE PD 2230 or 2242 NVME card for the X220 https://www.sandisk.com/content/dam/sandisk-main/en_us/assets/resources/data-sheets/Western-Digital- PC-SN520-Commercial-Datasheet.pdf AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 15 VERSION 0.9 X220 (38339-X) AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 16 VERSION 0.9 X220 (38339-X) to be added. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 17 Thank you for reading this manual. If you have found any typos or errors in this document, please let us know. This is the preliminary version of this data sheet. Please treat all specifications with caution as there may be any typos or errors. The Auvidea Team AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
