7.2. using the cPRO camin
with cforce motors
7.2.1.
• mount the cPRO camin on the camera using e.g the cPRO camin bracket
(please refer to the cPRO camin manual)
• mount the cforce motors on the 15mm /19mm support rod. But, do not engage with
the lens (please refer to the cforce motor manual)
Note: Up to 4 cforce motors can be daisy-chained using LCB cables from one motor to the
next.
• connect the cPRO camin with the first cforce motor using a LCB cable
(e.g. cable LCB-A)
• connect the last cforce motor in the daisy-chain to the D-Tap power source using
cable LPS-7.
• for camera data and run/stop control, connect the corresponding camera interface
cable to the camera and the CAM connector on the cPRO camin.
7.2.2.
7.2.2.1.
• turn on the cPRO / cPRO PLUS / cPRO ONE hand unit by pressing the HOME button
select the same RF channel on the cPRO / cPRO PLUS / cPRO ONE hand unit and
•
the cPRO camin
• cPRO / cPRO PLUS / cPRO ONE hand unit: double press the HOME button to
enter the adjustment menu; go to MAIN / RADIO / Channel to change the
RF channel (0-13)
• cPRO camin: press the lower or upper button to change the RF channel (0-13) up
or down
Note: The RF connection will be established automatically
All content © 2020, cmotion GmbH. All specifications are subject to change without further notice.
http://www.cmotion.eu

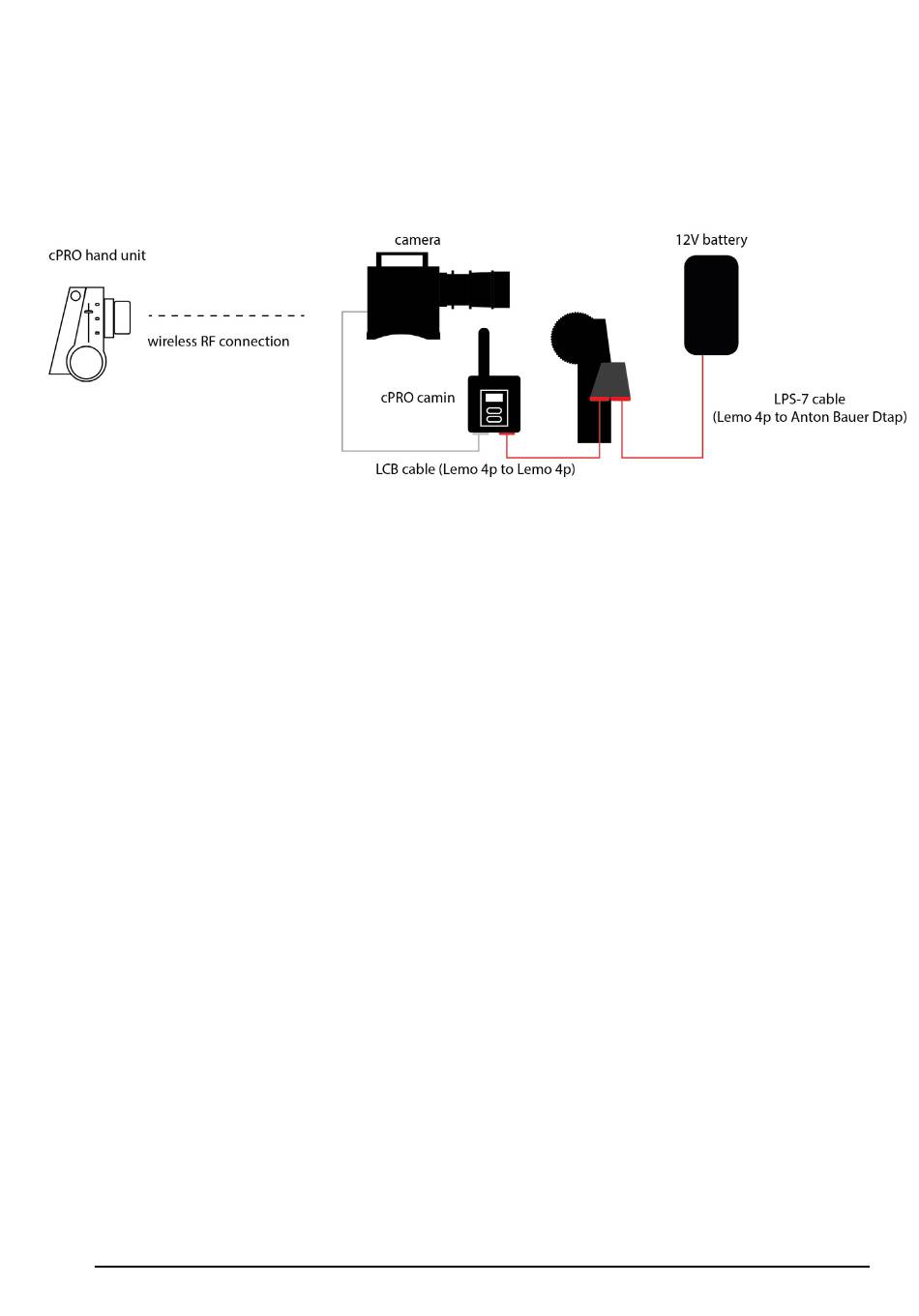

Mounting and connecting cables:
